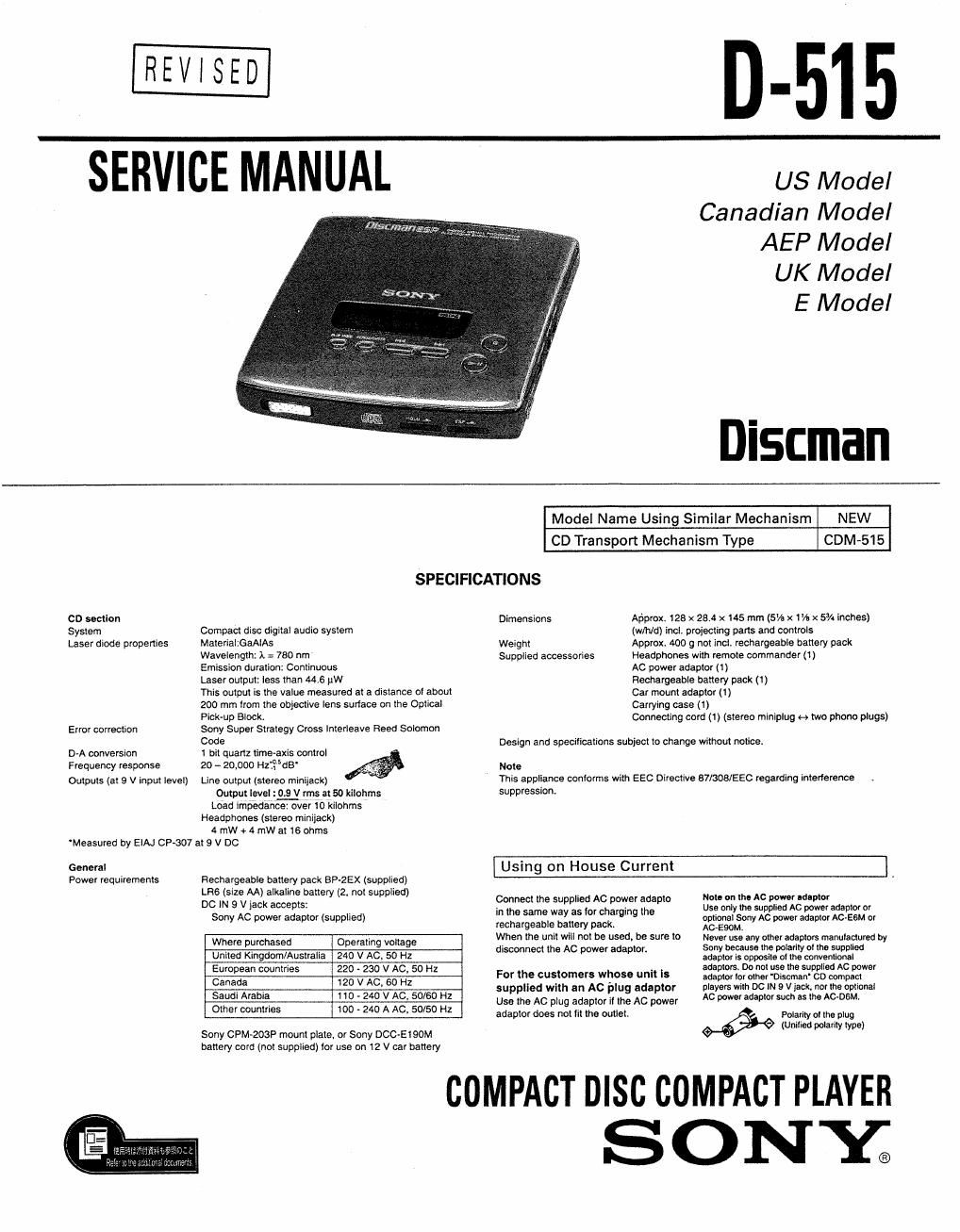

Page 1
REVISED
D-515
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
Discman
Model Name Using Similar Mechanism NEW
CD Transport Mechanism Type CDM-515
SPECIFICATIONS
(:0 section Dimensions Approx 128 x 28.4 x 145 mm (5% x 1% x 53/4 inches)
System Compact disc digital audio system (w/nld) incl. projecting parts and controls
Laser diode properties MaterialzeaAIAs Weight Approx 400 9 not incl, rechargeable battery pack
Wavelength: A = 780 nm Supplied accessories Headphones with remote commander (1)
Emission duration: Continuous AC power adaptor (1)
Laser output: less than 44.6 uW Rechargeable battery pack (1)
This output is the value measured at a distance of about Car mount adaptor (t)
200 mm train the objective lens surface on the Optical Carrying case (1)
Pick-up Block. Connecting cord (I) (stereo miniplug 4-» two phono plugs)
Error correction Sony Super Strategy Cross Interleave Reed Solomon
D-A conversion
Frequency response
Outputs (at 9 v input level)
Code
1 bit quartz time»axis control
20 - 20,000 Hzfids
Line output (stereo miniiack)
Output level: V rms at 50 kilohms
Load impede . oitilohms
Headphones (stereo miniiack)
4 mw+4rnwat isohms
'Measured by EIAJ (IF-307 at 9 V DC
General
Power requirements
Rechargeable battery pack BP-ZEX (supplied)
LR6 (size AA) alkaline battery (2. not supplied)
DO IN 9 V jack accepts:
Sony AC power adaptor (supplied)
Where purchased Operating voltage
United Kingdom/Australia 240 V AC. 50 Hz
European countries 220 - 230 V AC, 50 Hz
Canada 120 V AC, 60 Hz
Saudi Arabia I10 . 240 V AC, 50/60 HZ
Other countries 100 v 240 A Ac, 50/50 Hz
Sony CPM~203P mount plate, or Sony DOC-E190M
battery card (not supplied) tor use on t2 v car battery
Design and specifications subject to change without notice.
Note
This appliance conforms with EEC Directive B7/308/EEC regarding interlerence
suppression.
Using on House Current
Connect the supplied Ac power adapto
in the same way as lor charging the
rechargeable battery pack
When the unit will not be used, be sure to
disconnect the AC power adaptor.
For the customers whose unit Is
supplied with an Ac plug adaptor
Use the AC plug adaptor ii the AC power
adaptor does not ill the outlet
Note on the AC pow adaptor
use only the supplied AC power adaptor or
optional Sony ac power adaptor AC-EGM or
AGEQOM.
Never use any other adaptors manulactured by
Sony because the polarity ol the supplied
adaptm is opposile OI Ina conventional
adaptors. Do not use the supplied AC power
adaptor tor other 'Discmart on compact
players with DC IN 9 V iack, nor the optional
AC power adaptor such as the AGDSM,
Polarity oi the plug
(Unified polarity type)
COMPACT Disc COMPACT PLAYER
ON Y;
Page 2
D-51 5
REVISED
TABLE OF CONTENTS
Sealing 'flLe Bays
1. SERVICE NOTE 2
2. GENERAL
2-1. Location and Function of Controls ................. 3
3. DIAGRAMS
3-1. lC Pin Functions ............................................. 4
3-2. Semiconductor Lead Layouts ......................... 7
3-3. Circuit Boards Location .................................. 9
34. Printed Wiring Boards .................................... 10
3-5. Schematic Diagram . 13
3-6. Waveforms ........... 21
4. EXPLODED VIEWS
4-1. Cabinet Sectiom ............................................ 23
4-2. Cabinet Section2 ............................................ 24
4-3. Optical Pick-up Block Section ........................ 25
5 . ELECTRICAL PARTS LIST ............................ 26
For the Customers in the United Kingdom and European Countries
cuss I LASER PRODUCT as a CLASS 1 LASER product.
LUOKAN I LASERLAITE
KIASS l [ASERAPPARAT
SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA secumre'i
LES COMPOSANTS lDENTlFIES PAR UNE MAROUE A sun
LEs DIAGRAMMES SCHEMATIOUES ET LA LISTE DES PIECES
som CRITIQUES POUR LA SECURITE DE FONCTIONNE-
MENT. NE REMPLACER ses COMPOSANTS QUE PAR DES
PIECES SONY DONT LES NUMEROS SONT DONNES DANS
CE MANUEL ou DANS LES SUPPLEMENTS PUBLIES PAR
SONY.
This Compact Disc player is classified
The CLASS 1 LASER PRODUCT label
is located on the bottom exterior.
SECTION 1
SERVICE NOTE
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick»up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick«up
block. Therefore, when checking the laser diode emission, observe
from more than 30 cm away from the objective lens.
Before Replacing the Optical Pick-Up Block
Please be sure to check thoroughly the parameters as par the "Optical
Pick-Up Block Checking Procedures" (Part No. : 9-960-027-11)
issued separately before replacing the optical pick-up block.
Note and specifications required to check are given below.
- FOK output : 1c501 (9 pin
When checking FOK, remove the lead wire to disc motor and
unsolderi
o 3 curve P-to~P value : 2.5Vp-p
When checking S curve P-to~P value, remove the lead wire to disc
motor.
- Adjusted part for focus gain adjustment : RV505
- RF signal P-to-P value : 0.85 - l.45Vp~p
3 Tran/Two signal P-to-Pfivafiei: 1.5Vp-p
- The repairing grating holder is impossible.
Adjusted part for tracking gain adjustment : RVSOI
