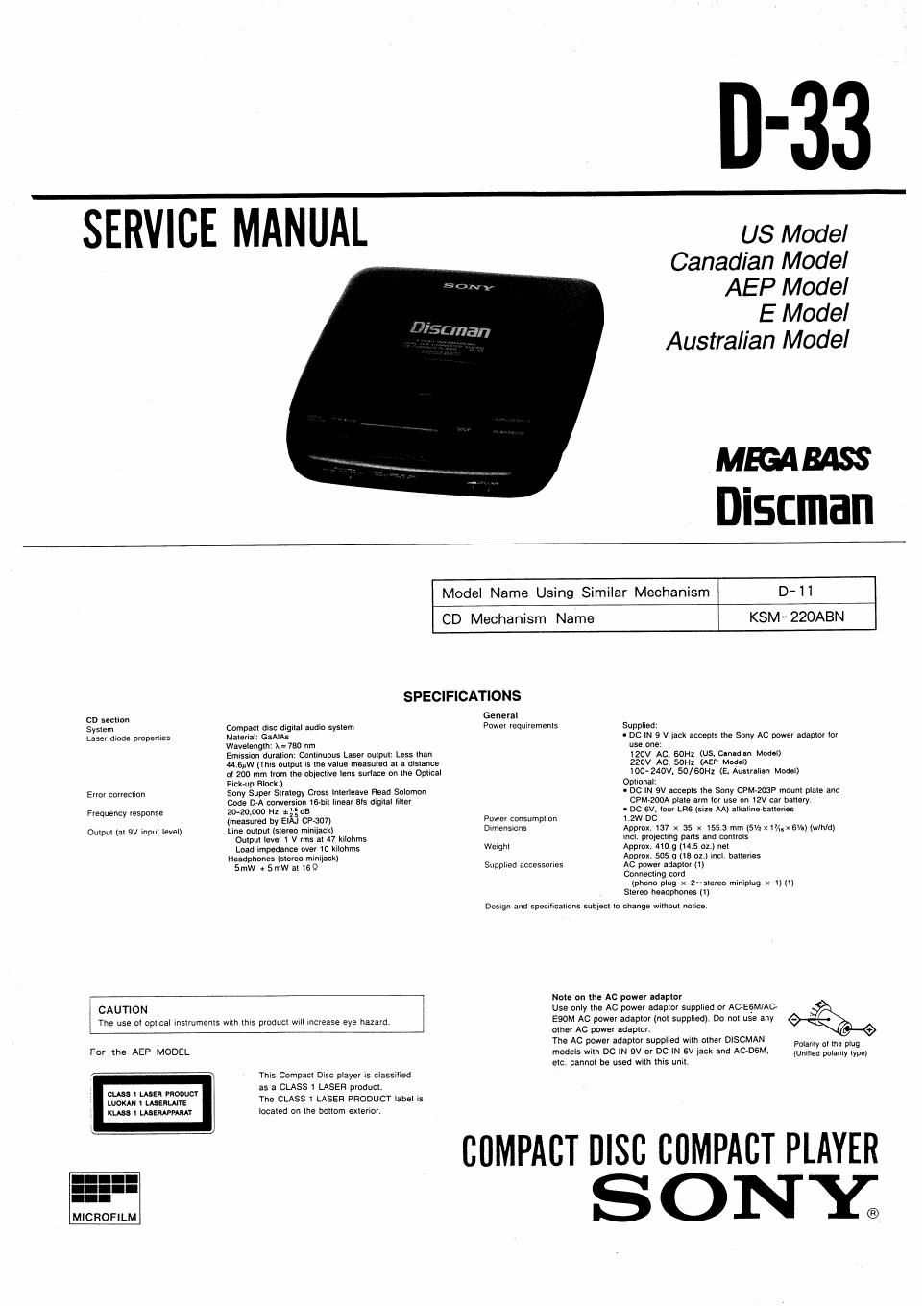

Sony d 33 service manual

Page 2

D- 33

CAUTION

Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type recommended by the equipment
manufacturer. Discard used batteries according
to manufacturer's instructions.

ADVARSEL I
LithiumbatteriiEksplosionsfare ved fejlagtig handtering,
Udskiftning ma kun ske med batteri
af samme fabrikat 0g type.

Lever det brugte batteri tilbage til leverandrtren.

ADVARSEL

Lithiumbatteri 7 Eksplosjonsfare.
Ved utskifting benyttes kun batteri som
anbefalt av apparatfabrikanten.
Brukt batteri returneres apparatleveranderen.

VARNING

Explosionsfara vid felaktigt batteribyte.
Anvand samma batterityp eller en ekvivalent
typ som rekommenderas av apparattillverkaren.
Kassera anvéint batteri enligt fabrikantens
instruktion.

VAROITUS

Paristo vol rajahtaa. jos 56 on Virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan
tyyppiin. Havita kéytetty paristo valmistajan ohjeiden

mukaisesti.

SAFETV-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED EV MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

#2?

TABLE OF CONTENTS

Specifications ............................................ 1
1. SERVICING NOTES """"""""""""""""""""" 3
2. GENERAL ............................................. 7
3. ELECTRICAL ADJUSTMENTS --------------------------- 9

5. EXPLODED VIEWS
5- 1. Cabinet Section ----------------------------------- 25
52. Chassis Section ------------
5- 3.

27

Mechanism Section -------- 28

6. ELECTRICAL PARTS LIST ~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 29
HARDWARE LIST ................................... 34

ATTENTION AU COMPOSANT AVANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A
sun LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES SONT CRITIouEs POUR LA SECURITé.
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS ouE PAR DES PIECES sow DONT LEs
NUMEROS som ooNNEs DANS CE MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
