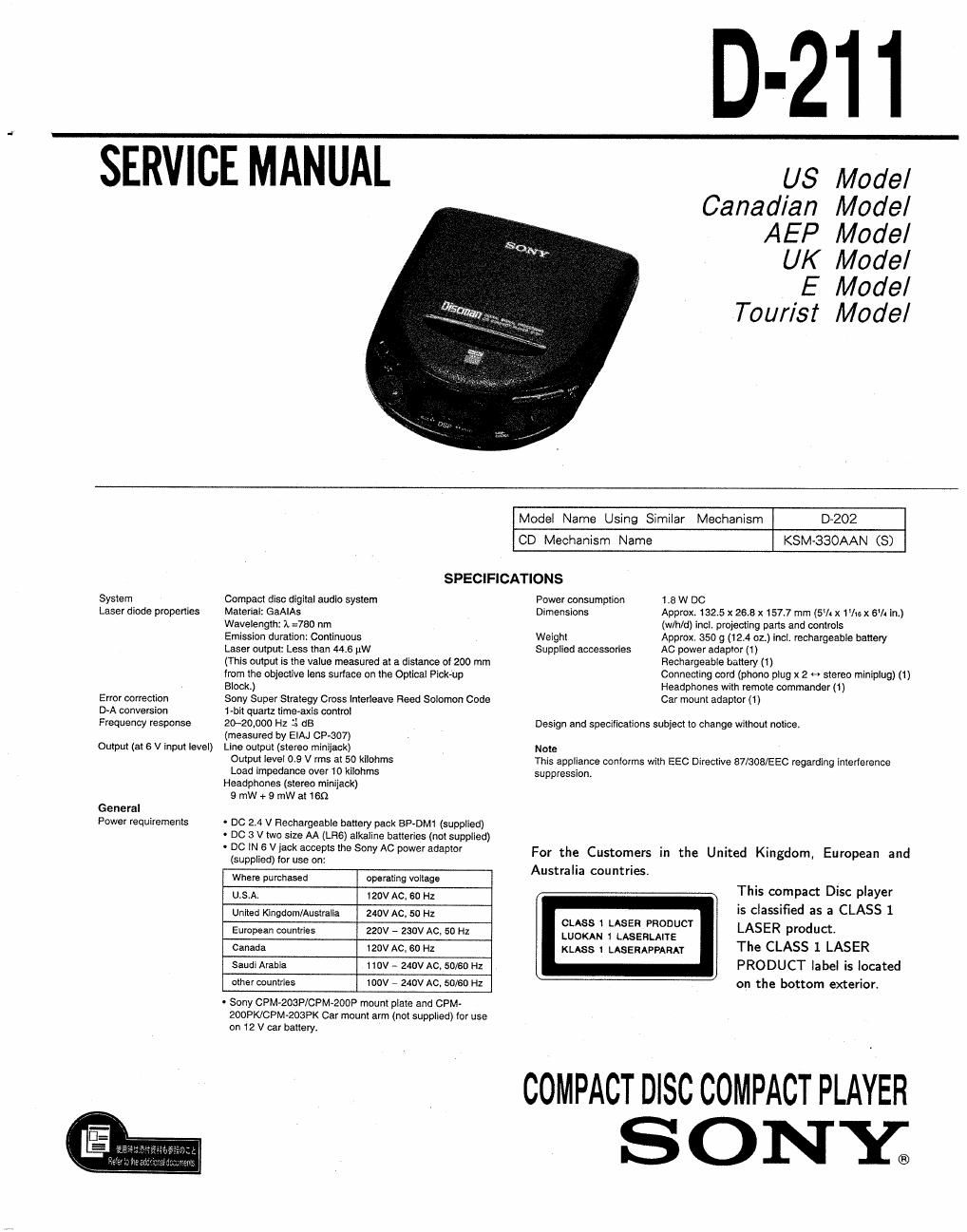

D-211

ERVICE MANUAL us Model

Canadian Model
AEP Model

UK Model

E Model
Tour/st Model

Model Name Using Similar Mechanism D-202
CD Mechanism Name KSM-330AAN (S)
SPECIFICATIONS
System Compact disc digital audio system Power consumption 1.8 w DC
Laser diode properties Material: GaAIAs Dimensions Approx. 132.5 x 26.8 x 157.7 mm (5V4 x Ilrs x 6'1. in.)
Wavelength: 1. =780 nm (wlhld) incl projecting parts and controls
Emission duration: Continuous Weight Approx. 350 g (12.4 oz.) incl. rechargeable battery
Laser output: Less than 44.6 IAW Supplied accessories AC power adaptor (1)
(This output is the value measured at a distance of 200 mm Rechargeable battery (I)
lrom the objective lens surface on the Optical Pick-up Connecting cord (phone plug x 2 H stereo miniplug) (l)
Block.) Headphones writ-i remote commander (1)
Error correction Sony Super Strategy Cross lnterleave Reed Solomon Code Car mount adaptor (t)
D-A conversion Wit quartz time-axis control
Frequency response arr-20,000 Hz 1 dB Design and specifications subject to change without notice.
(measured by EIAJ (DP-307)
Output (at 6 V input level) Line output (stereo minijack) Note
Output level 0.9 V rms at 50 kilohms This appliance conlonns with EEC Directive 87/308/EEC regarding interference
Load impedance over 10 kiiohrns suppression.
Headphones (stereo minilack)
9mW+9mWBHGQ
General
Power requirements - DC 24 V Rechargeable battery pack BPzDM1 (supplied)
~ DC 3 V two size AA (LRG) alkaline batteries (not supplied)
DC .6 V 13° 3 "9 5°Y AC PW 39" For the Customers in the United Kingdom, European and
(supplied) lor use on: .
_ Australia countries,
Where purchased operating voltage .
u.s.A. l20V Ac, so Hz Thrs compact Disc player
United Kingdom/Australia 240v AC, so Hz cuss s or '5 Classlfied 35 a CLASS 1
LA ER FROD
European countries 220v - 230v AC, 50 Hz LUOKAN 1 SEEM": LASER PYOdUCt
Canada 120v Ac, so Hz KLASS 1 LASERAPPARAT The CLASS 1 LASER
Saudi Arabia 110v » 240v AC, 50/60 Hz PRODUCT label is located
other countries toov , 240v Ac, 50/60 Hz on the bottom exterior.

- Sony CPM-203PlCPMA2OOP mount plate and 0PM-
ZOOPKICPM-ZOSPK Car mount arm (not supplied) for use
on 12 V car ballery.

COMPACT DISC COMPACT PLAYER
ONY®

Page 2

D-211

TABLE OF CONTENTS
Section Title Page
Specifications ............................................................. l
1. GENERAL
Location and Function of Controls ................................. 2
Headphones with remote commander ~~~~~~~~~~~~~~~~~~~~~~~~~ 3
2. SERVICING NOTES ...................... 3

3. ELECTRICAL ADJUSTMENTS--

4. DIAGRAMS
4-1, Block Diagrams ~~~~~~~~
4-2. Printed Wiring Boards _.
4-3. Schematic Diagram .......................................... 19

5. EXPLANATION OF IC TERMINALS

6. EXPLODED VIEWS
6-1. Cabinet Section ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 29
6-2. Optical Pick-up Mechanism Section

(KSM-33OAAN(S)) ..........................
6-3, Remote Control Unit (RM-DMG) Section

~~»30
~31

7. ELECTRICAL PARTS LIST ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 32

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL T0 SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

SECTION 1
GENERAL

This section is extracted from
instruction manual.

Location and Function of Controls

See the pages in O for more details.

Lens a}
The laser beam is emitted from
this point to pick-up signal on
the disc.

BATT LIGHT switch Q
when this switch is sat to ON,
dlsplay window will be
illuminated for about 5 seconds
when you press an operating
button (except lor I and
OPEN) while the unit is being

Disc window

DC IN 6V (external power
Input) jack @ 0

VOL (volume) control w
(tor listening through
headphones)

used on rechargeable battery
or alkaline batteries.

PLAY MODE
button «9 @

REPEAT/ENTER
button ® ®

LINE 001 iack 0 .9
(stereo miniiack)

RESUME switch @ 5333mm (3
Display window ®
Normally the track
number and the
elapsed playing

time are shown.

0 (headphones)
[REMOTE jacke

m ' m (AMS'VSEAHCH)
buttons m

DSP MODE button ID >n (play/pause) button I!)

I STOP/CHARGE button
EFFECT button on HOLD ®
switch

DSP: Digital Slgnal Processing
" AMS; Automatic Music Sensor

ATTENTION AU COMPQSANT AYANT
RAPPORT A LA SECURITE!

LES COMPOSANTS IDENTIIfIES PAR UNE MARQUE A
SUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTE DES
PIECES SONT CRITIQUES POUR LA SECURITE DE
FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS
QUE PAR DES PIECES SONY DONT LES NUMERQS SONT
DONNES DANS CE MANUEL 0U DANS LES SUPPLEMENTS
PUBLIES PAR SONY.
