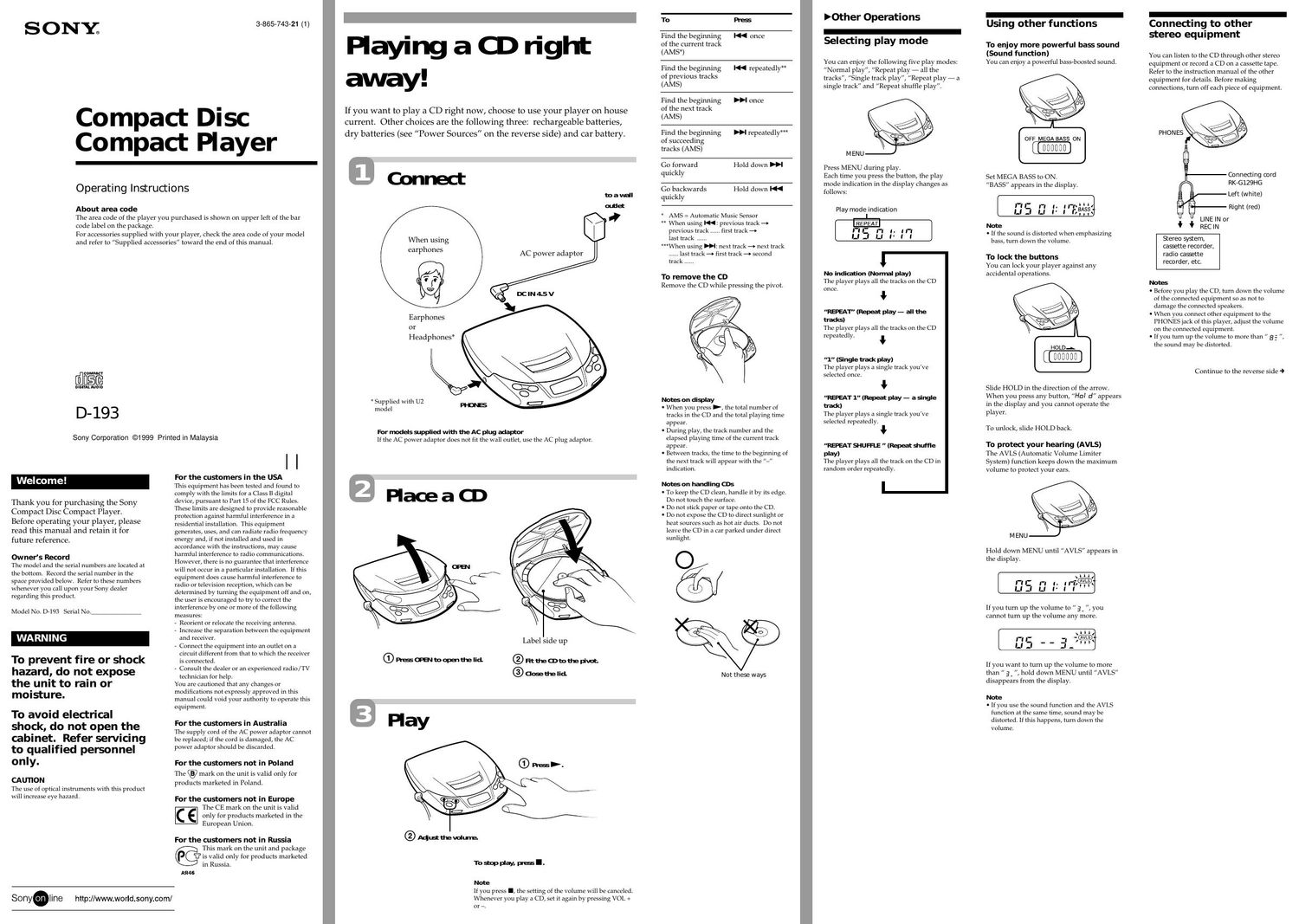

Page 1

Playing a CD in a car You can use your player in a car as illustrated below. To connect your player to a car cassette deck, you need the following accessories: ¥ Car connecting pack ¥ Car battery cord or, ¥ Mount kit CPM-300PC (Mount plate + Car connecting pack + Car battery cord) ¥ Car battery cord with car connecting pack DCC-E26CP Refer to the instruction manual of each accessory for details. When you use the CPM-300PC mount kit/CPM-300P mount plate Attach the car mount adaptor supplied to the CPM-300PC/300P before installing the player. Notes ¥ Do not put the player on the dashboard. ¥ Do not leave the player in a car parked under sunlight. ¥ If the sound is distorted, set MEGA BASS to OFF. ¥ Use a Sony car connecting pack for reducing noise. ¥ Use only the car battery cord listed in the optional accessories. If you use any other car battery cord, smoke, fire or malfunction may occur. Switched ignition function (when using the car battery cord) With this feature, your player stops automatically when you turn off the engine of the car. (This function is not possible with some cars depending on the model.) zPower Sources Using rechargeable batteries Charge rechargeable batteries before using them for the first time. Use only NC-DMAA rechargeable batteries for this player. Do not use any other rechargeable batteries. 1 Open the lid of the battery compartment. 2 Insert 2 rechargeable batteries by matching the Ô and Õ to the diagram inside the battery compartment and close the lid. 3 Connect the AC power adaptor. The indication ÒCHGÓ lights up. Charge for about 3.5 hours. 4 When fully charged, ÒCHGÓ disappears. Disconnect the AC power adaptor. When to replace the rechargeable batteries If the i indication appears in the display and the sound becomes inaudible, charge the rechargeable batteries, because the batteries are used up. To keep the original battery capacity for a long time, recharge the batteries when they are used up (discharged). Notes ¥ Charging time varies depending on how the rechargeable battery is used. ¥ If the battery is new or has not been used for a long time, it may not be charged completely until you charge and discharge it several times. ¥ If the battery life becomes shorter by about half, replace it with Sony NC-DMAA rechargeable battery. Do not use any other rechargeable battery. ¥ Carry batteries in the case provided when not in use to prevent short-circuit or overheating.(rear) Polarity of the plug zAdditional Information Precautions On safety¥ Should any solid objects or liquid fall into the unit, unplug it and have it checked by qualified personnel before operating it any further. ¥ Do not put any foreign objects in the DC IN 4.5 V (external power input) jack. On power sources¥ When you are not using the player for a long time, disconnect all power sources from the player. On the AC power adaptor¥ Use only the supplied AC power adaptor. If your player is not supplied with it, use AC- E45HG AC power adaptor. Do not use any other AC power adaptor. ¥ To unplug the AC power adaptor from the wall outlet, grasp the adaptor itself, do not pull its cord. On dry and rechargeable batteriesThis player is designed so that it cannot charge any other rechargeable batteries or dry batteries for safety reasons. The supplied rechargeable batteries (NC-DMAA) Other rechargeable batteries or dry batteries When you replace the rechargeable batteries with new ones, make sure to use the NC-DMAA rechargeable batteries. ¥ Do not throw the batteries into fire. ¥ Do not carry the batteries with coins or other metallic objects. It can generate heat if the positive and negative terminals of the battery are accidentally contacted by a metallic object. ¥ Do not mix rechargeable batteries with dry batteries. On the player¥ Keep the lens of the player clean and do not touch it. If you do so, the lens may be damaged and the player will not operate properly. ¥ Do not put any heavy object on top of the player. The unit and the CD may be damaged. ¥ Do not leave the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or sand, moisture, rain, mechanical shock, unleveled surface, or in a car with its windows closed. ¥ If the player causes interference to radio or television reception, turn off the player or move it away from the radio or television. ¥ Do not wrap the player in a cloth or blanket during use as it may cause malfunction or serious accidents. On headphones/earphonesRoad safetyDo not use headphones/earphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations. Preventing hearing damageAvoid using headphones/earphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use. Caring for othersKeep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you. Maintenance To clean the lensClean the lens with a lens cleaning kit KK-DM1. To clean the casingUse a soft cloth slightly moistened in water or a mild detergent solution. Do not use alcohol, benzine or thinner. Troubleshooting Should any problem persist after you have made these checks, consult your nearest Sony dealer. The CD does not play or Òno dlSCÓ appears in the display though a CD is placed in the unit. mThe CD is dirty or defective. mInsert the CD with the label side up. mMoisture condensation has occurred. Leave the unit aside for several hours until the moisture evaporates. mThe lens is dirty. mClose the lid of the unit and the battery compartment firmly. mMake sure the batteries are inserted correctly. mConnect the AC power adaptor to a wall outlet securely. mThe rechargeable batteries are used up. Connect the AC power adaptor and charge the batteries. mDry batteries are used up. Replace them with new ones. When you press (, Ò00Ó appears in the display for a moment, and disappears. The CD does not play. mThe rechargeable batteries are used up. Connect the AC power adaptor and charge the batteries. mThe dry batteries are used up. Replace them with new ones. No sound, or noise is heard. mConnect the plugs firmly. mPlugs are dirty. Clean the plugs with a dry soft cloth periodically. ÒHl dc lnÓ appears in the display. mUse only the supplied AC power adaptor or AC power adaptor AC-E45HG (not supplied). ÒHoldÓ appears in the display when you press a button. mThe buttons are locked. Slide HOLD back. The i indication appears in the display when you press a button. mThe rechargeable batteries are used up. Connect the AC power adaptor and charge the batteries. mThe dry batteries are used up. Replace them with new ones. The battery life is short. mManganese batteries are used. Use alkaline batteries. mReplace the batteries with new ones. The volume is limited to a certain level even if you attempt to turn it up. mAVLS function keeps down the volume. Hold down MENU until ÒAVLSÓ disappears from the window. You cannot use the AMS function nor enjoy the various playing modes such as REPEAT 1, REPEAT and REPEAT SHUFFLE. mIf you use the following discs, the AMS or play mode function may not operate well: Ñ a CD where the pause between the tracks is extremely short, Ñ a CD that has only one track, Ñ a CD that has more than 95 tracks. You cannot operate the =/+ buttons. mAfter starting play, you cannot operate these buttons until the elapsed time appears in the display. Press them after the time indication appears in the display. Play does not start right away. mIt may take longer to start playing the CD that has a lot of tracks. Wait for a while. Specifications CD playerSystem Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: l = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture. ) Error correction Sony Super Strategy Cross Interleave Reed Solomon Code D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20,000 Hz +1 dB (measured by EIAJ CP- 307) Output (at 4.5 V input level) Headphones (stereo minijack) Approx. 5 mW + approx. 5 mW at 16 ohms (Approx. 2 mW + approx. 2 mW at 16 ohms*) *For the customers in France GeneralPower requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. ¥ Sony NC-DMAA rechargeable battery: 2.4 V DC, Ni-Cd, 700 mAh ¥ Two LR6 (size AA) batteries: 3 V DC ¥ AC power adaptor (DC IN 4.5 V jack): U2/CA2/E92/MX2 model: 120 V, 60 Hz CED/CEX/EE/EE1/E13/G5/G6/G7/G8/ CE7 model: 220 - 230 V, 50/60 Hz CEK model: 230 - 240 V, 50 Hz EA3 model: 110 - 240 V, 50/60 Hz AU2 model: 240 V, 50 Hz JE.W/E33 model: 100 - 240 V, 50/60 Hz HK2 model: 220 V, 50/60 Hz CN2/AR1 model: 220 V, 50 Hz ¥ Sony CPM-300P mount plate for use on car battery: 4.5 V DC Dimensions (w/h/d) (without projecting parts and controls) Approx. 131´ 28 ´ 148 mm (5 1Ú4 ´ 1 1Ú9 ´ 5 4Ú5 in.) Mass (without rechargeable batteries) Approx. 220 g (7.8 oz) Operating temperature 5¡C - 35¡C (41¡F - 95¡F) Supplied accessoriesFor the area code of the model you purchased, check the upper left side of the bar code on the package. AC power adaptor (1) Headphones (1)* 1 Earphones (1)* 2 Rechargeable batteries (2) Connecting cord (Phono plug ´ 2 « stereo miniplug) (1)* 2 AC plug adaptor (1)* 3 *1Supplied with U2 model *2Not supplied with U2 model *3Supplied with E33, E13, and EA3 models Design and specifications are subject to change without notice. For US customers AC power adaptor supplied is not intended to be serviced. Should the AC power adaptor cease to function in its intended manner, during the warranty period, the adaptor should be returned to your nearest Sony Service Center or Sony Authorized Repair Center for replacement, or after warranty period, it should be discarded. Optional accessories Mount plate CPM-300P Mount kit CPM-300PC Car connecting pack CPA-9 Car battery cord with car connecting pack DCC-E26CP Car battery cord DCC-E245 Active speaker system SRS-A21, SRS-A41, SRS-A71 Rechargeable battery NC-DMAA (2P) Connecting cord RK-G129HG, RK-G136HG AC power adaptor AC-E45HG Stereo headphones MDR-A44L, MDR-301LP, MDR-E848LP, MDR-35* * When using optional headphones, use only headphones with stereo miniplugs. You cannot use headphones with micro plugs. Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information about the accessories in your country. Ð3 Lens Stereo miniplug Micro plug Using dry batteries 1 Open the lid of the battery compartment. 2 Insert two LR6 (size AA) alkaline batteries by matching the Ô and Õ to the diagram inside the battery compartment and close the lid. Note ¥ Do not use manganese batteries for this player. To take out the dry batteriesPull the Ô side of the battery as shown. When to replace the dry batteriesIf the i indication appears in the display and the sound becomes inaudible, replace all the batteries with new ones, because the batteries become weak. Notes ¥ Do not charge the dry batteries. ¥ Do not mix new batteries with old ones. ¥ Do not use different types of batteries together. ¥ When the batteries are not to be used for a long time, remove them. ¥ If the battery leakage occurs, wipe off any deposit in the battery compartment, and install new batteries. Battery life (approx. hours)(EIAJ*)Battery life varies depending on how the player is used. NC-DMAA 3.5 (charged for about 3.5 hours) Two Sony alkaline 10batteries LR6SG *Measured value by the standard of EIAJ (Electronic Industries Association of Japan). (When the unit is used on a flat and stable place.) How to attach the battery compartment lid If the battery compartment lid is detached by an accidental drop, excessive force, etc., attach it as illustrated in the numbered order. (rear) DC IN 4.5 V AC power adaptor to a wall outlet
