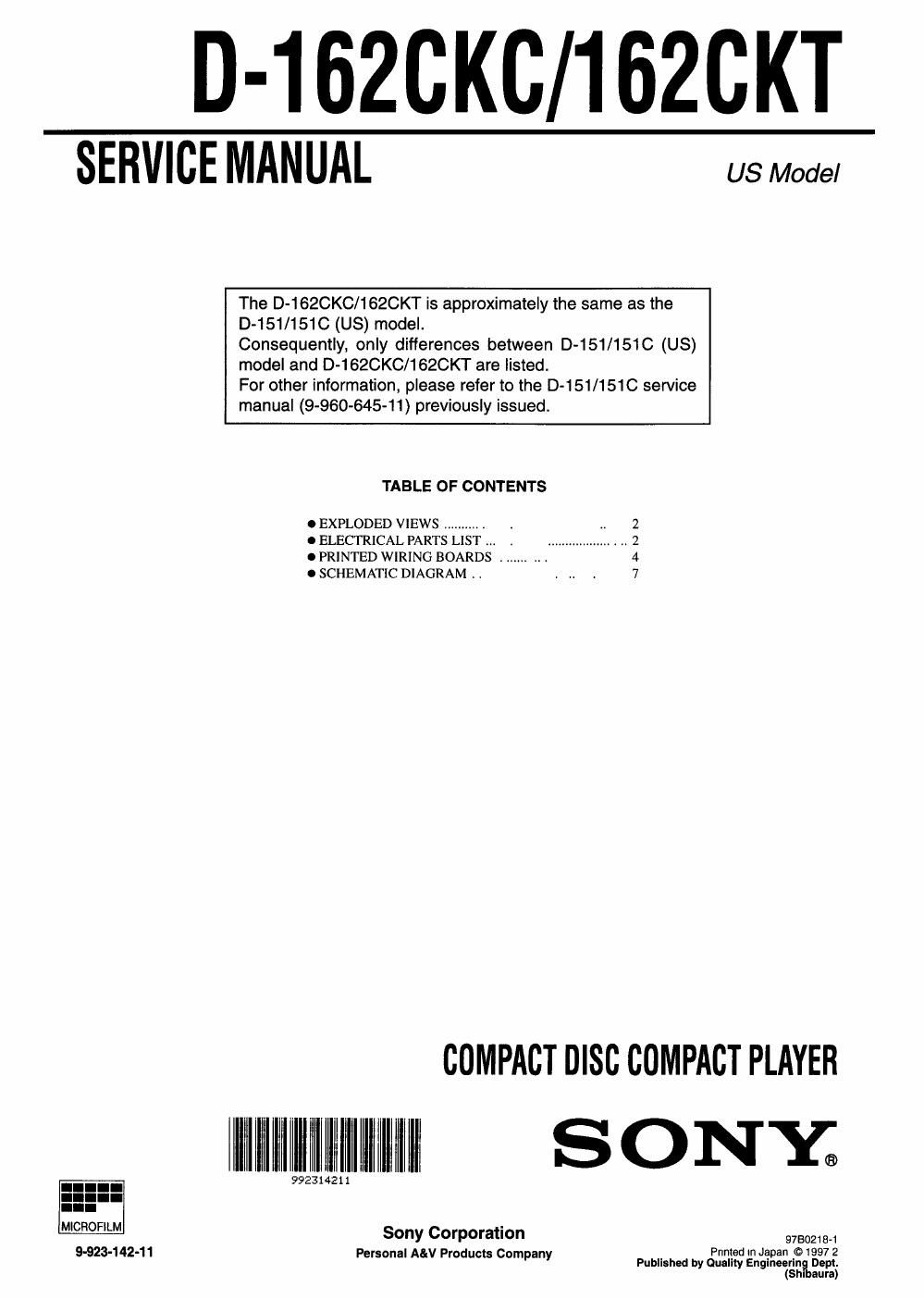

Sony d 162 ckc service manual

Page 2

o EXPLODED VIEWS

(Service Manual See Page 26)

D-151I151C D-1620KC/1620KT
Ref No Part No Description Part No Description
X4946-882-1 LID ASSY. UPPER (GRAY) X-4948-091-1 LID ASSY, UPPER
X4946-883-1 LID ASSY, UPPER (BLUE)
1 X4946»884-1 LID ASSY, UPPER (GREEN)
X4946-885-1 LID ASSY, UPPER (RED)
X-4946-908-1 LID ASSY, UPPER (La Fiesta)
2 4-9804 1601 SPRING, TORSION 4-980-1 16-11 SPRING, TORSION

II A-3276~999»A MAIN BOARD, COMPLETE

A-3293-321-A MAIN BOARD, COMPLETE

14 4'978-685-01 CABINET (LOWER)

4-978-685-62 CABINET (LOWER)

o ELECTRICAL PARTS LIST
(Service Manual See Page 28 - 31)
D-151I151C D-162CKC/1620KT
Ref, No. Part N01 Description Part No Description
A-3276-999-A MAIN BOARD, COMPLETE A-3293-321-A MAIN BOARD, COMPLETE
C111 _- 1-162-953-1 l CERAMIC CHIP IDOPF 59!: 50v
C211 1-162<953-Il CERAMIC CHIP 100PF 5% 50V
C303 [424584-00 ELECT 100uF 20% 10V 1-124-433-00 ELECT lOOuF 20% 4V
C305 1-126-096-11 ELECT 10uF 20% 35V 1-135-216-1 | TANTAL CHIP IOuF 20% 10V
C512 1-124-584-00 ELF£T lOOuF 20% 10V 1-124-433-00 ELECT lOOuF 20% 4V
C565 1424-58400 ELECT 100uF 20% 10V 1-124-433-00 ELECT lOOuF 20% 4V
C806 1-164-227-1 | CERAMIC CHIP 0 022uF 10% 25V 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C807 1-164-227-11 CERAMIC CHIP 0 022uF 10% 25V 1~107~826-11 CERAMIC CHIP 0 luF 10% 16V
C808 1-164-227-11 CERAMIC CHIP 0 OZZuF 10% 25V 1-107-826-11 CERAMIC CHIP 0 luF 10% 16V
L307 1-216-295-00 METAL CHIP 0 5% 1/10W
R304 1-216-864-11 METAL CHIP 0 5% 1/16W *
R422 * 1-216-864-11 METAL CHIP 0 5% ll16W
R807 1-216-845-11 METAL CHIP 100K 5% l/16W 1-216-851-11 METAL CHIP 330K 5% 1/16W
o ACCESORIES & PACKING MATERIALS
(Service Manual See Page 32)
Ref. No. Part No. Description Remark
A 1-467-009-11 ADAPTOR, AC (AC-E455)
8-953-342-93 HEADPHONE MDR-24/Ki SET
8-916-813-90 CORD, CAR BATTERY DOC-£2455
8-951-804~92 CD ACCESSORV CAP-fl/Ci
8-951-814-90 PLATE, MOUNT CPM-401 P SET

1-532-452-XX FUSE. GLASS TUBE (1A)
2-201-810-00 TAPE, MAGIC

3-810-755-21 MANUAL, INSTRUCSION (ENGLISH)
3-810-764-21 MANUAL, INSTRUCSION (ENGLISH)

The components identified by mark A
or dotted line With mark A are cntlcal
for safcly

Replace only With part number specnfied
