0-153

SERVICE MANUAL us Model

REVISED Canadian Model
AEP Model

UK Model

E Model

Australian Model

Chinese Model

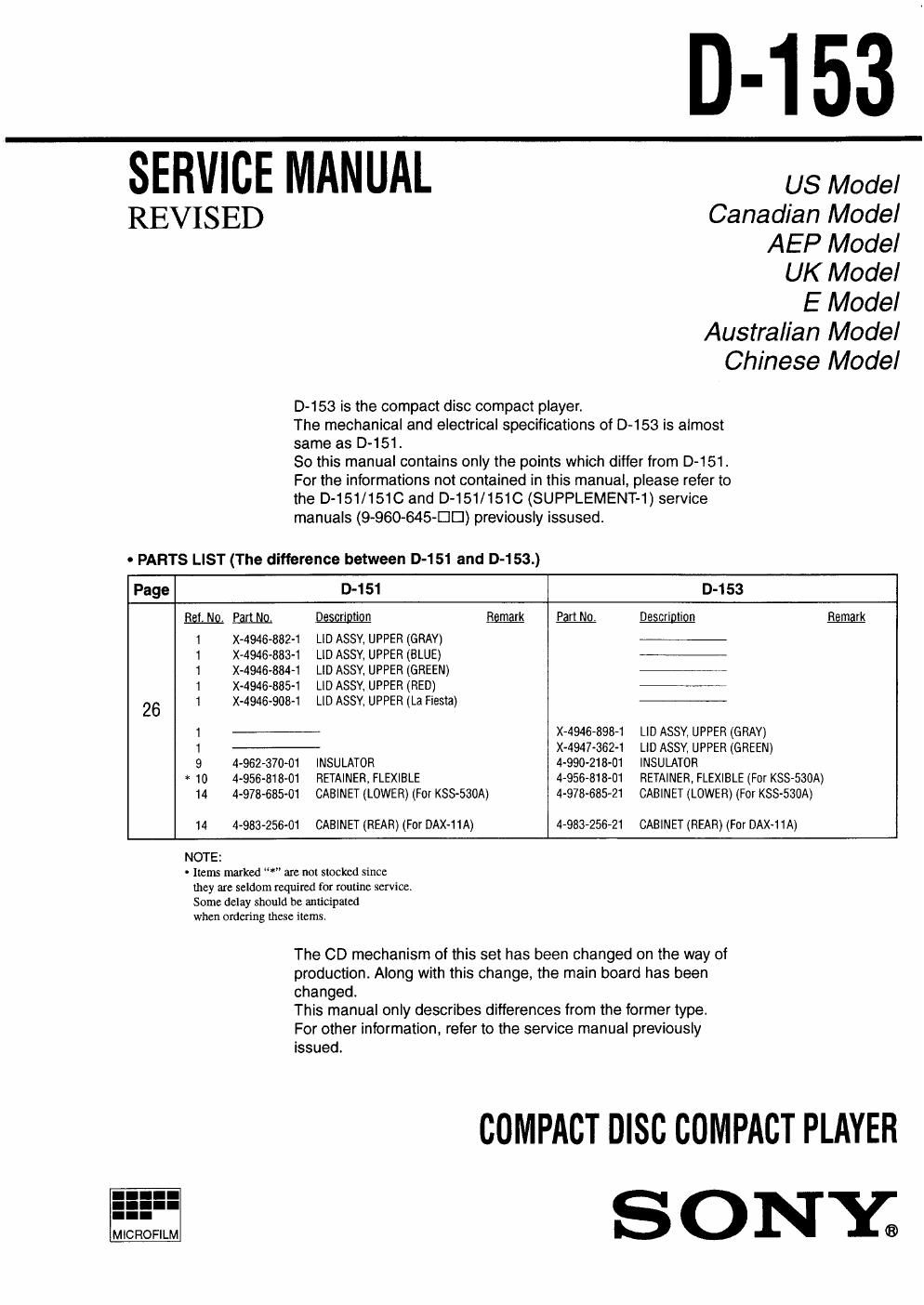

D-153 is the compact disc compact player.

The mechanical and electrical specifications of 0-153 is almost
same as D-151.

So this manual contains only the points which differ from D-151.
For the informations not contained in this manual, please refer to
the D.151/151C and D-151/151C (SUPPLEMENT-1) service
manuals (9-960-645-EID) previously issusedl

- PARTS LIST (The difference between D-151 and D-153.)

Page 0-151 0-153
Reng. Farms). 92.5mm Remark mm. D n i BemaLk

I X-4946-882-1 LID ASSV, UPPER (GRAY) aaaaa _
I X-4946-883-1 LID ASSY, UPPER (BLUE) ...... 7
I X-4946-884»1 LID ASSY, UPPER (GREEN) -...,
1 X-4946-885-1 LID ASSY, UPPER (RED) -_._.__~
1 X-4946-908-1 LID ASSY, UPPER (La Fiesta)

26

1 X-4946-898-1 LID ASSY, UPPER (GRAY)
1 - X-4947-362-1 LID ASSY, UPPER (GREEN)
9 4-962370-01 INSULATOR 4-990-218-01 INSULATOR

* 10 4-956-818-01 RETAINER,FLEXIBLE 4-956-818-01 RETAINER, FLEXIBLE (For KSSvSBOA)
14 4-978-685-01 CABINET (LOWER) (For KSS-530A) 4-978v685-21 CABINET (LOWER) (For KSS-SSOA)
14 4~983>256-01 CABINET (REAR) (For BAX-11A) 4-983-256-21 CABINET (REAR) (For DAX-1 1 A)

NOTE:

- Items marked *" are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items

The CD mechanism of this set has been changed on the way of
production Along with this change, the main board has been
changed.

This manual only describes differences from the former type.
For other information, refer to the service manual previously
issued.

COMPACT DISC COMPACT PLAYER

Page 2

- New/Former Discrimination

Former Type New Type
CD Mechanism Type KSM-SSUAAA/S-NP COM-151
Optical pick-up Name KSS-SSOA BAX-11A
Main Board Part No. 1»660'376-DD 1-660-996-DD

9-923-008-12

Sony Corporation
Personal A&V Products Company

-2-

-main board (side 8) -

Main Board Parr No.

97C04039-1

Printed in Japan @1997. 3
Published by Quality Engin-ering Dept. (Shibaura)
