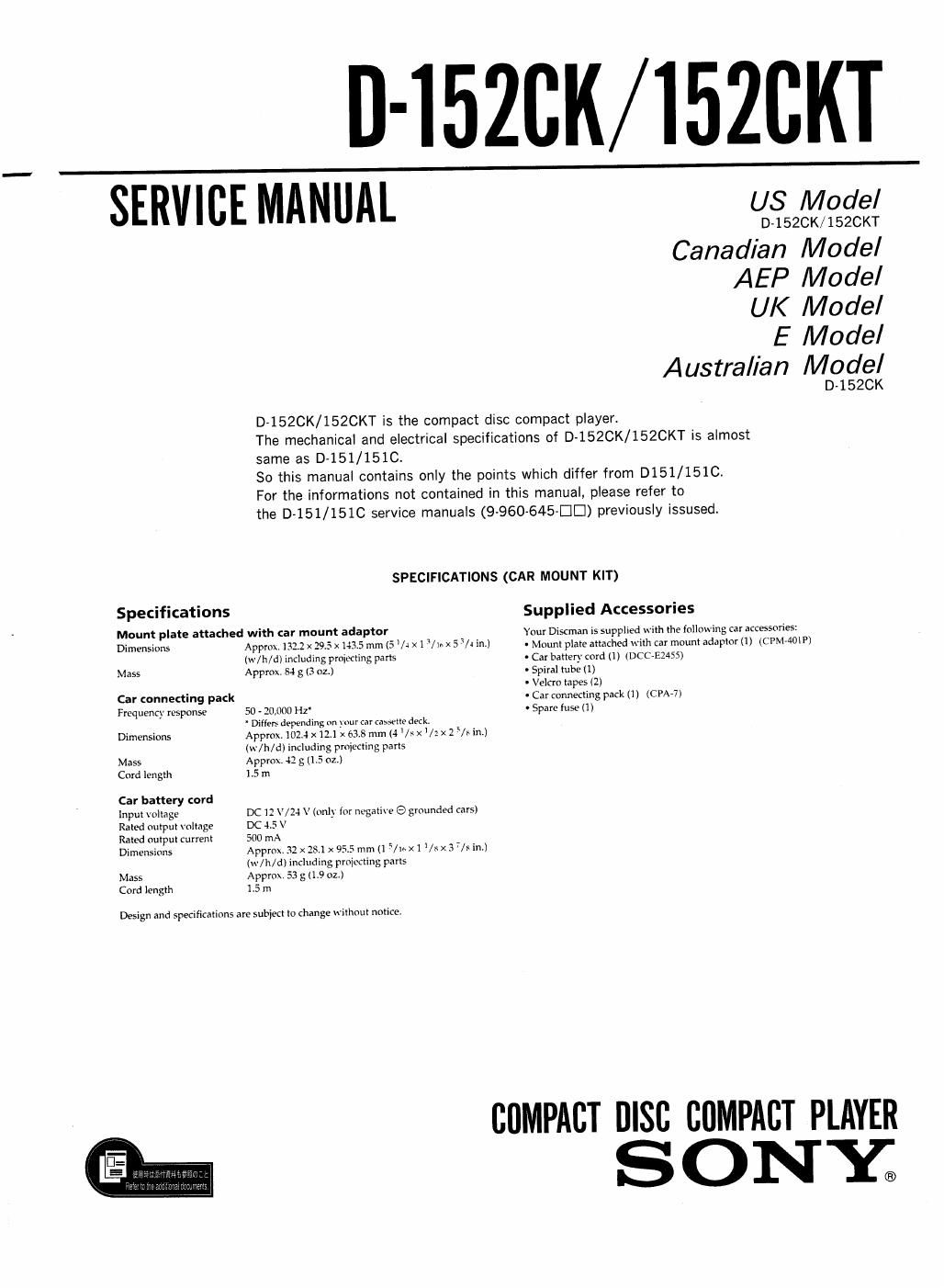

D-ISZCK/ISZCKT

SERVICE MANUAL

US Model

D-1520K/1520KT
Canadian Model
AEP Model

UK Model

E Model
Australian Model

D-1520K

D-1520K/1520KT is the compact disc compact player.
The mechanical and electrical specifications of D-152CK/1520KT is almost

same as D-151/151C.

So this manual contains only the points which differ from D151/151C.
For the informations not contained in this manual, please refer to
the D-151/151C service manuals (9-960-645-EICI) previously issused.

SPECIFICATIONS (CAR MOUNT KIT)

Specifications
Mount plate attached with car mount adaptor

Dimensions Approx 132.2 x 29.5 x i435 mm (5 Vi x1 1/10 x 5 3/4 in)
(w/h/di including projecting parts
Mass Approx. 54 g (3 01.)

Car connecting pack
Frequency response so . 20,000 Hz

~ Diners depending on your (a! cassette deck.

Dimensions Approx. 102.4 x11] x 63.8 mm (4 1 /.« x I /: x z 5/. in.)
(W/h/d) including pmiecting parts

Mass Approx. 42 g (1.5 oz.)

Cord length 1.5 in

Car battery cord

Input voIIage DC i2 \7/24 v (only iur negative 9 grounded cars)

Rated output voltage DC 45 \

Rated output current 500 mA

Dimensions Approx. 32 x 2m x 95.5 mm (1 /I'- x 1 W x 3 7/» in.)
(w/ir/di inch-ding projecting parts

Mass Approx. 53 g (1.9 oz.)

Cord length 1.3 m

Design and specifications are subject to Change without notice.

Supplied Accessories

Your Discman is supplied with the ntIewing car accessories:
I Mount piste attached with car mount adaptor (I) (CPM-ADIP)
' Car battery (0rd (1) (DOC-£2455)

- Spiral tube (1)

. \Ieicro tapes (2)

~ Car connecting pack (1) (CPA-7)

. Spare fuse in
