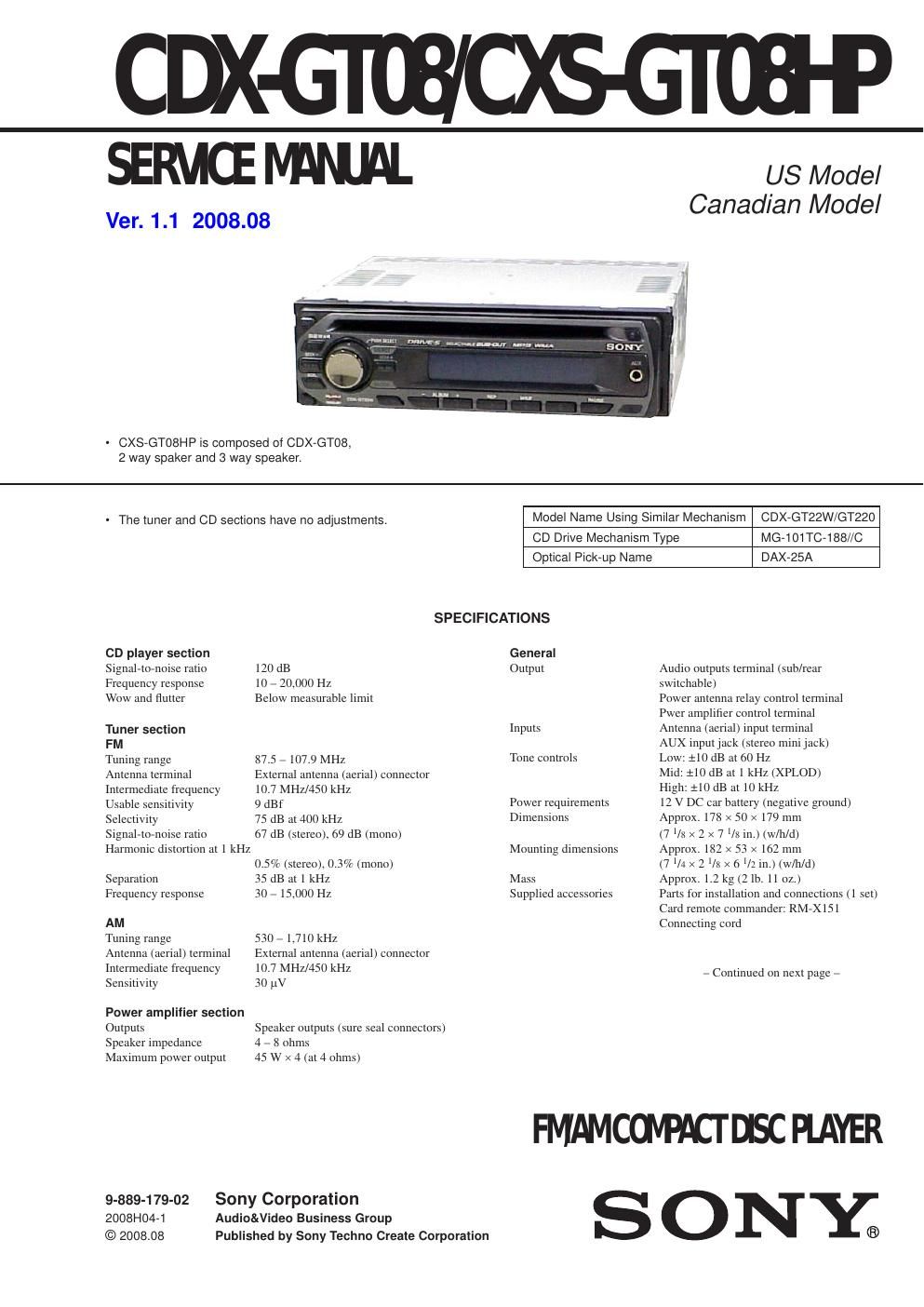

Sony cxs gt 08 hp service manual

Page 1

CDX-GT08/CXS-GT08HP 2 SAFETY-RELATED COMPONET WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. 6 × 9 Speaker (3-way Speaker) Speaker Coaxial 3-way: Woofer 16 × 24 cm (6 3/8 × 9 1/2 in), cone type Midrange 5.5 cm (2 1/4 in), cone type Tweeter 1.4 cm ( 9/16 in), balanced dome type Peak power 300 W Rated power 60 W Impedance 4 Ω Sensitivity 93 dB/W/m Frequency response 27 – 30,000 Hz Mass Approx. 1,150 g (2 lb 9 oz) per speaker Supplied accessory Parts for installation 6 1/2 Speaker (2-way Speaker) Speaker Coaxial 2-way: Woofer 16 cm (6 3/8 in), HOP, cone type Tweeter 4 cm (1 5/8 in), Al, cone type Peak power 190 W Rated power 40 W Impedance 4 Ω Sensitivity 90 dB/W/m Frequency response 35 – 22,000 Hz Mass Approx. 560 g (1 lb 4 oz) per speaker Supplied accessory Parts for installation Design and speci fi cations are subject to change without notice. Dimensions Dimensiones Unit: mm (in) Unidad: mm 4.5× 7.5 (3/16×5/16) 166 (6 5/8) 117 (4 5/8) 222 (8 3/4) ø 80 (3 1/4) 16 (21/32) 75 (3) 194 (7 3/4) 264 (10 1/2) 35 (1 7/16) 6 × 9 Speaker Altavoz de 6 × 9 6 1/2 Speaker Altavoz de 6 1/2 ø 125 (5) ø 75 (3) ø 158 (6 1/4) 44 (13/4) 8.9 ( 3/8) 5 (7/32) ø 5 (7/32) 27 (1 1/8) ø 168 (6 3/4) ø 142 (5 5/8) 153 (6 1/8) 168 (6 5/8) 237 (9 3/8) 2.5 (1/8) ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. Ve r. 1 . 1
