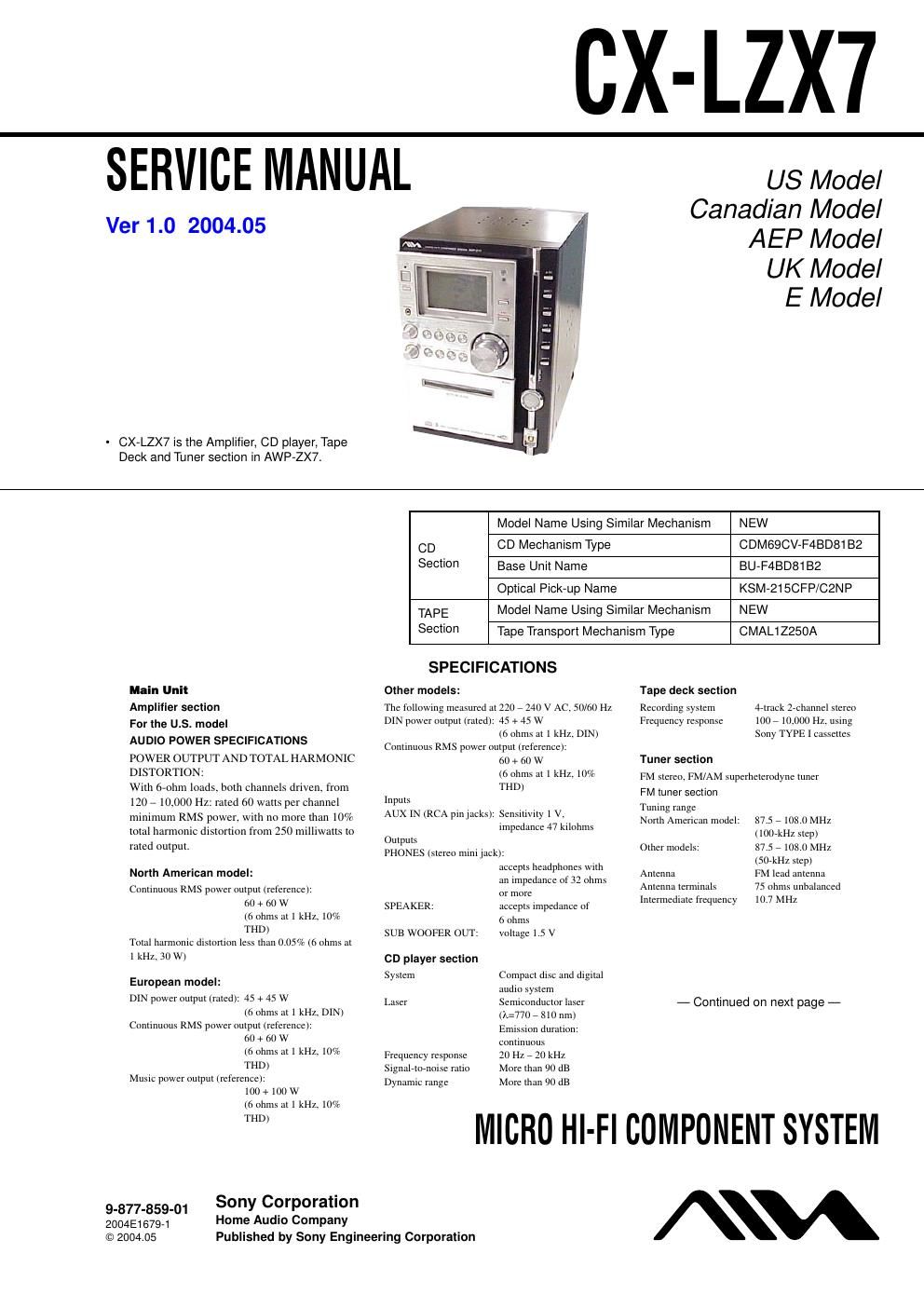

Sony cx lzx 7 service manual

Page 1

2 CX-LZX7 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. A TTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU D ANS LES SUPPÉMENTS PUBLIÉS PAR SONY. Model Name Part No. US model 4-254-181-0 < AEP, UK models 4-254-181-1< E51 model 4-254-181-3< CND model 4-254-181-4< SP model 4-254-181-6< K orean model 4-254-181-7 < -Abbreviation CND : Canadian model E51 : Chilean and Peruvian models KR : Korean model SP : Singapore model MODEL IDENTIFICATION - Back Panel - General Po wer requirementsNorth American model: 120 V AC, 60 HzEuropean model: 230 V AC, 50/60 HzKorean model: 220 V AC, 60 HzOther models: 120 V, 220 V or 230 - 240 V AC, 50/60 H z Adjustable with voltage selector Power consumptionNorth American model: 60 WEuropean model: 60 W 0.3 W (in Power Saving mode) Other models: 70 WDimensions (w/h/d) incl. projecting parts and control s A mplifier/Tuner/Tape/CD section: Approx. 190 277 361.4 mm MassAmplifier/Tuner/Tape/CD section: Approx. 6.2 kg Design and specifications are subject to ch ange without notice. AM tuner section Tuning rangePan-American model: 530 - 1,710 kHz (with the tuning interval set at 10 kHz) 531 - 1,710 kHz (with the tuning interval set at 9 kHz) European model: 531 - 1,602 kHz (with the tuning interval set at 9 kHz) Ot her models: 530 - 1,710 kHz (with the tuning interval set at 10 kHz) 531 - 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna, externa l antenna terminal Intermediate frequency 450 kHz Part No.
