Sony cx jn 44 service manual
This is the 72 pages manual for sony cx jn 44 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cx jn 44 service manual (Ocr-read)

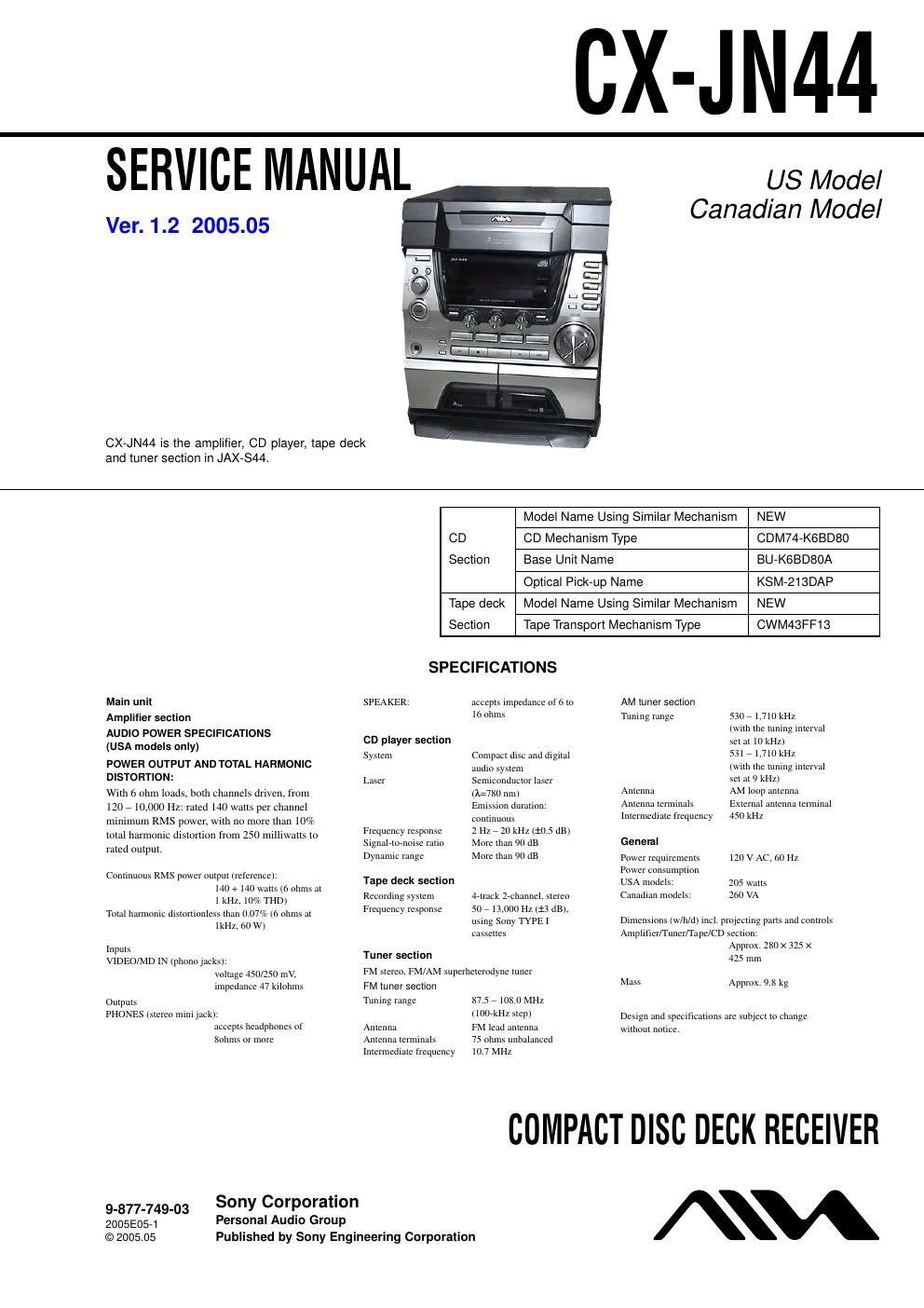

Page 1
2 CX-JN44 Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270 °C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1.A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. 1.5 k Ω 0.15 µF AC voltmete r (0.75 V) To Exposed Metal Parts on Set Earth Ground
Page 2
3 CX-JN44 TABLE OF CONTENTS 7. EXPLODED VIEWS 7-1. Case Section .................................................................... 50 7-2. Tape Mechanism Deck Section (CWM43FF13) ............. 51 7-3. Cassette Box Section ....................................................... 52 7-4. Front Panel Section ......................................................... 53 7-5. Back Panel Section .......................................................... 54 7-6. Chassis Section ................................................................ 55 7-7. CD Mechanism Deck Section-1 (CDM74-K6BD80) ..... 56 7-8. CD Mechanism Deck Section-2 (CDM74-K6BD80) ..... 57 7-10. CD Mechanism Deck Section-3 (CDM74-K6BD80) ..... 58 7-11. Base Unit Section (BU-K6BD80A) ................................ 59 8. ELECTRICAL PARTS LIST .................................. 60 1. SERVICING NOTES ................................................ 4 2. GENERAL ................................................................... 7 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 9 3-2. Case (Side-L/R) ............................................................... 10 3-3. Case (Top) ....................................................................... 10 3-4. Tray Panel ........................................................................\ 11 3-5. CD Mechanism Deck (CDM74-K6BD80) ...................... 11 3-6. Front Panel Block ............................................................ 12 3-7. Back Panel Section .......................................................... 12 3-8. MAIN Board .................................................................... 13 3-9. Tape Mechanism Deck (CWM43FF13) .......................... 13 3-10. Table Assy ....................................................................... 14 3-11. MOTOR (TB) Board ....................................................... 14 3-12. MOTOR (LD) Board ....................................................... 15 3-13. Base Unit (BU-K6BD80A) ............................................. 15 3-14. Motor Gear Assy (SLED) (M102), CD Board ................ 16 3-15. Optical Pick-up (KSM-213DAP) .................................... 16 4. TEST MODE ............................................................... 17 5. ELECTRICAL CHECK ............................................ 21 6. DIAGRAMS 6-1. Block Diagram – SERVO Section – ............................... 22 6-2. Block Diagram – MAIN Section – ................................. 23 6-3. Block Diagram– PANEL/POWER SUPPLY Section – ........................... 24 6-4. Printed Wiring Board – BD Board – .............................. 26 6-5. Schematic Diagram – BD Board – ................................. 27 6-6. Printed Wiring Boards – CHANGER Section – ............. 28 6-7. Schematic Diagram – CHANGER Section – ................. 29 6-8. Printed Wiring Board – CDMP3 CONNECT Board – ....................................... 30 6-9. Schematic Diagram – CDMP3 CONNECT Board – ....................................... 31 6-10. Schematic Diagram – MAIN Section (1/4) – ................. 32 6-11. Schematic Diagram – MAIN Section (2/4) – ................. 33 6-12. Schematic Diagram – MAIN Section (3/4) – ................. 34 6-13. Schematic Diagram – MAIN Section (4/4) – ................. 35 6-14. Printed Wiring Boards – MAIN Section – ..................... 36 6-15. Printed Wiring Board – PANEL Section – ..................... 37 6-16. Schematic Diagram – PANEL Section (1/2) – ............... 38 6-17. Schematic Diagram – PANEL Section (2/2) – ............... 39 6-18. Printed Wiring Board – POWER AMP Section – .......... 40 6-19. Schematic Diagram – POWER AMP Section – ............. 41 6-20. Printed Wiring Boards – TRANS Section – ................... 42 6-21. Schematic Diagram – TRANS Section – ....................... 43 6-22. IC Pin Function Description ............................................ 47
