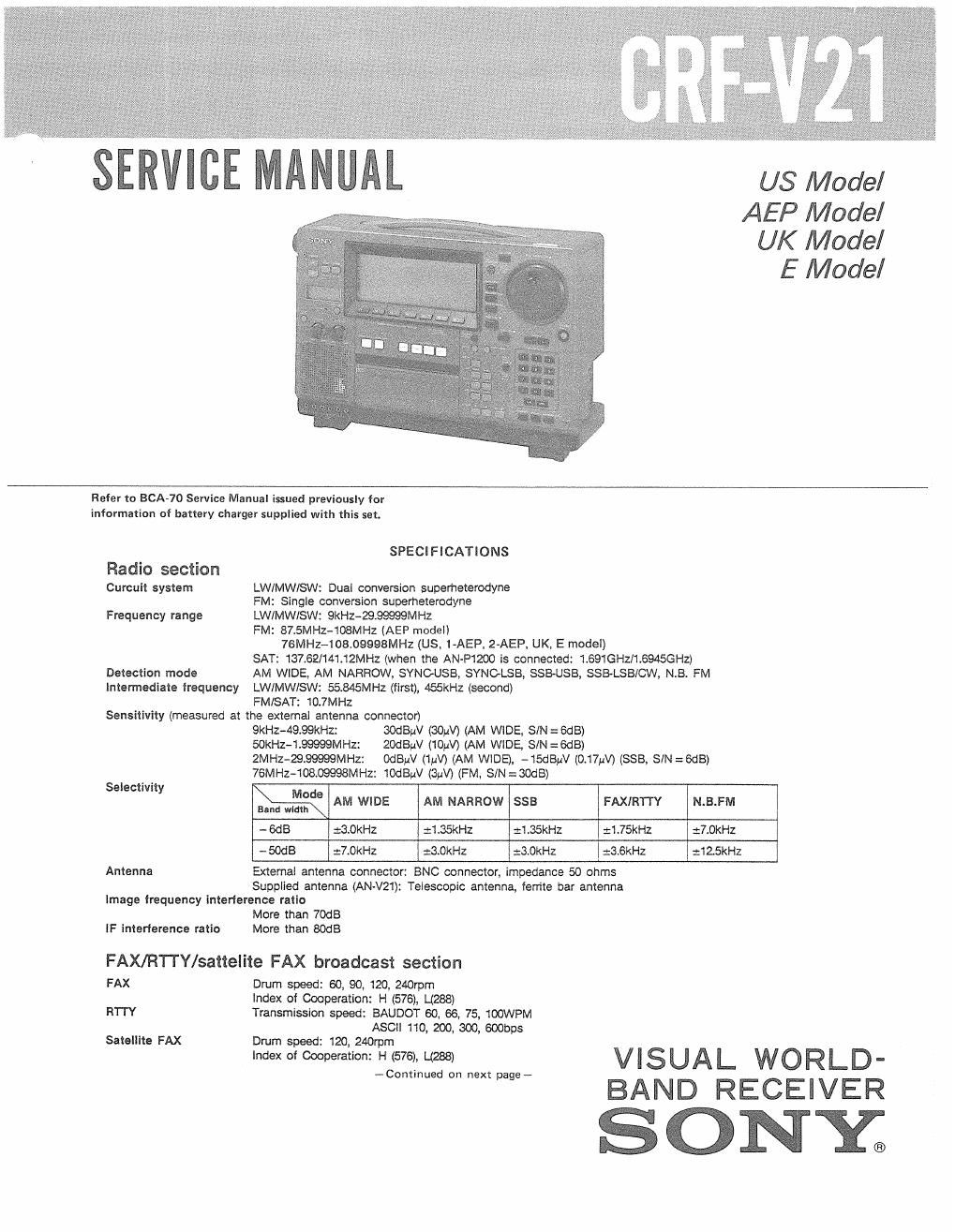

CR F-V21

IRS-2320 section (Except US model)
Date transter rate 300, 600, 1200, 2400, 4600bps

Data length Data: Sbit
Stop bit: 1 or 2 bit
Parity check Even, Odd, None
General
Speaker 70x45mm (2/.x1/« in.) (8 ohm)

Maximum power output
1.7W (at 10% harmonic distortion with a-ohm load)
REC OUT jack (stereo miniiack, 1)
Output level: 245mv (-10dB)
Output impedance 1 kilohm
Earphone jack (stereo minijack, 1)
Load impedance 8 ohms
External speaker jack (minijack, 1)
Load impedance 4-16 ohms
Maximum power output: 0.6W (10% distortion with thm load)
REMOTE jack
Maximum permissible electric current: SOOmA
PB. INPUT jack
Input level: 245mV (--1DdB)
input impedance 47kilohms
Mini DIN B-pin connector
For operation: DC 6V
supplied rechargeable battery NP-22H (AC operation is also available with the
supplied AC power adaptor.)
For computer/clock: Dc 3V
two He (size AA) batteries
For operation: Approx. 55H when receiving FM broadcasts, and approx. 3H when printing
FAX broadcasts (using the supplied rechargeable battery NP-22H)
For computer/clock: Approx. 1 year using the Sony battery SUMG (NS)
Environmental temperatures
(PC-40°C
412x285><169mm (16/.><11/x6/ In.) (w/hld)
Approx. 9.5kg (21 lb) incl. the rechargeable battery and printer paper
AC power adaptor (1)
Rechargeable battery (1)
Battery charger (1)
Active antenna
Telescopic antenna, antenna unit (1)
Antenna holder (1)
Antenna cable (1)
Antenna cable reel (1)
Plug, plug adaptor (1 set)
Dust cover (1)
Printer paper (3)
Self-bonding tape (1)
RS-2320 connecting cable (1) ..... (Except US model)
Operating instructions (1)
Guide (1)
Wave Handbook (1)
Quick Reference (1)

Outputs

Inputs

IRS-232C connector
Power requirements

Battery lite

Dimensions
Weight
Accessories supplied

Optional accessories Printer paper UPP-21 3P

Rechargeable battery NP-22H
Weather satellite antenna (provided with the frequency converter) AN-P1200

Design and specifications subject to change without notice.

Note
This appliance conforms with EEC Directives 76/889 and 82/499 regarding interference suppression.
