Sony cmt hpr 90 owners manual

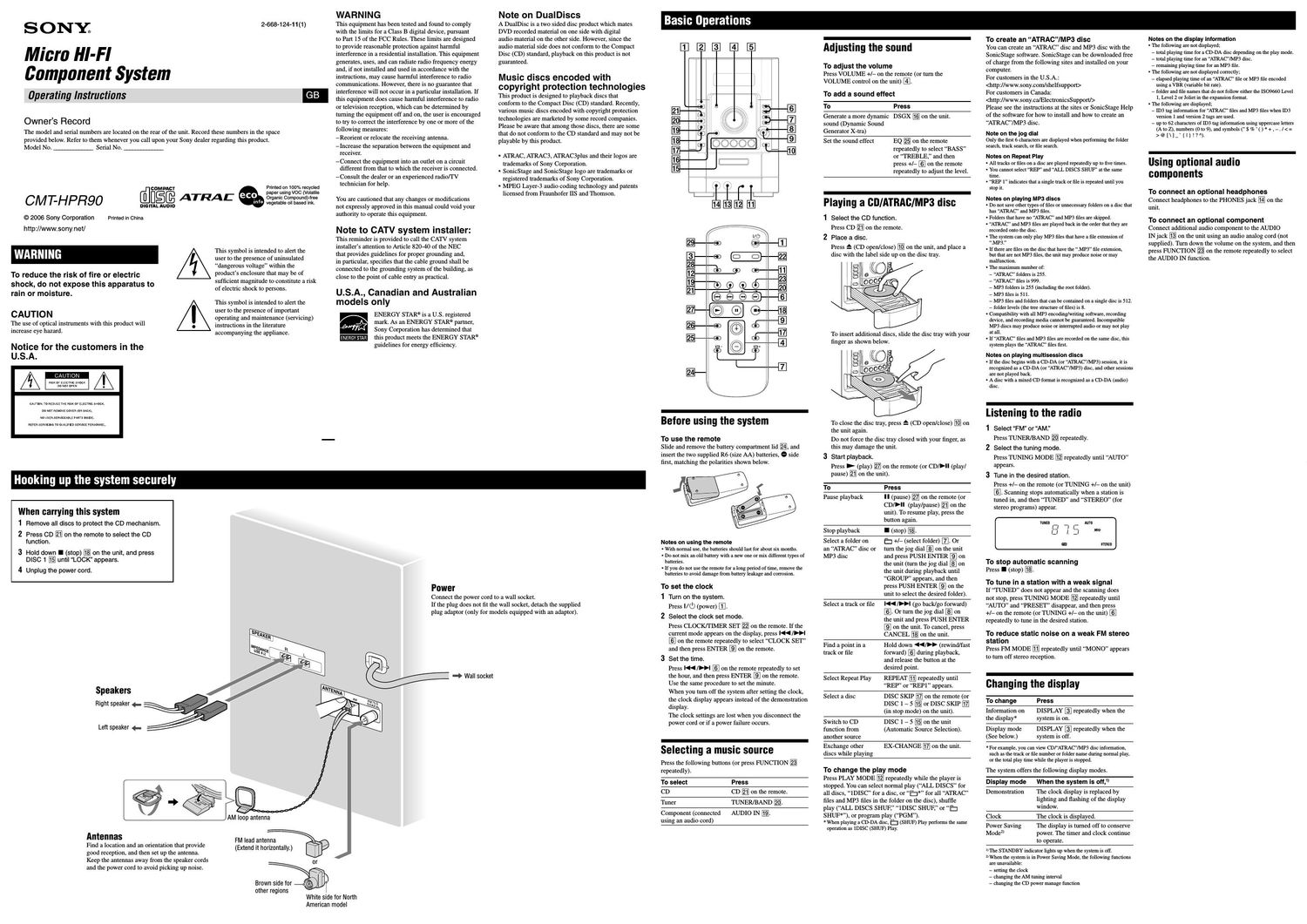

Page 1

CMT-HPR90.GB.2-668-124-11(1) Other Operations Creating your own CD program (Program Play) Use buttons on the remote to create your own program. 1 Press CD  to select the CD function. 2 Press PLAY MODE  repeatedly until PGM appears while the player is stopped. 3 Press DISC SKIP  to select a disc. 4 Press  /  repeatedly or turn the jog dial  on the unit until the desired track number appears. When programming ATRAC files or MP3 files, press +/– (select folder)  repeatedly or turn the jog dial  on the unit to select the desired folder, and then select the desired file. Current disc Loaded disc 5 Press ENTER  to add the track or file to the program. – –.– – appears when the total time exceeds 100 minutes for a CD, or when you select a CD track whose number is 21 or over, or when you select an ATRAC file or MP3 file. 6 Repeat steps 4 through 5 to program additional tracks or files, up to a total of 25 tracks or files. 7 To play your program of tracks or files, press  (play) . The program remains available until you open the disc tray. To play the same program again, select the CD function, and press  (play) . To cancel Program PlayPress PLAY MODE  repeatedly until PGM disappears while the player is stopped. To delete the last track or file of the programPress CLEAR  while the player is stopped. To view program information, such as total track number of the programPress DISPLAY  repeatedly. TipYou can program additional tracks or files during playback by using the jog dial. Presetting radio stations You can preset your favorite radio stations and tune them in instantly by selecting the corresponding preset number. Use buttons on the remote to preset stations. 1 Tune in the desired station (see Listening to the radio). 2 Press TUNER MEMORY . Preset number 3 Press +/–  repeatedly to select your desired preset number. If another station is already assigned to the selected preset number, the station is replaced by the new stations. 4 Press ENTER . 5 Repeat steps 1 through 4 to store other stations. You can preset up to 20 FM and 10 AM stations. The preset stations are retained for about half a day even if you disconnect the power cord or if a power failure occurs. 6 To call up a preset radio station, press TUNING MODE  repeatedly until PRESET appears, and then press +/–  repeatedly to select the desired preset number. Using the Timers The system offers two timer functions. If you use Play Timer with the Sleep Timer, the Sleep Timer has priority. Sleep Timer:You can fall asleep to music. This function works even if the clock is not set. Press SLEEP  on the remote repeatedly. If you select AUTO, the system automatically turns off after the current disc stops or in 100 minutes. Play Timer:You can wake up to CD or tuner at a preset time. Use buttons on the remote to control the Play Timer. Make sure you have set the clock. 1 Prepare the sound source. Prepare the sound source, and then press VOLUME +/–  to adjust the volume. To start from a specific CD track, ATRAC file or MP3 file, create your own CD program. 2 Press CLOCK/TIMER SET . 3 Press  /  repeatedly to select PLAY SET then press ENTER . ON appears, and the hour indication flashes. 4 Set the time to start playing. Press  /  repeatedly to set the hour, and then press ENTER . The minute indication flashes. Use the procedure above to set the minute. 5 Use the same procedure as in step 4 to set the time to stop playing. 6 Select the sound source. Press  /  repeatedly until the desired sound source appears, and then press ENTER . The display shows the timer settings. 7 Press  (power)  to turn off the system. The system turns on 15 seconds before the preset time. If the system is on at the preset time, the Play Timer will not play. To activate or check the timer againPress CLOCK/TIMER SELECT , press  /  repeatedly until PLAY SEL appears, and then press ENTER . To cancel the timerRepeat the same procedure as above until TIMER OFF appears, and then press ENTER . To change the settingStart over from step 1. TipThe Play Timer setting remains as long as the setting is not canceled manually. Troubleshooting 1 Make sure the power cord and speaker cords are correctly and firmly connected. 2 Find your problem in the checklist below, and take the indicated corrective action. If the issue persists, contact your nearest Sony dealer. If the STANDBY indicator flashes Immediately unplug the power cord, and check the following item. - If your system has a voltage selector, is the voltage selector set to the correct voltage? - Are you using only the supplied speakers? - Is anything blocking the ventilation holes on the rear of the system?After the STANDBY indicator  stops flashing, reconnect the power cord, and turn on the system. If the issue persists, contact your nearest Sony dealer. General The display starts flashing as soon as you plug in the power cord even though you have not turned on the system. - Press DISPLAY  twice while the system is off. The demonstration disappears. Sound comes from one channel, or the left and right volumes are unbalanced. - Place the speakers as symmetrically as possible. - Connect only the supplied speakers. Severe hum or noise. - Move the system away from sources of noise. - Connect the system to a different wall socket. - Install a noise filter (available separately) to the power cord. The remote does not function. - Remove any obstacles between the remote and the remote sensor  on the unit, and position the unit away from fluorescent lights. - Point the remote at the systems sensor. - Move the remote closer to the system. The STANDBY indicator  remains lit after unplugging the power cord. - The STANDBY indicator  may not turn off immediately after unplugging the power cord. This is not a malfunction. The indicator will turn off after about 40 seconds. CD/MP3 player The sound skips, or the disc will not play. - Wipe the disc clean, and replace it. - Move the system to a location away from vibration (for example, on top of a stable stand). - Move the speakers away from the system, or place them on separate stands. At high volume, speaker vibration may cause the sound to skip. Play does not start from the first track. - Return to Normal Play by pressing PLAY MODE  repeatedly until both PGM and SHUF disappear. Starting playback takes more time than usual. - The following discs take a longer time to start playback. – a disc recorded with a complicated tree structure. – a disc recorded in multisession mode. – a disc that has not been finalized (a disc to which data can be added). – a disc that has many folders. Tuner Severe hum or noise, or stations cannot be received. - Connect the antenna properly. - Find a location and an orientation that provide good reception, and then set up the antenna again. - Keep the antennas away from the speaker cords and the power cord to avoid picking up noise. - Connect a commercially available external antenna. - Consult your nearest Sony dealer if the supplied AM antenna has come off the plastic stand. - Turn off nearby electrical equipment. To change the AM tuning interval The AM tuning interval is factory-preset to 10 kHz.Use buttons on the unit to change the AM tuning interval. 1 Tune in any AM station, and then turn off the system. 2 While holding down   , press  (power) . All the AM preset stations are erased. To reset the interval to the factory preset, repeat the procedure. You cannot change the AM tuning interval in Power Saving Mode. To improve tuner reception Turn off CD player power by using the CD power management function. By default, CD power is turned on. You cannot change the setting in Power Saving Mode.Use buttons on the unit to turn off CD player power. 1 Press CD/  (play/pause)  to select the CD function. 2 Press  (power)  to turn off the system. 3 After STANDBY stops flashing, press  (power)  while holding ENTER . CD POWER and OFF appear. With CD player power turned off, disc access time is increased. To turn on CD player power, repeat the procedure until CD POWER and ON appear. To reset the system to factory settings If the system still does not operate properly, reset the system to factory settings. You cannot reset the system to factory settings in Power Saving Mode.Use buttons on the unit to reset the unit to its factory default settings. 1 Disconnect and reconnect the power cord, and then turn on the system. 2 Press PLAY MODE/TUNING MODE , DISPLAY  and  (power)  at the same time. All user-configured settings, such as preset radio stations, timer, and the clock, are deleted. Messages CANT LOCK : The system cannot be locked after you have done the procedure of When carrying this system. Turn the power off and then on again by pressing  (power )  on the unit, then perform the procedure. CD OVER : You have reached the end of the disc while pressing  (fast forward)  during playback or pause. COMPLETE : The preset operation ended normally. LOCKED : The disc tray does not open. Contact your nearest Sony dealer. NO DISC : There is no disc in the player, or you have loaded a disc that cannot be played. NOT IN USE : You pressed an invalid button. PUSH SELECT : You tried to set the clock or timer during timer operation. PUSH STOP : You pressed PLAY MODE  during playback. SET CLOCK : You tried to select the timer when the clock is not set. SET TIMER : You tried to select the timer when the Play Timer is not set. STEP FULL : You tried to program more than 26 tracks or files (steps). TIME NG : The Play Timer start and end times are set to the same time. Display examples Display indicates 2 (two) 5 (five) 6 (six) 8 (eight) 0 (zero) A B D G H K M O Q R S Z ! or | $ % , . ? @ ^ Precautions Discs that this system CAN play - Audio CD - CD-R/CD-RW (audio data/ATRAC files/MP3 files) Discs that this system CANNOT play - CD-ROM - CD-R/CD-RW other than those recorded in music CD format or ATRAC format and MP3 format conforming to ISO9660 Level 1/Level 2, Joliet or multisession - CD-R/CD-RW recorded in multisession that have not ended by closing the session - CD-R/CD-RW of poor recording quality, CD-R/CD-RW that have scratches or are dirty, or CD-R/CD-RW recorded with an incompatible recording device - CD-R/CD-RW which is finalized incorrectly - Discs containing files other than MPEG 1 Audio Layer-3 (MP3) files - Discs of non-standard shape (for example, heart, square, star) - Discs that have adhesive tape, paper, or sticker attached to them - Rental or used discs with attached seals where the glue extends beyond the seal - Discs that have labels printed using ink that feels tacky when touched Notes on discs - Before playing, wipe the disc with a cleaning cloth from the center out to the edge. - Do not clean discs with solvents, such as benzine thinner, or commercially available cleaners or anti-static spray intended for vinyl LPs. - Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight. On safety - The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall socket, even if the unit itself has been turned off. - Completely disconnect the power cord (mains lead) from the wall socket (mains) if it is not going to be used for an extended period of time. When unplugging the unit, always grip the plug. Never pull the cord itself. - Should any solid object or liquid get into the system, unplug the system, and have it checked by qualified personnel before operating it again. - The AC power cord can be changed only by a qualified service facility. On placement - Do not place the system in an inclined position or in locations that are extremely hot, cold, dusty, dirty, or humid or lacking adequate ventilation, or subject to vibration, direct sunlight or a bright light. - Be careful when placing the unit or speakers on surfaces that have been specially treated (for example, with wax, oil, polish) as staining or discoloration of the surface may result. - If the system is brought directly from a cold to a warm location or is placed in a very damp room, moisture may condense on the lens inside the CD player, and cause the system to malfunction. In this situation, remove the disc, and leave the system turned on for about a few hours until the moisture evaporates. On heat buildup - Heat buildup on the unit during operation is normal and is not cause for alarm. - Do not touch the cabinet if it has been used continuously at a high volume because the cabinet may have become hot. - Do not obstruct the ventilation holes. On the speaker systemThis speaker system is not magnetically shielded, and the picture on nearby TV sets may become magnetically distorted. In this situation, turn off the TV, wait 15 to 30 minutes, and turn it back on. If there is no improvement, move the speakers far away from the TV. Cleaning the cabinetClean this system with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as thinner, benzine, or alcohol. Specifications Main unitAUDIO POWER SPECIFICATIONSPOWER OUTPUT AND TOTAL HARMONIC DISTORTION:With 4 ohm loads, both channels driven, from 120 – 10,000 Hz; rated 85 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to rated output. Amplifier sectionNorth American modelDIN power output (rated): 68 + 68 W (4 ohms at 1 kHz, DIN)Continuous RMS power output (reference): 85 + 85 W (4 ohms at 1 kHz, 10% THD)InputsAUDIO IN: Sensitivity 250 mV, impedance of 47 kilohmsOutputsPHONES (stereo mini jack): accepts headphones with an impedance of 8 ohms or moreSPEAKER: accepts impedance of 4 ohms CD player sectionSystem: Compact disc and digital audio systemLaser Diode Properties Emission Duration: Continuous Laser Output*: Less than 44.6 µW* This output is the value measurement at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response: 20 Hz – 20 kHz (±2 dB) Wavelength: 780 – 790 nm Selected track or file number Total playing time of program (including selected track or file) Tuner sectionFM stereo, FM/AM superheterodyne tunerFM tuner section:Tuning range: 87.5 – 108.0 MHzAntenna: FM lead antennaAntenna terminals: 75 ohms unbalancedIntermediate frequency: 10.7 MHzAM tuner section:Tuning range: 530 – 1,710 kHz (with 10 kHz tuning interval) 531 – 1,710 kHz (with 9 kHz tuning interval)Antenna: AM loop antennaAntenna terminals: External antenna terminalIntermediate frequency: 450 kHz SpeakerSpeaker system: 2-way, bass-reflex typeSpeaker unitsWoofer: 13 cm dia., cone typeTweeter: 4 cm dia., cone typeNominal impedance: 4 ohmsDimensions (w/h/d): Approx. 174 × 280 × 258 mmMass: Approx. 2.6 kg net per speaker GeneralPower requirements: 120 V AC, 60 HzPower consumption: 45 wattsDimensions (w/h/d) (excl. speakers): Approx. 180 × 280 × 360 mmMass (excl. speakers): 3.9 kgSupplied accessories: Remote Commander (1)/R6 (Size AA) batteries (2)/AM loop antenna (1)/FM lead antenna (1)US and foreign patents licensed from Dolby Laboratories.Design and specifications are subject to changewithout notice. - Standby power consumption: 0.5 W - Halogenated flame retardants are not used in the certain printed wiring boards. - Lead-free solder is used for soldering certain parts. - Halogenated flame retardants are not used in cabinets. (Except for the United States model)
