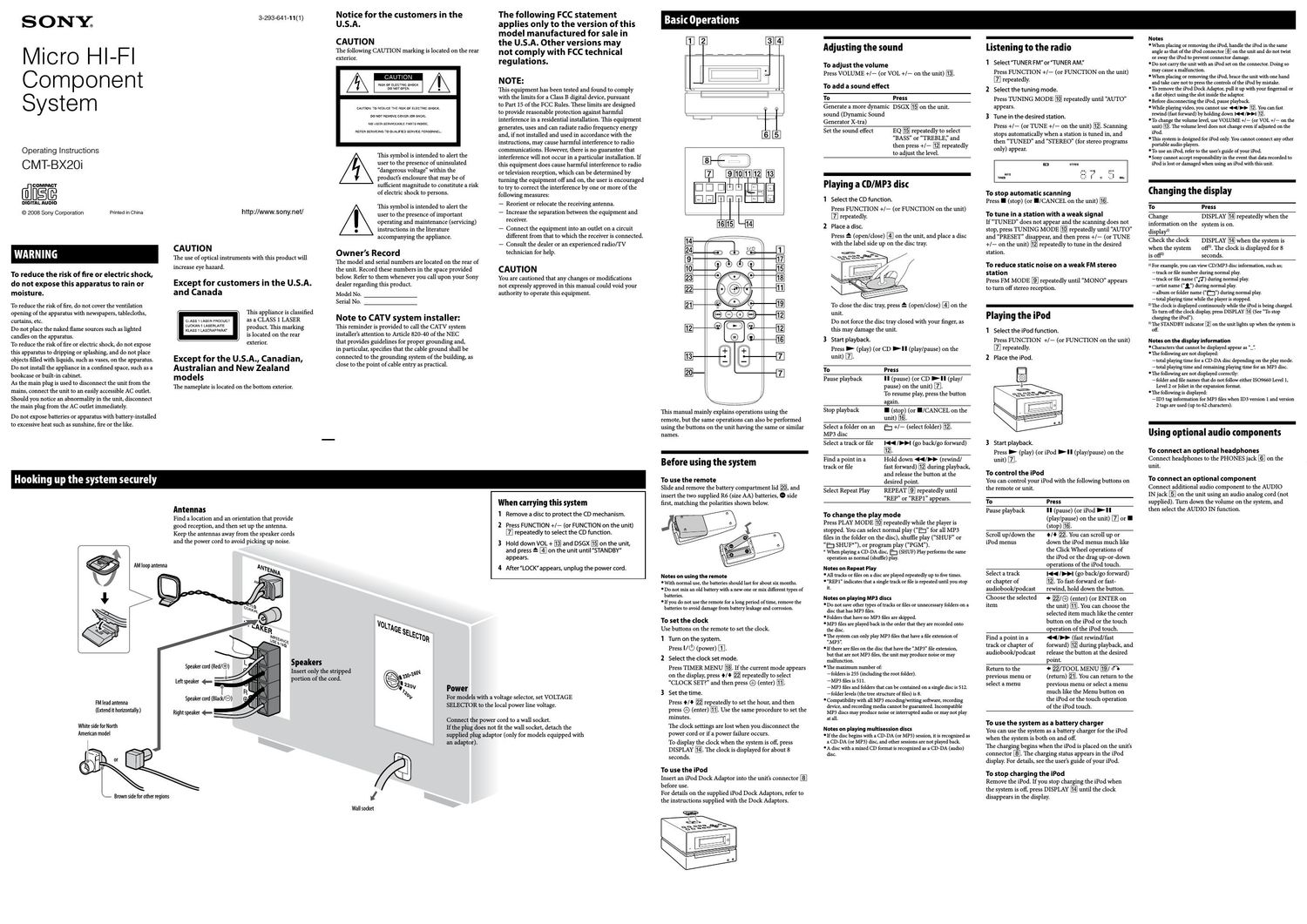

CMT-BX20i.GB.3-293-641-11(1) Other Operations Creating your own program (Program Play) 1 Press FUNCTION +/  (or FUNCTION on the unit)  repeatedly to select the CD function. 2 Press PLAY MODE  repeatedly until PGM appears while the player is stopped. 3 Press  /  repeatedly until the desired track or file number appears. When programming files, press +/  repeatedly to select the desired folder, and then select the desired file. Total playing time of program (including selected track or file) Selected track or file number 4 Press (or ENTER on the unit)  to add the track or file to the program.  .  appears when the total program time exceeds 100 minutes for a CD, or when you select a CD track whose number is 21 or over, or when you select an MP3 file. 5 Repeat steps 3 through 4 to program additional tracks or files, up to a total of 25 tracks or files. 6 To play your program of tracks or files, press  (or CD  on the unit) . The program remains available until you open the disc tray. To play the same program again, press  (or CD  on the unit) . To cancel Program PlayPress PLAY MODE  repeatedly until PGM disappears while the player is stopped. To delete the last track or file of the programPress CLEAR  while the player is stopped. Presetting radio stations You can preset your favorite radio stations and tune them in instantly by selecting the corresponding preset number.Use buttons on the remote to preset stations. 1 Tune in the desired station (See Listening to the radio ). 2 Press TUNER MEMORY . Preset number 3 Press +/   repeatedly to select your desired preset number. If another station is already assigned to the selected preset number, the station is replaced by the new stations. 4 Press . 5 Repeat steps 1 through 4 to store other stations. You can preset up to 20 FM and 10 AM stations. The preset stations are retained for about half a day even if you disconnect the power cord or if a power failure occurs. 6 To call up a preset radio station, press TUNING MODE  repeatedly until PRESET appears, and then press +/   repeatedly to select the desired preset number. Using the Timers The system offers two timer functions. If you use the Play Timer with the Sleep Timer, the Sleep Timer has priority.Use buttons on the remote to use the timer functions. Sleep Timer:You can fall asleep to music. This function works even if the clock is not set.Press SLEEP  repeatedly. If you select AUTO, the system automatically turns off after the current disc stops or in 100 minutes. Play Timer:You can wake up to CD, tuner or iPod at a preset time. Make sure you have set the clock. 1 Prepare the sound source. Prepare the sound source, and then press VOLUME +/  to adjust the volume. To start from a specific track or file, create your own program. 2 Press TIMER MENU . 3 Press /  repeatedly to select PLAY SET?, and then press . ON appears, and the hour indication flashes. 4 Set the time to start playback. Press /  repeatedly to set the hour, and then press . The minute indication flashes. Use the procedure above to set the minutes. 5 Use the same procedure as in step 4 to set the time to stop playback. 6 Select the sound source. Press /  repeatedly until the desired sound source appears, and then press . The display shows the timer settings. 7 Press   to turn off the system. The system turns on 15 seconds before the preset time. If the system is on at the preset time, the Play Timer will not play. To activate or check the timer again 1 Press TIMER MENU . TIMER SEL? flashes in the display. 2 Press . 3 Press /  repeatedly to select PLAY SEL?, then press . To cancel the timerRepeat the same procedure as above until TIMER OFF? appears in step 3, and then press . To change the settingStart over from step 1. Note on the iPod touch userThe Play Timer may not be activated depending on the status of the connected iPod touch. TipThe Play Timer setting remains as long as the setting is not canceled manually. 1 Make sure the power cord and speaker cords are correctly and firmly connected. 2 Find your problem in the checklist below, and take the indicated corrective action. If the issue persists, contact your nearest Sony dealer. If the STANDBY indicator flashes Immediately unplug the power cord, and check the following items.  If your system has a voltage selector, is the voltage selector set to the correct voltage?  Are you using only the supplied speakers?  Is anything blocking the ventilation holes on the top or back of the system?  Is the iPod connector  short-circuited? After the STANDBY indicator  stops flashing, reconnect the power cord, and turn on the system. If the issue persists, contact your nearest Sony dealer. General Sound comes from one channel, or the left and right volumes are unbalanced.  Place the speakers as symmetrically as possible.  Connect only the supplied speakers. Severe hum or noise.  Move the system away from sources of noise.  Connect the system to a different wall socket.  Install a noise filter (available separately) to the power cord. The remote does not function.  Remove any obstacles between the remote and the remote sensor  on the unit, and position the unit away from fluorescent lights.  Point the remote at the systems sensor.  Move the remote closer to the system. CD/MP3 player The sound skips, or the disc will not play.  Wipe the disc clean, and replace it.  Move the system to a location away from vibration (for example, on top of a stable stand).  Move the speakers away from the system, or place them on separate stands. At high volume, speaker vibration may cause the sound to skip. Play does not start from the first track.  Press PLAY MODE  repeatedly until both PGM and SHUF disappear to return to normal play. Starting playback takes more time than usual.  The following discs take a longer time to start playback.  a disc recorded with a complicated tree structure.  a disc recorded in multisession mode.  a disc that has not been finalized (a disc to which data can be added).  a disc that has many folders. Tuner Severe hum or noise, or stations cannot be received. (TUNED or STEREO flashes on the display.)  Connect the antenna properly.  Find a location and an orientation that provide good reception, and then set up the antenna again.  Keep the antenna away from the speaker cords and the power cord to avoid picking up noise.  Connect a commercially available external antenna.  Consult your nearest Sony dealer if the supplied AM antenna has come off the plastic stand.  Turn off nearby electrical equipment. To change the AM tuning interval The AM tuning interval is factory-preset to 9 kHz (or 10 kHz, for some areas).Use buttons on the unit to change the AM tuning interval. 1 Tune in any AM station, and then turn off the system. 2 While holding down ENTER , press  . All the AM preset stations are erased. To reset the interval to the factory preset, repeat the procedure. To improve tuner reception Turn off CD player power by using the CD power management function. By default, CD power is turned on. 1 Press FUNCTION +/  (or FUNCTION on the unit)  repeatedly to select the CD function, and then turn off the system. 2 After STANDBY stops flashing, press   on the unit while holding down  CANCEL  on the unit. CD POWER OFF appears. With CD player power turned off, disc access time is increased. To turn on CD player power, repeat the procedure until CD POWER ON appears. To reset the system to factory settings If the system still does not operate properly, reset the system to factory settings.Use buttons on the unit to reset the unit to its factory default settings. 1 Disconnect and reconnect the power cord, and then turn on the system. 2 Press  , VOL +  and  CANCEL  at the same time. All user-configured settings, such as preset radio stations, timer, and the clock, are deleted. Troubleshooting iPod There is no sound.  Make sure the iPod is connected securely.  Make sure the iPod is playing music.  Adjust the volume. The sound is distorted.  Turn down the volume.  Set the EQ setting of the iPod to Off or Flat. The iPod cannot be charged.  Make sure the iPod is connected securely. Messages CD Over: You have reached the end of the disc while pressing   during playback or pause. Complete: The preset operation ended normally. LOCKED: The disc tray does not open. Contact your nearest Sony dealer. No Disc: There is no disc in the system, or you have loaded a disc that cannot be played. No Step: All of the programmed tracks or files have been erased. Push STOP!: You pressed PLAY MODE  during playback. Reading: The system is reading information of the disc. Some buttons are not available. Step Full!: You tried to program more than 26 tracks or files (steps). TIME NG!: The Play Timer start and end times are set to the same time. Precautions Discs that this system CAN play  Audio CD  CD-R/CD-RW (audio data/MP3 files) Discs that this system CANNOT play  CD-ROM  CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet or multisession  CD-R/CD-RW recorded in multisession that have not ended by closing the session  CD-R/CD-RW of poor recording quality, CD-R/CD-RW that have scratches or are dirty, or CD-R/CD-RW recorded with an incompatible recording device  CD-R/CD-RW which is finalized incorrectly  Discs containing files other than MPEG 1 Audio Layer-3 (MP3) files  Discs of non-standard shape (for example, heart, square, star)  Discs that have adhesive tape, paper, or sticker attached to them  Rental or used discs with attached seals where the glue extends beyond the seal  Discs that have labels printed using ink that feels tacky when touched Notes on discs  Before playing, wipe the disc with a cleaning cloth from the center out to the edge.  Do not clean discs with solvents, such as benzine thinner, or commercially available cleaners or anti-static spray intended for vinyl LPs.  Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight. Note on DualDiscsA DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed. Music discs encoded with copyright protection technologiesThis product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. Copyrights  iPod is a trademark of Apple Inc., registered in the U.S. and other countries.  MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.  All other trademarks and registered trademarks are of their respective holders. In this manual, TM and ® marks are not specified. On safety  Completely disconnect the power cord (mains lead) from the wall socket (mains) if it is not going to be used for an extended period of time. When unplugging the unit, always grip the plug. Never pull the cord itself.  Should any solid object or liquid get into the system, unplug the system, and have it checked by qualified personnel before operating it again.  The AC power cord can be changed only by a qualified service facility. On placement  Do not place the system in an inclined position or in locations that are extremely hot, cold, dusty, dirty, or humid or lacking adequate ventilation, or subject to vibration, direct sunlight or a bright light.  Be careful when placing the unit or speakers on surfaces that have been specially treated (for example, with wax, oil, polish) as staining or discoloration of the surface may result.  If the system is brought directly from a cold to a warm location or is placed in a very damp room, moisture may condense on the lens inside the CD player, and cause the system to malfunction. In this situation, remove the disc, and leave the system turned on for about an hour until the moisture evaporates. On heat buildup  Heat buildup on the unit during operation is normal and is not cause for alarm.  Do not touch the cabinet if it has been used continuously at a high volume because the cabinet may have become hot.  Do not obstruct the ventilation holes. On the speaker systemThis speaker system is not magnetically shielded, and the picture on nearby TV sets may become magnetically distorted. In this situation, turn off the TV, wait 15 to 30 minutes, and turn it back on. If there is no improvement, move the speakers far away from the TV. Cleaning the cabinetClean this system with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as thinner, benzine, or alcohol. Specifications Main unitAUDIO POWER SPECIFICATIONSPOWER OUTPUT AND TOTAL HARMONIC DISTORTION:(The United States model only)With 6 ohm loads, both channels driven, from 120  10,000 Hz; rated 25 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to rated output. Amplifier sectionDIN power output (rated): 18 + 18 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 25 + 25 W (6 ohms at 1 kHz, 10% THD) InputsAUDIO IN (stereo mini jack): voltage 250 mV, impedance 47 kilohms OutputsPHONES (stereo mini jack): accepts headphones of 8 ohms or moreSPEAKER: accepts impedance of 6 to 16 ohms CD player sectionSystem: Compact disc and digital audio systemLaser Diode PropertiesEmission Duration: ContinuousLaser Output*: Less than 44.6µW * This output is the value measurement at a distance of 200mm from the objective lens surface on the Optical Pick-up Block with 7mm aperture.Frequency response: 20 Hz  20 kHz Signal-to-noise ratio: More than 90 dBDynamic range: More than 90 dB Tuner sectionFM stereo, FM/AM superheterodyne tunerFM tuner section:Tuning range: North American model: 87.5  108.0 MHz (100 kHz step) Other models: 87.5  108.0 MHz (50 kHz step) Antenna: FM lead antenna Antenna terminals: 75 ohms unbalanced Intermediate frequency: 10.7 MHz AM tuner section: Tuning range: North American model: 530  1,710 kHz (with 10 kHz tuning interval) 531  1,710 kHz (with 9 kHz tuning interval) Australian model: 531  1,710 kHz (with 9 kHz tuning interval) 530  1,710 kHz (with 10 kHz tuning interval) Other models: 531  1,602 kHz (with 9 kHz tuning interval) 530  1,610 kHz (with 10 kHz tuning interval) Antenna: AM loop antenna, external antenna terminal Intermediate frequency: 450 kHz iPod sectionCompatible iPod models: iPod touch iPod nano 3rd generation (video) iPod classic iPod nano 2nd generation (aluminum) iPod 5th generation (video) iPod nano 1st generation iPod 4th generation (color display) iPod 4th generation iPod mini SpeakerSpeaker system: Full-range, bass-reflex, 10 cm, cone typeRated impedance: 6 ohmsDimensions (w/h/d): Approx. 140 × 245 × 215 mmMass: Approx. 1.9 kg net GeneralPower requirements: North American model: 120 V AC, 60 Hz Australian model: 230  240 V AC, 50/60 Hz Other models: 120 V, 220 V, 230  240 V AC, 50/60 Hz, adjustable with voltage selector Power consumption: 63 watts Dimensions (w/h/d) (excl. speakers): Approx. 215 × 140 × 298 mm Mass (excl. speakers): Approx. 3.9 kg Supplied accessories: Remote Commander (1)/R6 (Size AA) batteries (2)/AM loop antenna (1)/FM lead antenna (1)/iPod Dock Adaptors (1 set) (Except for Australian model) Design and specifications are subject to change without notice.  Standby power consumption: 0.5 W Halogenated flame retardants are not used in the certain printed wiring boards. Halogenated flame retardants are not used in cabinets. (Except for the United States model)
