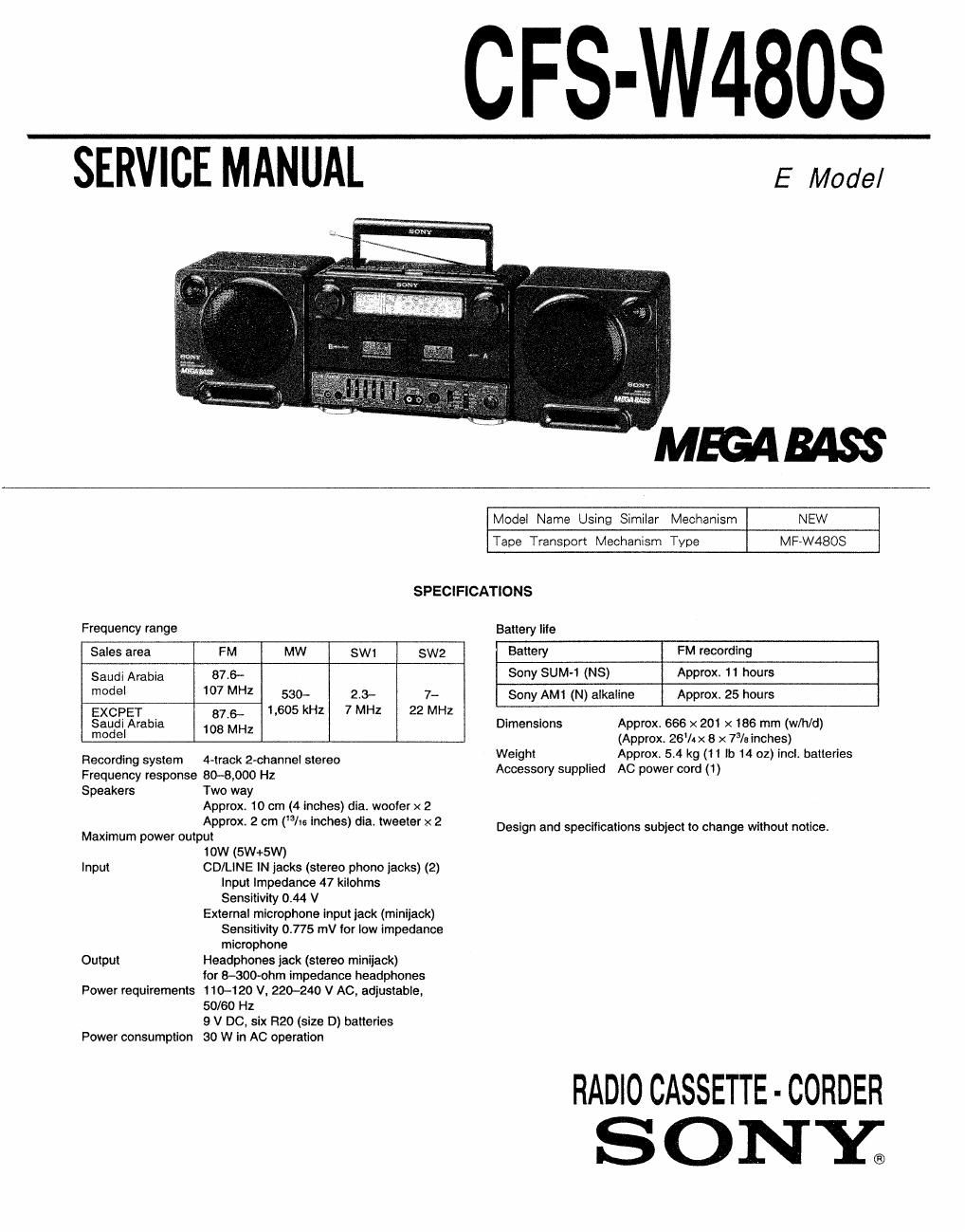

Page 1

CFS-W4803

SERVICE MANUAL E Model

MEGAMSS

Model Name Using Similar Mechanism NEW
Tape Transport Mechanism Type MF»W4808
SPECIFICATIONS
Frequency range Battery life
Sales area FM MW sw1 SW2 Battery FM recording
Saudi Arabia 87.6- Sony SUM-1 (NS) Approx. 11 hours
model 107 MHZ 530- 23- 7- Sony AM1 (N) alkaline Approx. 25 hours
EXCPET 87.6- 1,605 kHz 7 MHZ 22 MHZ
Saudi Arabia 108 MHz Dimensions Approx. 666 x 201 x 186 mm (w/h/d)
m0de' (Approx. 26l4x e X 73/. inches)
Recording system 4-track 2-channet stereo Weight Approx 54 kg (1 I lb 14 oz) Incl. batteries

Frequency response ISO-8,000 Hz Accessory supplied AC power cord (1)

Speakers Two way
Approx. 10 cm (4 inches) dia. woofer x 2
Approx. 2 cm (/15 Inches) dial tweeter x 2
Maximum power output
10w (5W+5W)
Input CD/LINE IN jacks (stereo phono jacks) (2)
Input Impedance 47 kitohms
Sensitivity 0.44 V
External microphone Input iack (minlack)
Sensitivity 0.775 mV tor low impedance
microphone
Output Headphones jack (stereo minijack)
for 8-300~ohm impedance headphones
Power requirements 110-120 V. 220-240 V AC, adjustable,
50/60 Hz
9 V DC, six R20 (size D) batteries
Power consumption 30 W in AC operation

Design and specifications subject to change without notice.

RADIO CASS E-CORDER
S ON 'Y®
