Page 1

-

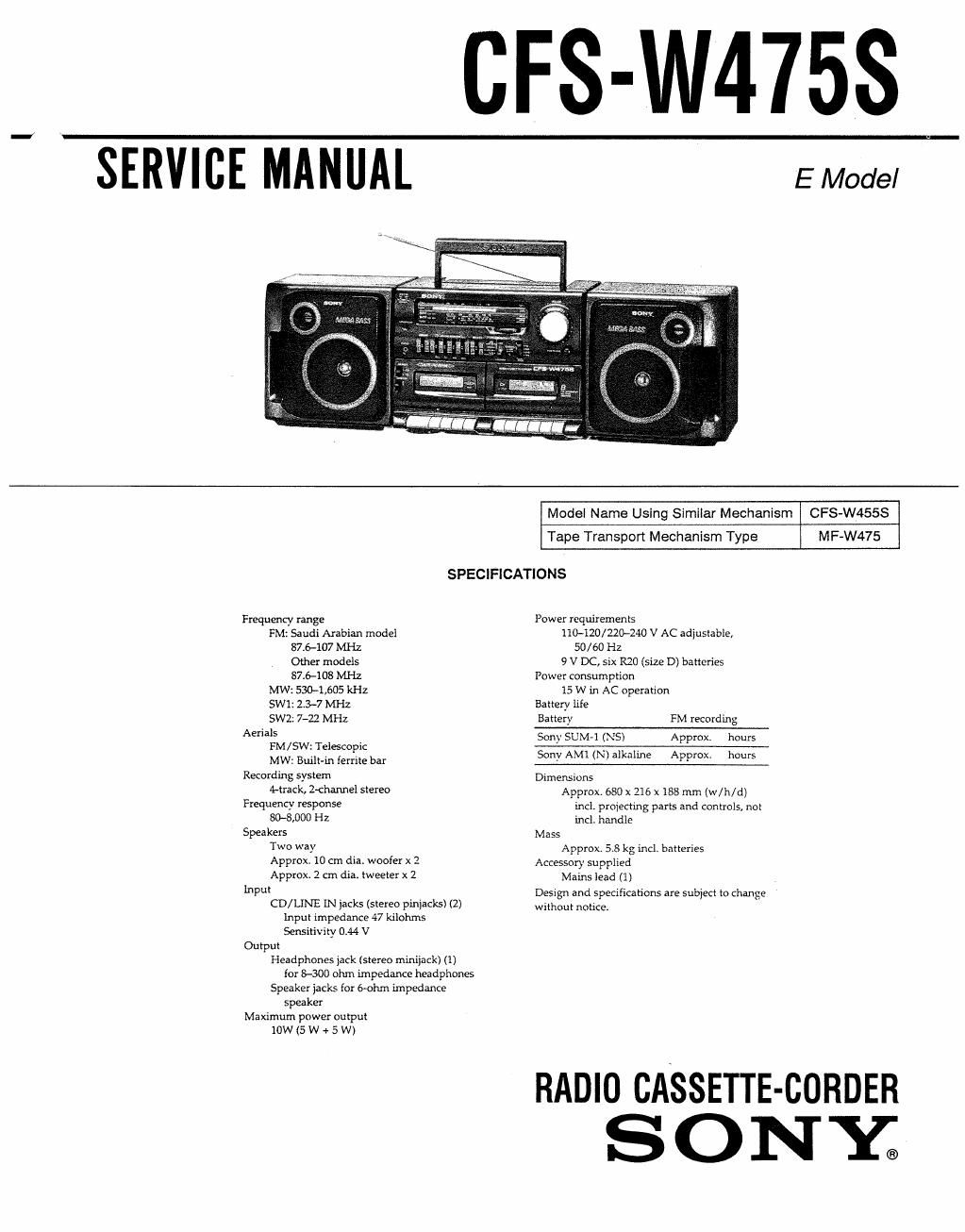

CFS-W475S

\ SERVICE MANUAL

E Model

Model Name Using Similar Mechanism CFS-W455S
Tape Transport Mechanism Type MF-W475

SPECIFICATIONS

Frequency range
FM: Saudi Arabian model
37.6-107 MHZ
Other models
876-] 08 MHZ
MW: 530-1,605 kHz
SW 1: 2.3-7 MHZ
SW2: 7-22 MHZ
Aerials
FM /SW: Telescopic
MW: Built-in ferrite bar
Recording system
4-track, 2~channel stereo
Frequency response
80-84300 Hz
Speakers
Two way
Approx. 10 cm dia. woofer x 2
Approx. 2 cm dia. tweeter x 2
Input
CID/LINE LN iacks (stereo pinjacks) (2)
Input impedance 47 kilohms
Sensitivity 0.44 V
Output
Headphones jack (stereo minijack) (1)
[or 8-300 ohm impedance headphones
Speaker jacks for 6-ohm impedance
speaker
Maximum power output
10W (5 W + 5 W)

Power requirements
110-120/220-240 V AC adjustable,
50/ [)0 Hz
9 V DC, six R20 (size D) batteries
Power Consumption
15 W in AC operation

Battery life
Battery FM recording
80 _'SL'M»1(NS) Approx. hours

Sony AM1(N)alkaiine Approx. hours

Dimensions
Approx. 680 x 216 x lBS mm (w/h/d)
incl. projecting parts and controls, not
incl. handle
Mass
Approx. 5.8 kg incl. batteries
Accessory supplied
Mains lead (1)
Design and specifications are subject to change
without notice.

RADIO CASSETTE-CORDER
ONY;
