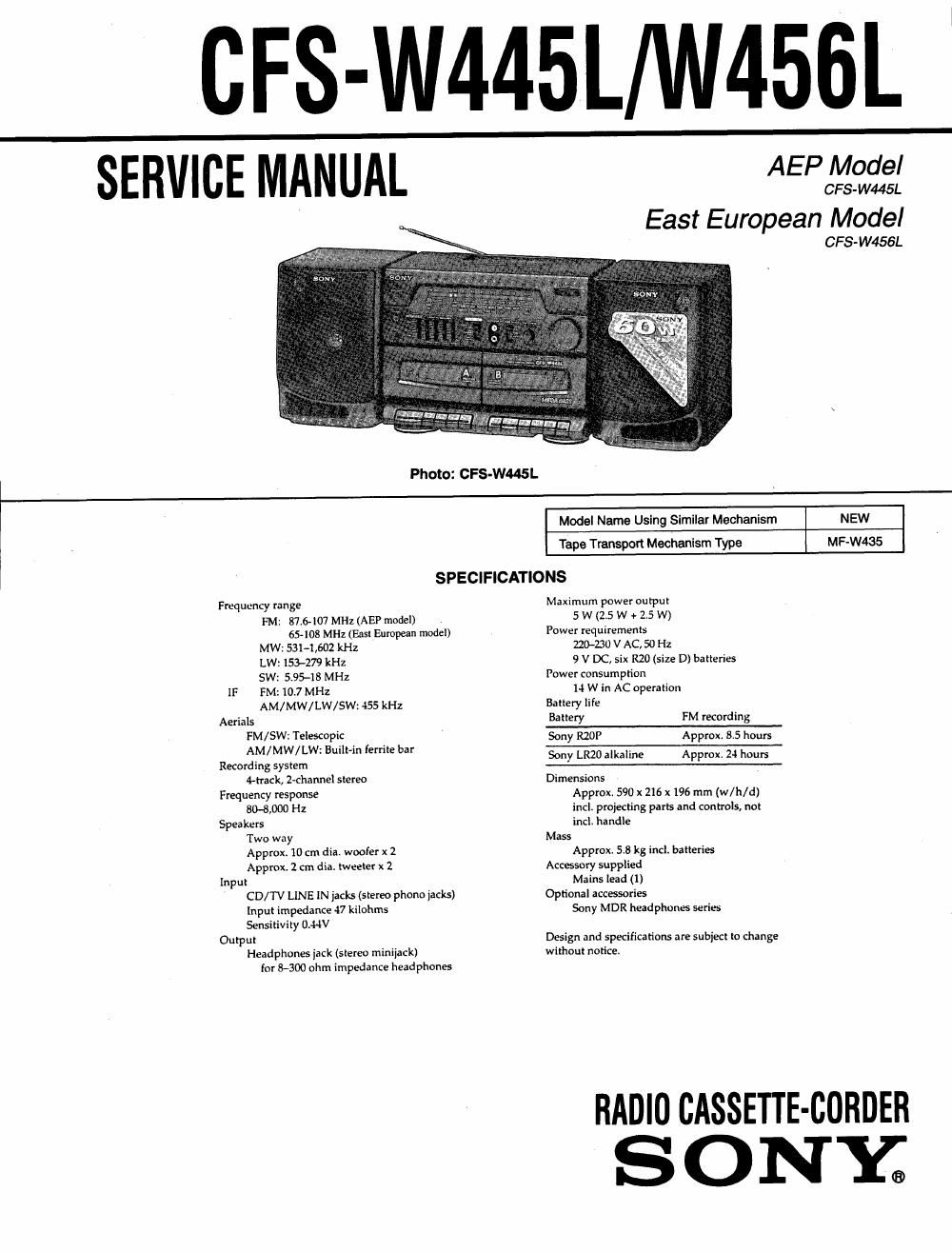

Sony cfs w 456 l service manual

Page 2

3-1.
3-2.

4-1.
4-2,

TABLE OF CONTENTS

GENERAL
Location and Funcfion of Controls ----------- 3
DISASSEMBLY ......................... 4
ADJUSTMENTS
Mechanical Adjustments --------------- 6
Electrical Adjustments
Tape Section ....................... 6
Tuner Section ...................... 8
DIAGRAMS

I Printed Wiring Boards ----------------- 1]
Schematic Diagram ................... l 3
EXPLODED VIEWS .................... l8
ELECTRICAL PARTS LIST ~~~~~~~~~~~~ 25

SAFETY-RELATED COMPONENT WARNING"

OOMPONENTS IDENTIFIED BY MARK A 0R DOTI'ED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS IJST ARE CRI110AL TO SAFE
OPERA'I10N. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
