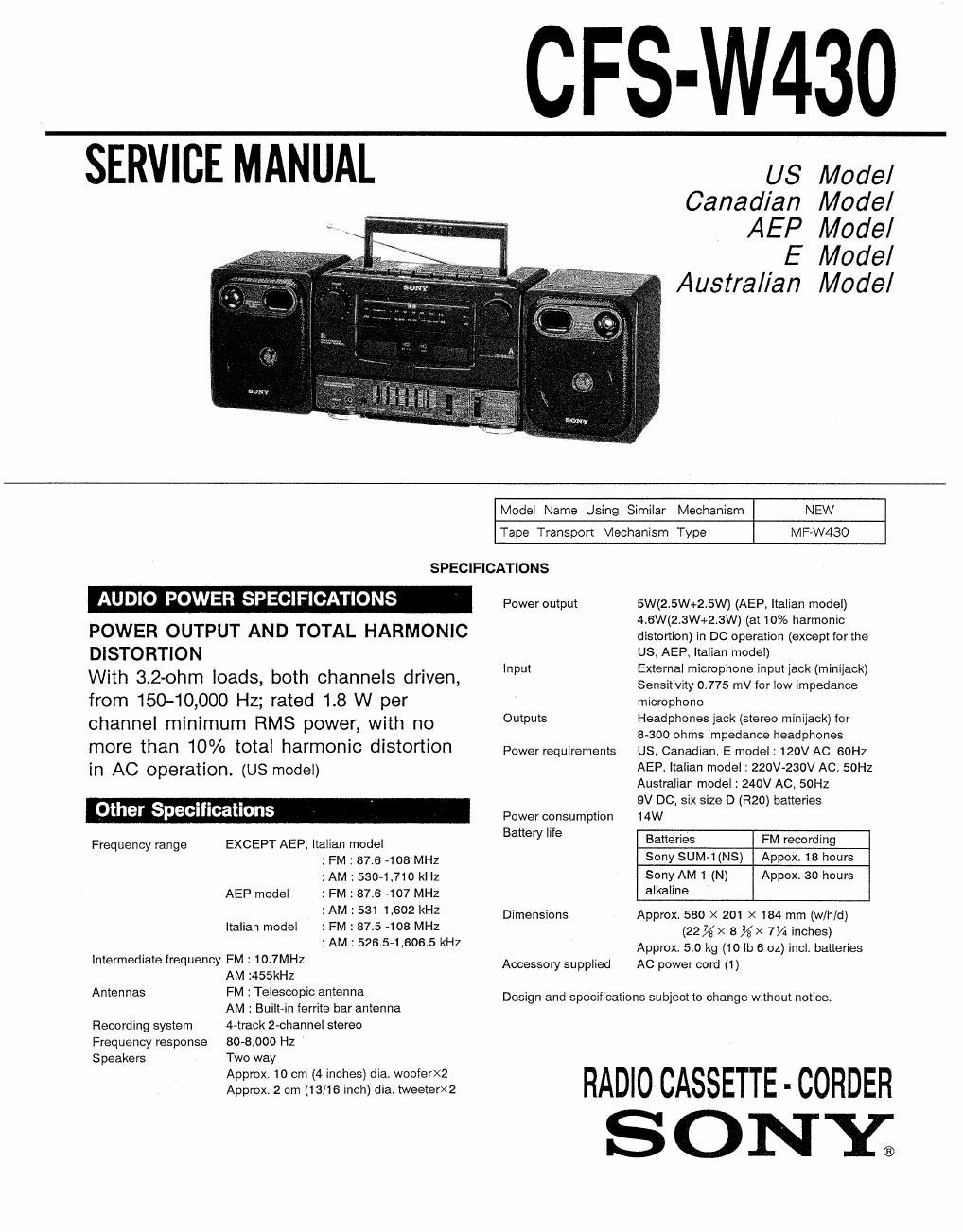

Page 1
CFS-W430
SERVICE MANUAL
US Model
Canadian Model
AEP Model
E Model
Austral/an Model
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION
With 3.2~ohm loads, both channels driven,
from 150-10,000 Hz; rated 1.8 W per
channel minimum RMS power, with no
more than 10% total harmonic distortion
in AC operation. (US modeI)
Other Specifications
EXCEPT AEP. Italian model
: FM : 87.6 ~108 MHz
: AM : 5301710 kHz
AEP model : FM : 87.6 -107 MHZ
: AM : Sat-1,602 kHz
Italian model : FM : 87.5 -108 MHZ
1 AM : 5265-1 .6065 kHZ
Frequency range
Intermediate frequency FM : 10.7MHZ
AM :455kHz
FM : Telescopic antenna
AM : Built»in ferrite bar antenna
4-track 2-channel stereo
80-3000 HZ
Two way
Approx, 10 cm (4 inches) dia. wooierxz
Approx. 2 cm (13/16 inch) dia. tweeterx2
Antennas
Recording system
Frequency response
Speakers
Model Name Using Similar Mechanism NEW
Tape Transport Mechanism Tvpe MF-W430
Power output 5W(2,5W+2,5W) (AEP. Italian model)
4.6W(213W+213W) (at 10% harmonic
distortion) in DC operation (except for the
US, AEP. Italian model)
Input External microphone input jack (miniiack)
Sensitivity 0,775 mV for low impedance
microphone
Outputs Headphones jack (stereo minijack) for
8-300 ohms impedance headphones
US Canadian, E model: 120V AC. 60Hz
AEP. Italian model : 220V-230V AC, 50Hz
Australian model : 240V AC, 50Hz
9V DC, six size D (R20) batteries
Power consumption 14W
Power requirements
Battery life Batteries FM recording
Sony SUM-1 (NS) Appoxi 18 hours
Sony AM 1 (N) Appox. 30 hours
alkaline
Dimensions Approx. 580 x 201 X 184 mm (w/h/d)
(22%X 5 %>< 7'/4 inches)
Approx, 5.0 kg (10 lb 6 oz) incI. batteries
Accessory supplied AC power cord (1)
Design and specifications subject to change without notice.
RADIOCASSETTE-CORDER
S 0 NE
Page 2
TABLE OF CONTENTS
Section Title Page
Specifications ~~~~~~~~~~~~~~~~~~~~~~~~~~~ - ........................... . ..... 1
1. GENERAL
Location and Function of Controls ................................. 3
Playing a Tape (either deck)
Listening to the Radio ~
Recording (deck B only)~
Tape Dubbing (deck A to deck B) ................................. 5
2. DISASSEMBLY
244 Main board ...................................................... 6
2-2. Gear Pulley
2-3. Mechanism Block
2-4. Tuning chassis
2-5. Cassette Holder ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ................. 7
3. DIAL POINTER INSTALLATION ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 8
4. ADJUSTMENTS
4-1. Mechanical Adjustments ~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 9
4-2. Electrical Adjustments ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 9
5. DIAGRAMS
5-1, Primed Wiring Boards ,
5-2. Schematic Diagram
6. EXPLODED VIEWS
6-]. General Section-1 ~~
6~2. General Section~2
6-3, Mechanism Section-1
6-4. Mechanism Section-Z
7. ELECTRICAL PARTS LIST ................................... 25
MODEL IDENTIFICATION
- Model Number Label -
SONYa
MODEL NO. CFS-W430
RADIO CASSETTE >CORDER
//
US, Canadian, E model : AC 120V~60Hz
AEP, Italian model : AC 220-230V~50Hz
Australian model : AC 240V~50Hz
l3
l7
SAFETY CHECK-OUT (US Model)
After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:
Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakagei Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5 mA (500 microampers). Leakage
current can be measured by any one of three
methods.
I. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers instructions to use these instru-
menls.
L)
A battery/operated AC milliammeler, The Data
Precision 245 digital multimeter is suitable for
this job
3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The limit" indication is 0.75 V, so
analog meters must have an accurate low-
vollage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have 2 2V AC range are
suitable, (See Fig. A)
To Exposed Metal
Part: on set
F
AC
0.!5uF $1.5M; VDltmeter
(0.75 W
F Earth Ground
.L
Fig. A. Using an AC voltmeter to check AC leakages
SA FETY-R E LATED COMPONENT WARNING! !
COMPONENTS IDENTIFIED BY MARK A OR DOTTEE
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITI'
SONV PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB
LISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA sécumrr
DE FONCTIONNEMENT. NE REMPLACER css com
POSANTS oue PAR DES PIECES SONY DONT LES
NUMEROS som DONNés DANS cs MANUEL 0L
DANS LES SUPPLEMENTS PuaLiés PAR SONY.
