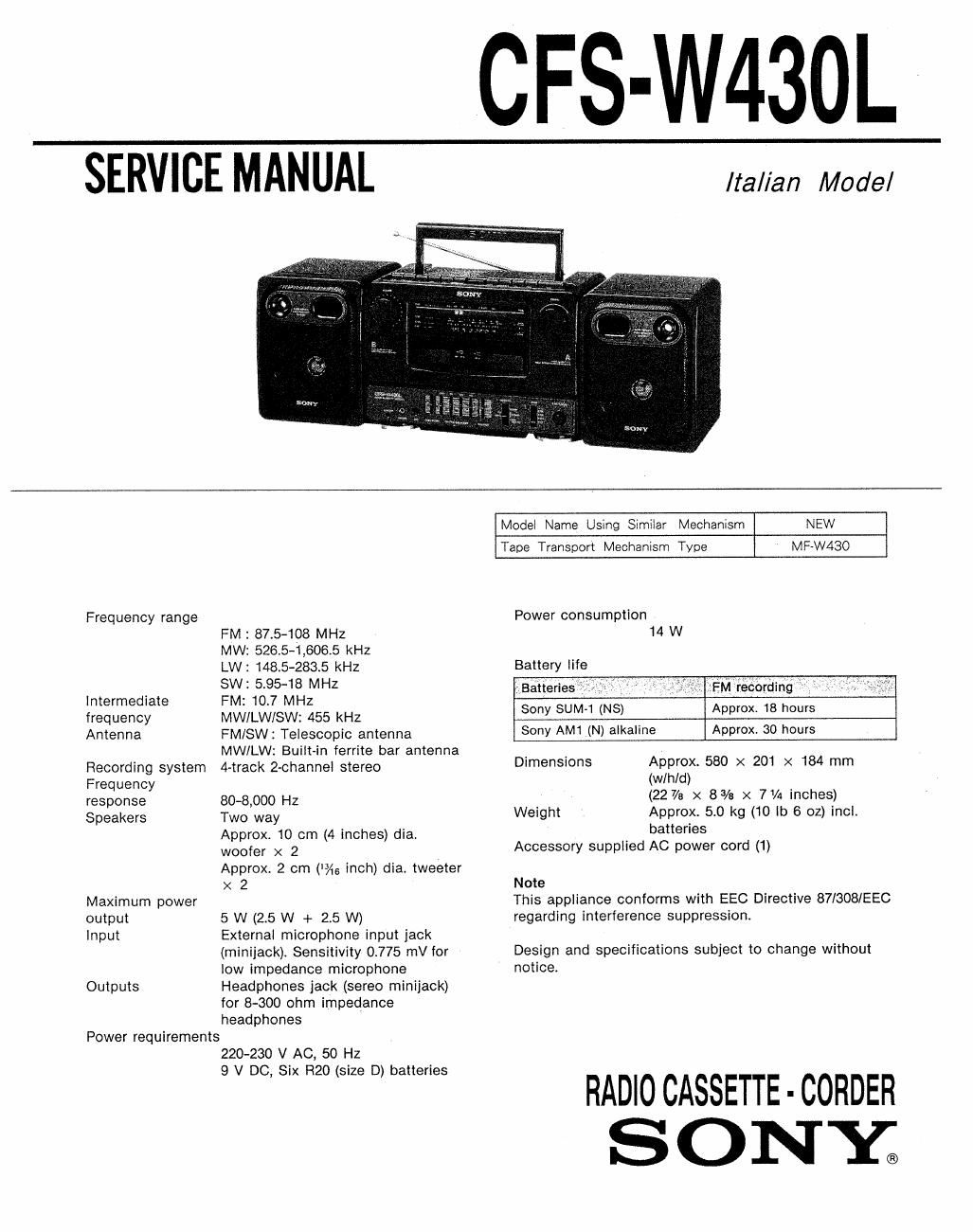

Sony cfs w 430 l service manual
This is the 21 pages manual for sony cfs w 430 l service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cfs w 430 l service manual (Ocr-read)
Page 2
CFS-W430L
TABLE OF CONTENTS
Section Title Page
Specifications ............................................................... 1
I. GENERAL
Location and Function of Control
Tape Playback (either deck
Listening to the Radio
Recording (deck B only)~~
Tape Dubbing (deck A to deck B)
CnCnAlimL'»
2. DISASSEMBLY
2.1_ Main board ....................................................... 6
22. Gear Pulley oooooooooo ""6
2-3. Mechanism Block H 6
2-4. Tuning chassis ....7
ZS. Cassette Holder" ...7
3. DIAL POINTER INSTALLAT|ON .............................. 8
4. ADJUSTMENTS
4.1, Mechanical Adjustments ....................................... 9
4.2, ElectriCal Adjustments ......................................... 9
5. DIAGRAMS
5-1. Printed Wiring Boards ~
5-2. Schematic Diagram
6. EXPLODED VIEWS
6-1. General Section~1 ..
6-2. General Sectionaz ~
6-3i Mechanism Section-I
6-4. Mechanism Section-2
7. ELECTRICAL PARTS LIST ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 25
SAFETY-RELATED COMPONENT WARNINGI!
COMPONENTS IDENTIFIED BV MARK A on DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB
LISHED BY SONY.
