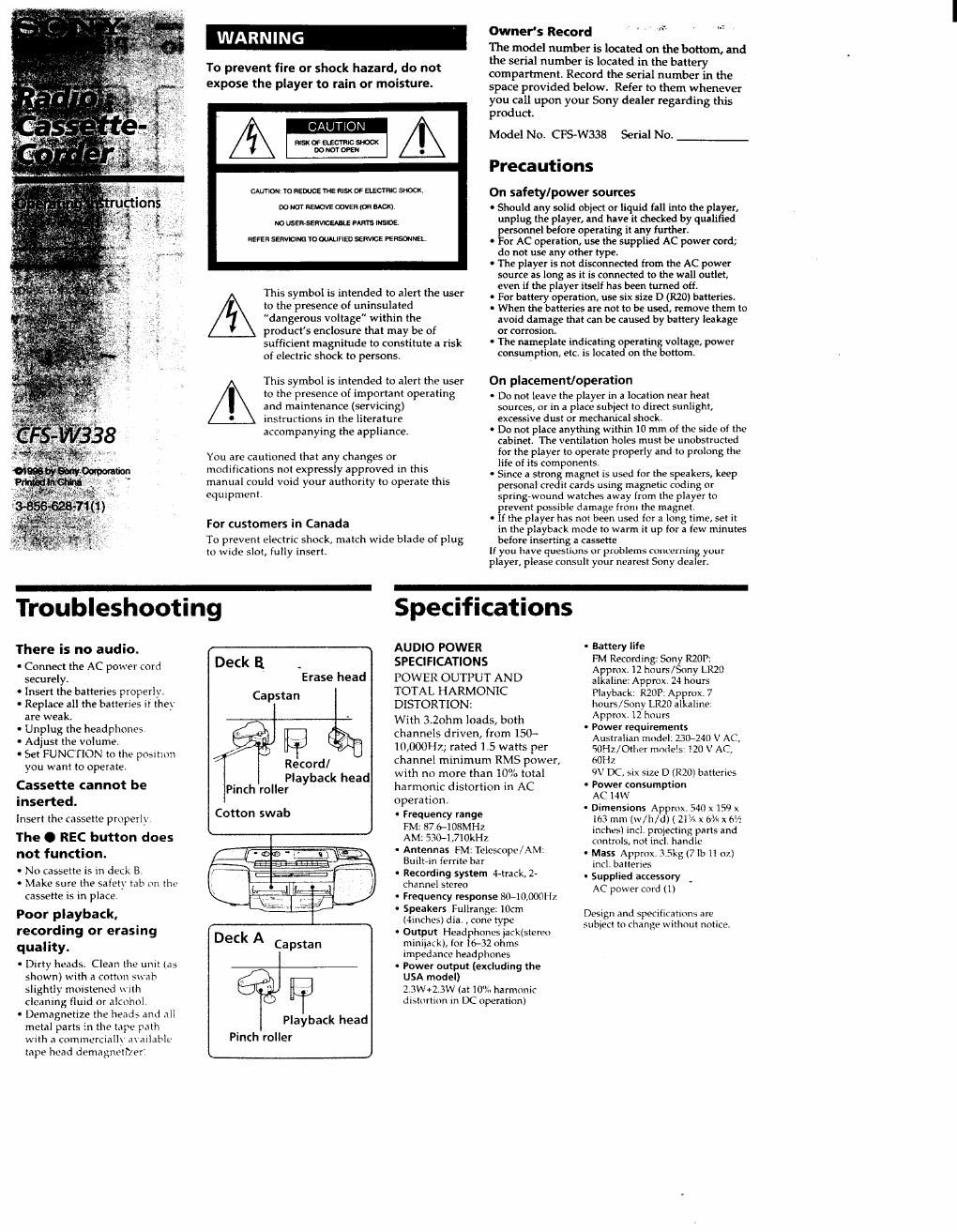

Page 1

To prevent fire or shock hazard, do not
expose the player to rain or moisture.

CAUTlON

astoeaecmtcstm
oomoreu

charm, to Revues rue RISK or ELECIWC snout,
no no! Renoir: nova (on W)
no USER-Wm em also:
REFER Wm DUNJFIED mic: PEWEL

This symbol is intended to alert the user
to the presence of uninsulated
"dangerous voltage within the
products enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.

This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing)
instructions in the literature
accompanying the appliance.

You are cautioned that any changes or
modifications not expressly approved In this
manual could void your authority to operate this
equipment

For customers in Canada

To prevent electric shock, match wide blade of plug
to wide slot, fully insert.

Owner's Record "

The model number is located on the bottom, and
the serial number is located in the battery
compartment. Record the serial number in the
space provided below. Refer to them whenever
you call upon your Sony dealer regarding this
product.

Model No. CFS-W338 Serial No.

Precautions

0n safety/power sources

0 Should any solid object or liquid fall into the player,
unplug the player, and have it checked by qualified
personnel before operating it any furthert

0 For AC operation, use the supplied AC power cord;
do not use any other type.

r The player is not disconnected from the AC power
source as long as it is connected to the wall outlet,
even it the player itself has been turned ctr.

- For battery operation, use six size D (R20) batteries

- When the batteries are not to be used, remove them to
avoid damage that can be caused by battery leakage
or corrosion.

- The nameplate indicating operating voltage, power
consumption, etc. is located on the bottom.

On placement/operation

- Do not leave the player in a location near heat
sources, or in a place subjecl to direct sunlight,
excessive dust or mectunical shock.

- Do not place anything within 10 mm of the side or the
cabinet. The ventilation holes must be unobstructed
tor the player to operate properly and to prolong the
life of its components.

~ Since a strong magnet is used for the speakers, keep
personal credit cards using magnetic coding or
spring-wound watches away [tom the player to
prevent possible damage front the magnet.

. If the player has not been used for a long time, set it
in the playback mode to warm it up for a few minutes
before inserting a cassette

If you have questions or prohlems concerning your

player, please consult your nearest Sony dealer.

Troubleshooting Specifications

There is no audio.

- Connect the AC power cord
securely.

- Insert the batteries properly.

I Replace all the batteries it they
are weak.

0 Unplug the headphones

0 Adjust the volume.

- Set FUNCTION to the position
you want to operate,

Cassette cannot be
inserted.
Insert the cassette properly

The O REC button does
not function.
- No cassette is in deck 5

. Make sure the safety tab on the
cassette is in place

Poor playback,
recording or erasing
quality.

- Dirty heads. Clean the unit (as
shown) with a comm sit-ah
slightly moistened \\'ltIl
cleaning fluid or alcohol

Demagnetize the heads and all
metal parts in the tape path
with a commercially aiatlahle
tape head demagneitler:

Deck 3 .

Erase head

Capstan

Playback head
Pinch roller

AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND
TOTAL HARMONIC
DISTORTION:

With 3.20hm loads, both
channels driven, from 150~
10,000Hz; rated 1.5 watts per
channel minimum RMS power,
with no more than 10% total
harmonic distortion in AC
operation.
- Frequency range
FM: 87,6r108MHz
AM: 530-1,7IOkHz
I Antennas FM: Tolescnpt/ AM:
Built-tn ferrite liar
- Recording system 4-track, 2-
channel stereo
- Frequency response 8040,000H7.
- Speakers Fullrange: 10cm
(4lnche5) dia. , cone type
t Output Headphones jack(stereo
miniiack), tor 16-32 ohms
impedoncc headphones
- Power output (excluding the
USA model)
2 3W+Z.3W (at 10% harmonic
dlslnltlon In DC operation)

- Battery life
FM Recording: Sony RZOP:
Approx. iz hours/Sony Lthl
alkaline: Approx, 24 hours
Playback: R20P1Approx,7
hours/Sony LRZO alkaline
Approx.12 hours

. Power requirements
Australian model, 230-240 V AC,
iOHZ/Other models 120 V AC,
MHZ
w DC, six 5119 D (R20) batteries

- Power consumption
AC 14W

. Dimensions Approx. 540 x 159 x
153 min [w/h/d) ( 215; x 6% x til/r
inches) incl projecting parts and
controls, not incl. handle

~ Mass Approx, 3,5kg (7 lb ii oz)
incl, batteries

- Supplied accessory _
AC power cord (1)

Design and specifications are
Sub)ect to change wtthnut notice.
