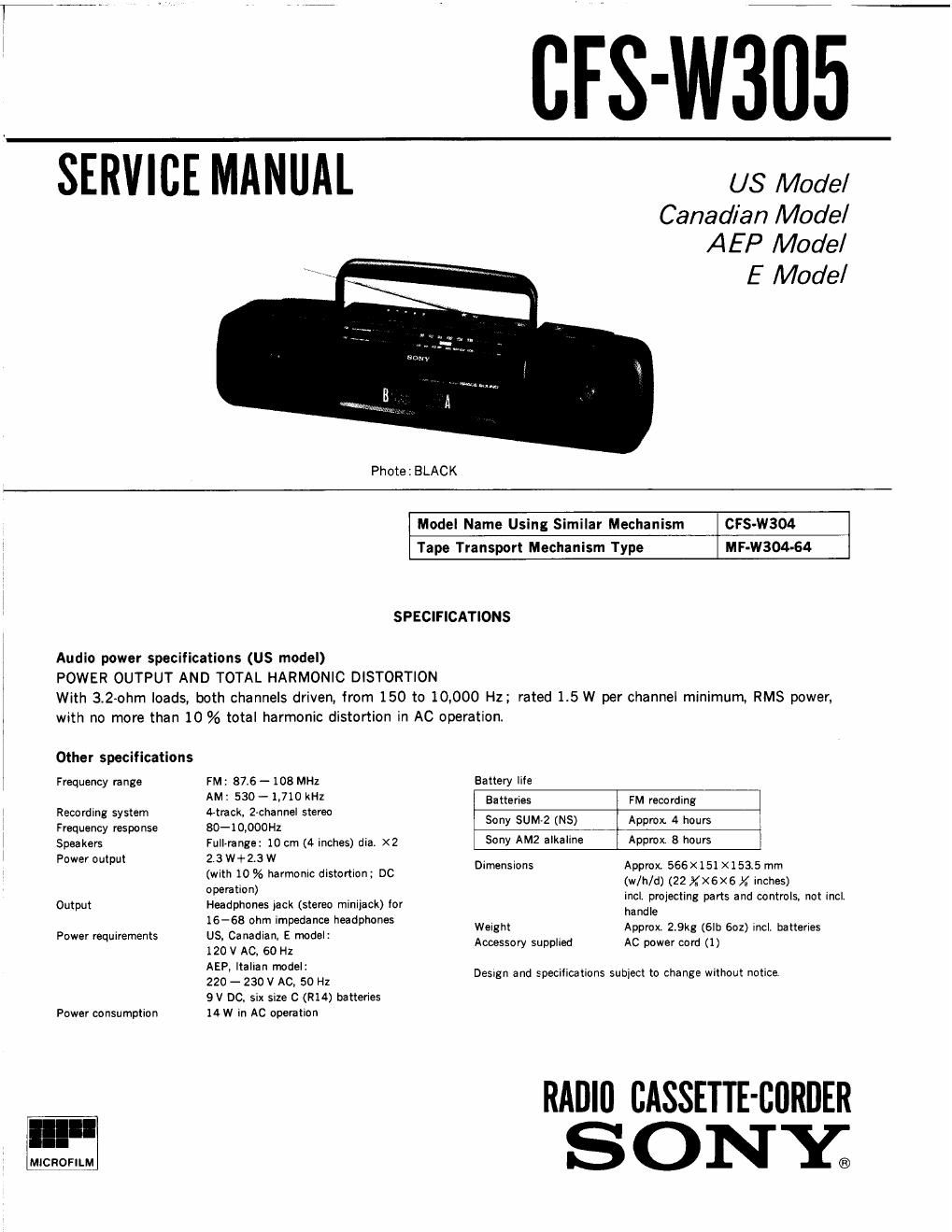

Page 1
CFS-W3Il5
US Model
Canadian Model
AEP Model
E Model
SERVICE MANUAL
PhotezsLACK
CFS-W 3 04
M F-W304-64
Model Name Using Similar Mechanism
Tape Transport Mechanism Type
SPECIFICATIONS
Audio power specifications (US model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
with no more than 10 % total harmonic distortion in AC operation,
Other specifications
Frequency range
I Recording system
I Frequency response
I Speakers
I Power output
Output
Power requirements
Power consumption
MICROFILM
FM: 816 - 108 MHZ
AM: 530 -- 1,710 kHz
4track, 2-channel stereo
80-10,000Hz
FuIIArange: 10 cm (4 inches) dia. X2
2.3 W+ 2.3 W
(with 10 % harmonic distortion; DC
operation)
Headphones jack (stereo minijack) for
16-58 ohm impedance headphones
US, Canadian, E model:
120 V AC, 60 Hz
AEP, Italian model:
220 - 230 V AC, 50 Hz
9V DC, six size 0 (R14) batteries
14W in AC operation
Battery life
I
I With 3.2-ohm loads, both channels driven. from 150 to 10,000 Hz; rated 1.5 W per channel minimum, RMS power,
I
I
I
Ba tte ries
FM recording
Sony SUM-2 (NS)
Approx. 4 hours
Sony AM2 alkaline
Approx 8 hours
Dimensions
W sis ht
Accessory supplied
Approx. 566x151><153o5 mm
(Wlh/d) (22 x x6><6 }{ inches)
incL projecting parts and controls. not incl.
handle
Approx 2.9kg (Bib 602) inclt batteries
AC power cord (1)
Design and specifications suhiect to change without notice.
RADIII CASSETTE-CHRIJER
SONY)
