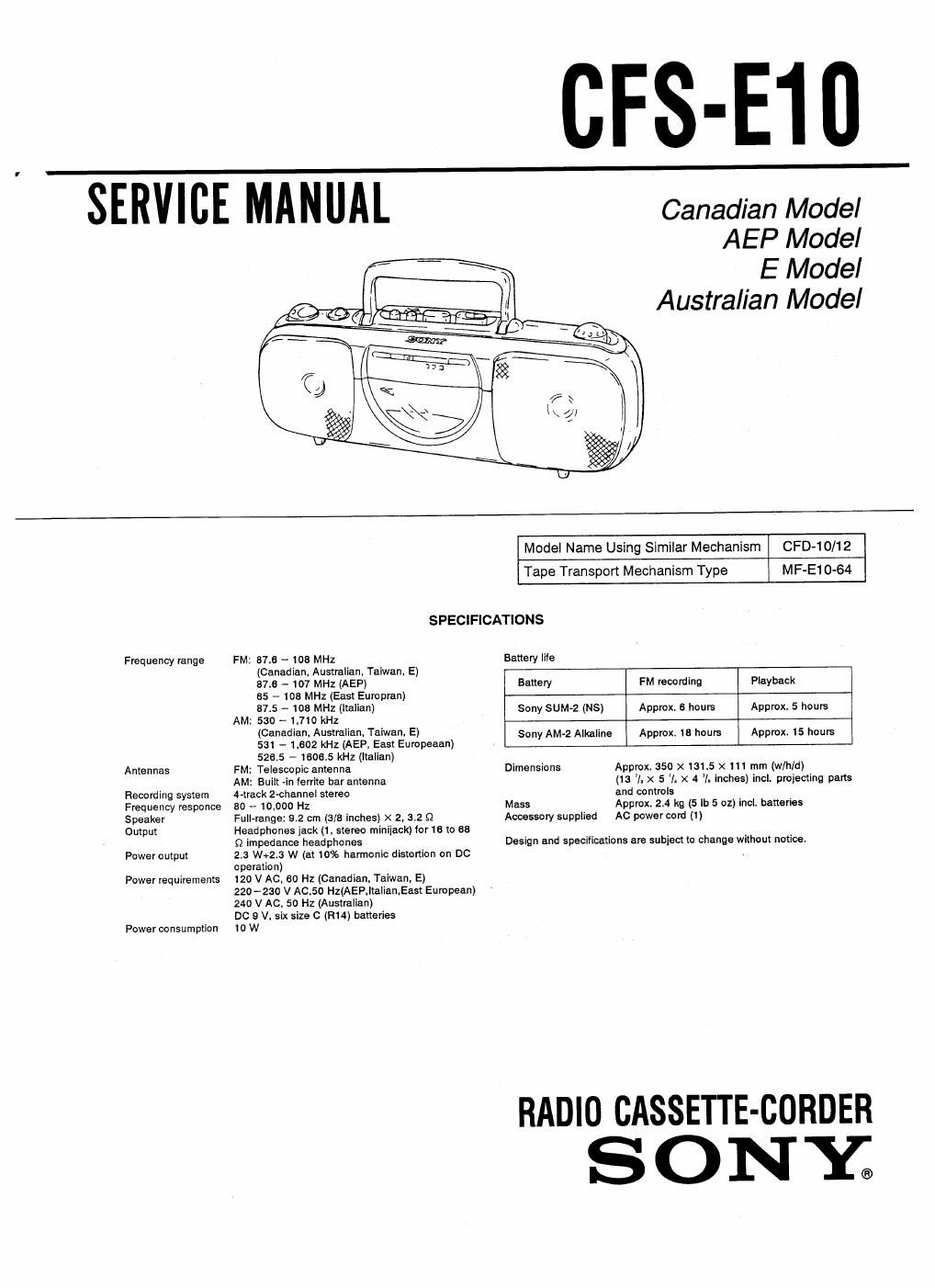

Page 1

CFS-E10

SERVICE MANUAL

Canadian Model
AE P Model

E Model
Australian Model

Frequency range

Antennas
Recording system
Frequency responce
Speaker

Output

Power output

Power requirements

Power consumption

Model Name Using Similar Mechanism CFD-10/12

Tape Transport Mechanism Type MF-E10-64
SPECIFICATIONS
FM: 87,6 - 103 MHZ Battery life
(Canadian. Australian. Taiwan. E)
87.6 - 107 MHz (AEP) Battery FM recording Playback
65 - 103 MHz (East Europran)
375 05 MHZ (Italian) Sony SUM»2 (NS) Approx. 6 hours Approx. 5 hours

AM: 530 -- 1,710 kHz
(Canadian, Australian. Taiwan, E)
531 - 1,802 kHz (AEP, East Europeaan)
526.5 - 1606.5 kHz (Italian)
FM: Telescopic antenna
AM: Built -in ferrite bar antenna
Astrack 2-channei stereo
80 - 10.000 HZ
Fu||~range: 9.2 cm (3/8 inches) X 2, 3.2 Q
Headphones jack (1, stereo miniiack) ior1e to 68
Q impedance headphones
2.3 W+2.3 W (at 10% harmonic distortion on DC
operation)
120 V AC. 60 Hz (Canadian. Taiwan. E)
220-230 V AC.50 Hz(AEP,Italian.East European)
240 V AC, 50 Hz (Australian)
DC 9 V. six size C (R14) batteries
10 W

Sony AM<2 Alkaline Approx, 15 hours Approx. 15 hours

Dimensions Approx. 350 X 131.5 x 111 mm (wlhld)
(13 Yl. X 5 l. X 4 I. inches) incl. projecting parts
and controls

Mass Approx. 2.4 kg (5 lb 5 oz) incl. batteries

Accessory supplied AC power cord (1)

Design and specifications are subject to change without notice.

RADIO CASSETTE-BORDER
ONY;

Page 2

TABLE OF CONTENTS

0 Model Idantlflcatlon
Section M 11152

Specifications ..................................
Model Identification

MODEL N0. CFS-E10
RADIO CASSETTE-CORDEFI

1. GENERAL W

Pans Identification ------------------------------ 2
2. DISASSEMBLY ------------------------ 3
3. MECHANICAL ADJUSTMENTS --------- 5
4. ELECTRICAL ADJUSTMENTS ~~~~~~~~~~ 5 E, Canadian, Taiwan modeleC120 V 60 Hz 10 W
4-]. Tape Recorder Section 5 Australian model: AC 240 V 50HZ 10 W
4-2 Tuner Section ............................ 6 AEP. East European,
Italian model: AC 220 -- 230 V ~50 Hz 10 W
5. DIAGRAMS
51, Block Diagram ........................... 7
5-2. Printed Wiring Boards --------------------- 15
5-3, Schematic Diagram ....................... 15
6. EXPLODED VIEWS -------------------- 20
7. ELECTRICAL PARTS LIST ------------ 24
SECTION 1
GENERAL

0 Parts Identification

FUNCTION selector CPR/BA" Indicator

TONE knob
VOLUME knob

Built-in microphone

Tape operation button

TUNING knob
PHONES jack

AC IN jack

Cassette holder
