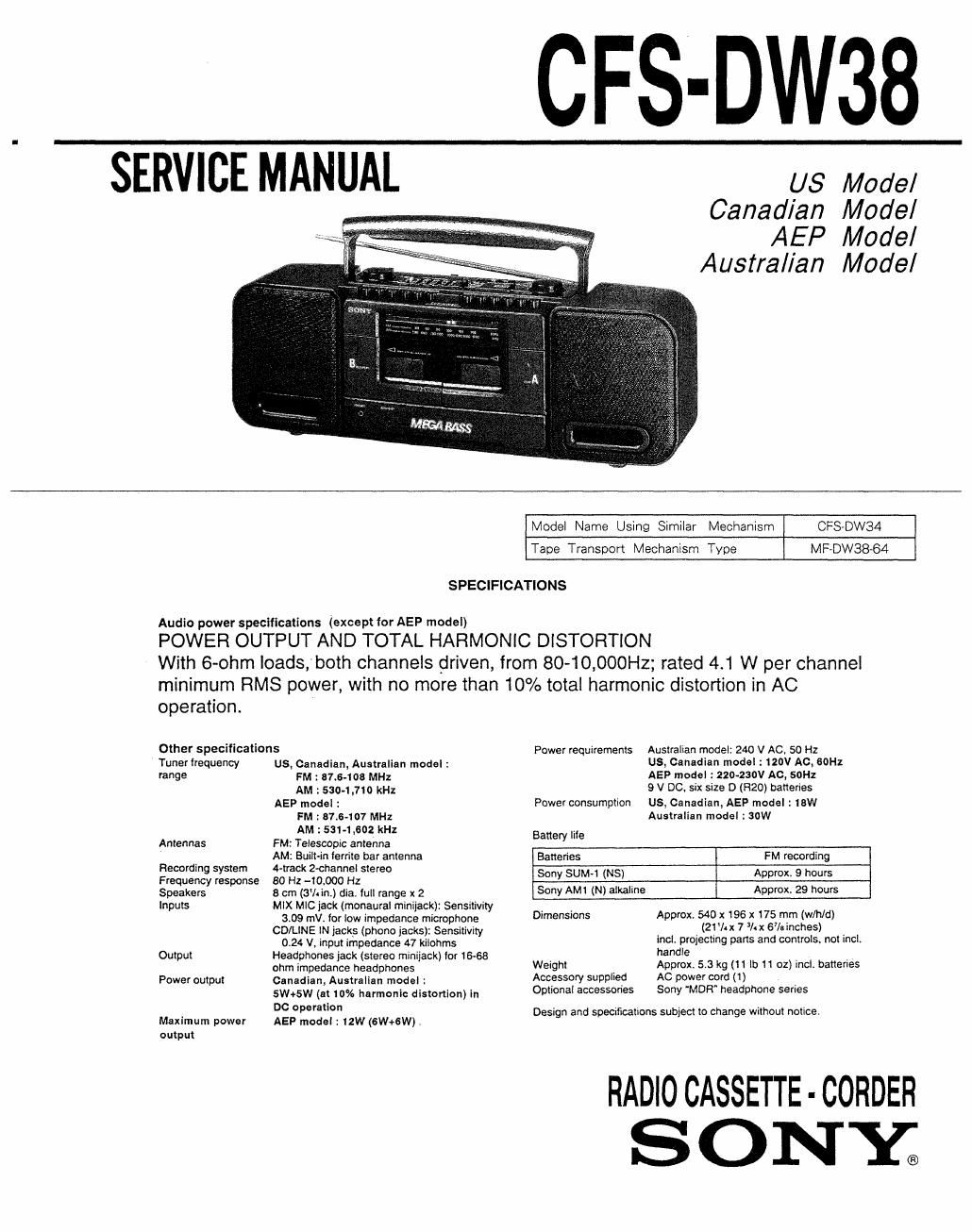

Page 1

CFS-DW38

SERVICE MANUAL

US Model
Canadian Model
AEP Model
Australian Model

Model Name Using Similar

Mechanism CFS-DW34

Tape Transport Mechanism Type

M F-DW38-64

SPECIFICATIONS

Audio power specifications (except for AEP model)

POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 6-ohm loads,both channels driven, from 80-10,000Hz; rated 4.1 W per channel
minimum RMS power, with no more than 10% total harmonic distortion in AC

operation.

Other specifications

Tuner frequency
range

Antennas
Recording system
Frequency response

Speakers
inputs

Output

Power output

Maximum power
output

us, Canadian, Australlan model ;
FM : 87.8-108 MHZ
AM 2 $304,710 kHz
AEP model :
FM : 87.6-107 MHz
AM 1531-1502 kHz
FM: Telescopic antenna
AM: Built-in ferrite bar antenna
4-track Z-channet stereo
80 H2 -I0.000 Hz
8 cm (31. in.) die. lull range x 2
MIX MIC iack (monaural minijack): Sensitivity
303 mV. tor low impedance microphone
CD/LINE 1N jacks (pheno jacks): Sensitivity
0.24 V. input impedance 47 kilohms
Headphones jack (stereo miniiack) Ior 1568
ohm impedance headphones
Canadian, Australlan model :
5W+5W (at 10% harmonic distortion) in
DC operation
AEP model : 12W (6W+6W) .

Power requirements

Australian model: 240 V AC, 50 Hz

us, Canadian model : 120V Ac, 60H:
AEP model : 220-230V AC. 50H:
9 V DC. six size D (H20) batteries

Power consumption

Us, Canadian. AEP model: 18W

Australian model : 30W

Battery life

Batteries

FM recording

Sony SUM-t (NS)

Approx 9 hours

Sony AM1 (N) alkaline

Approx. 29 hours

Dimensions

Approx. 540x 196 x 175 mm (w/h/d)

(21l«x 7 VAX 67. inches)

incl. projecting parts and controls not incl.

handle
Weight
Accessory supplied
Optional accessories

Approx 5.3 kg (11 lb i1 oz) incl. batteries
AC power cord (1)
Sony MDR' headphone series

Design and specifications subject to change without notice.

RADIO CASSETTE - CORDER

SONYQ
