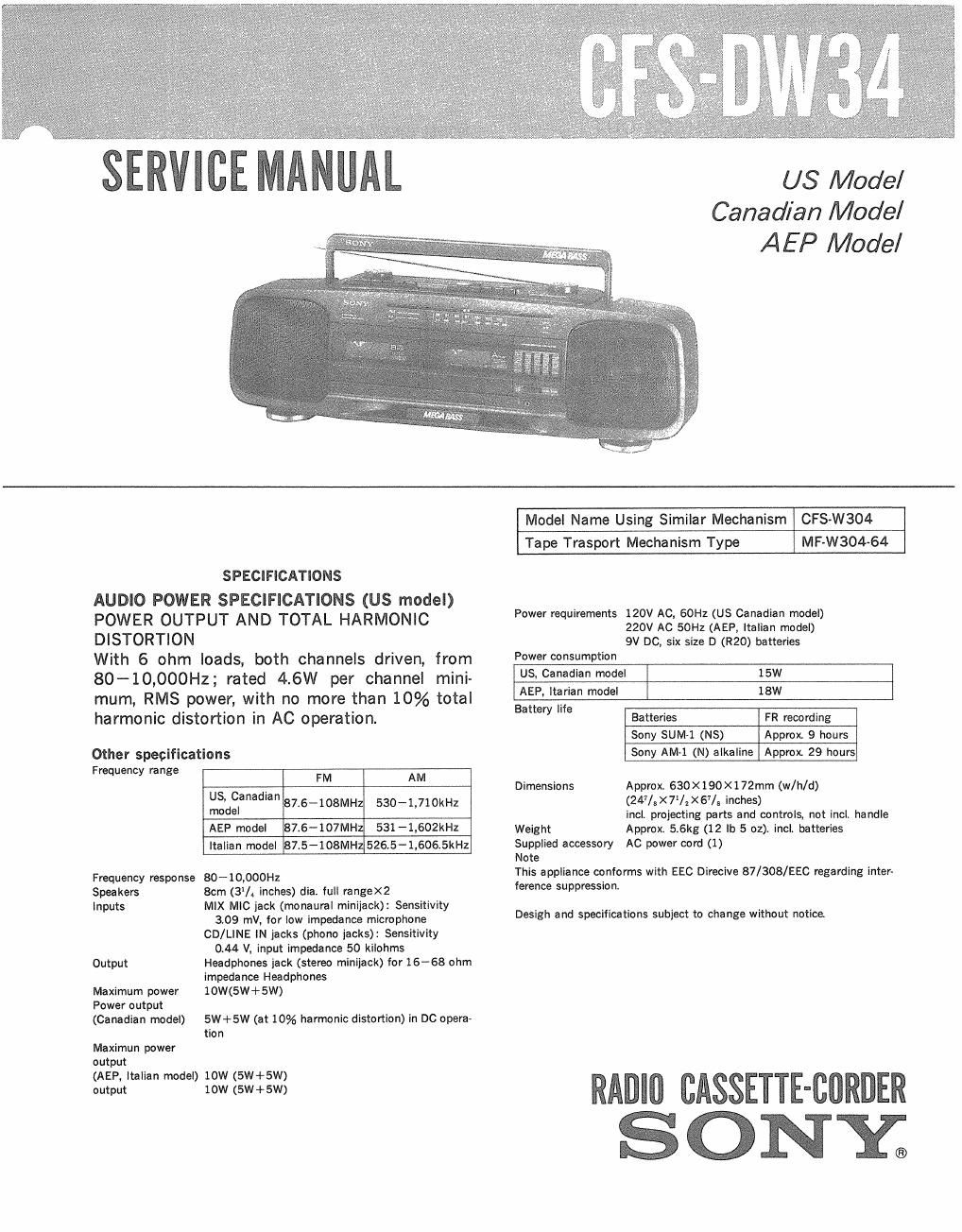

Page 1
US Model
Canadian Model
AEP Model
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS (US model)
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION
With 6 ohm loads, both channels driven, from
80-10,000Hz; rated 4.6W per channel mini-
mum, RMS power, with no more than 10% total
harmonic distortion in AC operation.
Other specifications
Frequency range
Frequency response
Spea kers
Inputs
Output
Maximum power
Power output
(Canadian model)
Maximun power
output
(AEP, Italian model)
output
FM AM
5' Emma" 87.6-108MH2 530-1,710kHz
model
AEP model 87.6-107MHZ 531 -1,602kHz
Italian model 87.5 ~ 1 OSMHI 526.5 -1,606.5kHz
80-10,000Hz
86m (3/, inches) dia. lull rangeXZ
MIX MlC jack (monaural minijack): Sensitivity
309 mV, for low impedance microphone
CD/LINE IN jacks (phono jacks): Sensitivity
044 V, input impedance 50 kilohms
Headphones jack (stereo miniiack) for 16-68 ohm
impedance Headphones
10W(5W+5W)
5W+5W (at 10% harmonic distortion) in DC opera-
tion
10W (5W+5W)
10W (5W+5W)
Model Name Using Similar Mechanism CFS-W304
Tape Trasport Mechanism Type MF-W304-64
Power requirements 120V AC, 60Hz (US Canadian model)
220V AC 50Hz (AEP, Italian model)
9V DC, six size D (R20) batteries
Power consumption
US, Canadian model 15W
AEP, ltarian model 18W
Battery life , .
Batteries FR recording
Sony SUM-1 (NS) Approx 9 hours
Sony AM-l (N) alkaline Approx. 29 hours
Dimensions Approx. 630x190X172mm (w/h/d)
(247/,;><7/2X67/a inches)
incl. projecting parts and controls, not incl. handle
Weight Approx. 56kg (12 lb 5 oz). incl batteries
Supplied accessory AC power cord (1)
Note
This appliance conforms with EEC Direcive 87/308/EEC regarding inter-
ference suppression.
Design and specifications subject to change without notice
RADlll CASSETTE-BORDER
S 0 NY.
