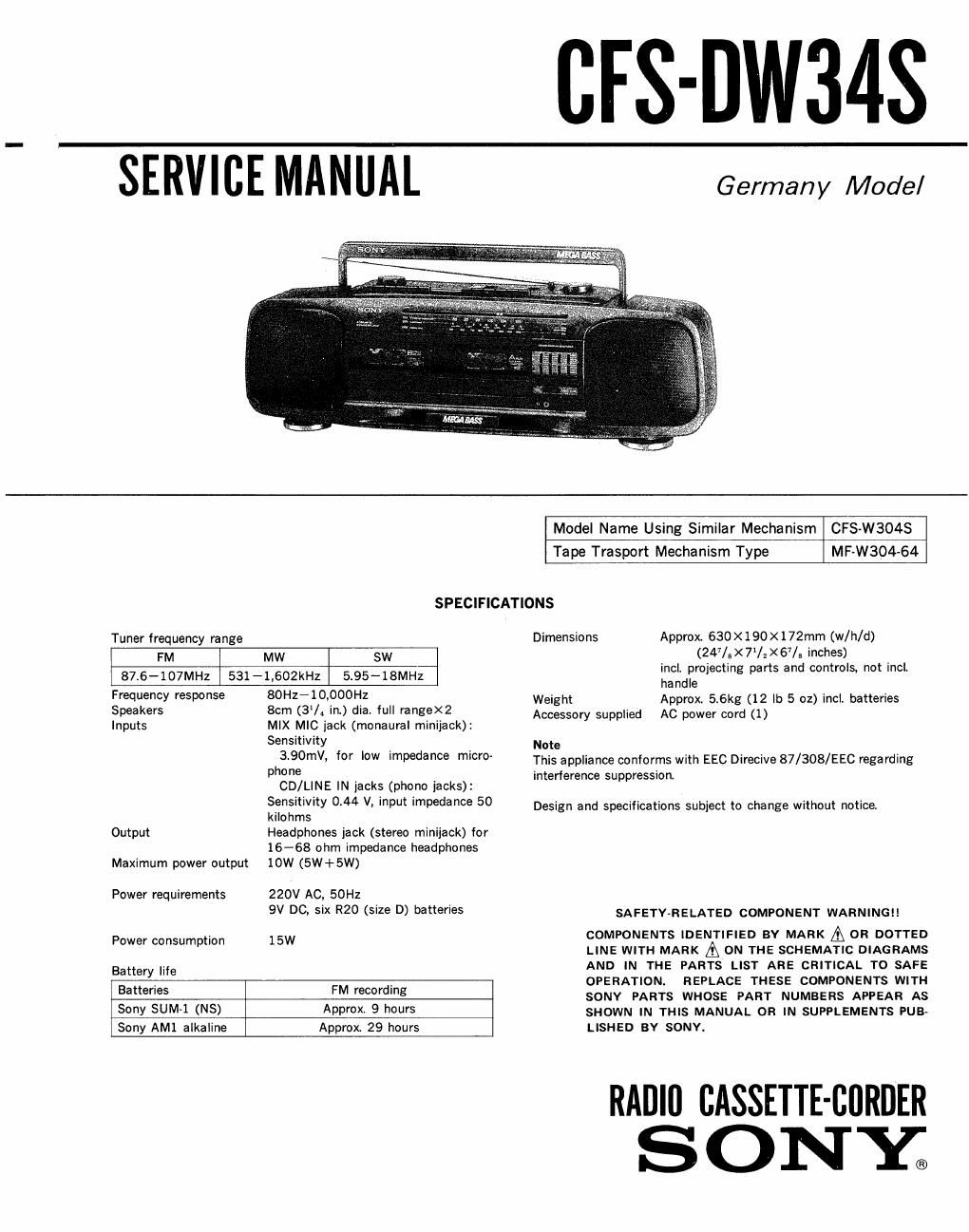

Page 1

CFS-DW34S

SERVICE MANUAL

Germany Model

Model Name Using Similar Mechanism CFS-W304S
Tape Trasport Mechanism Type MF-W304-64
SPECIFICATIONS
Tuner frequency range Dimensions Approx. 630x190><172mm (w/h/d)
FM MW SW (247/g><7/2><67/8 inches)
876-107MH2 531-1,602kHz 5.95-18MHz :gdgmecmg 5 and mm" "M m"
Frequency response 80H2-10'000H2 Weight Approx 5,6kg (12 lb 5 oz) incL batteries

Speakers
Inputs

Output
Maximum power output

Power requirements

Power consumption

Battery life

8cm (3/. in.) die. iull rangeXZ

MIX MIC iack (monaural minijack):

Sensitivity
3.90mV, for low impedance micro-
phone

Accessory supplied

AC power cord (1)

Note
This appliance conforms with EEC Direcive 87/308/EEC regarding

interference suppression.

CD/LINE IN jacks (phone jacks):

Sensitivity 0.44 V, input impedance 50
kiIohms

Headphones jack (stereo minijack) for
16-68 ohm impedance headphones
10W (5W+5W)

220V AC, 50Hz
9V DC, six R20 (size D) batteries

15W

Batteries

FM recording

Sony SUM-1 (NS)

Approx, 9 hours

Sony AMI alkaline

Approx 29 hours

Design and specifications subject to change without notice.

SAFETV-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK & OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BV SONY.

RADIfl CASSETTE-BURDER
S 0 NE

Page 2

CFS-DW34S

Note: Follow the disassembly procedure in the numerical order given.

1-1. REMOVAL OF FRONT CABINET ASSEMBLY

SECTION 1
DISASSEMBLY

0 Remove the battery case lid shown by arrow ®.

9 Remove the Iron! cabinet assy shown by arrow @.

4 Connector (CNP352)

1-2. REMOVAL OF MD ASSEMBLY

Q Connector (CNP301)

Connector (CNP354)

: Remove the MD assy
shown by arrow.
