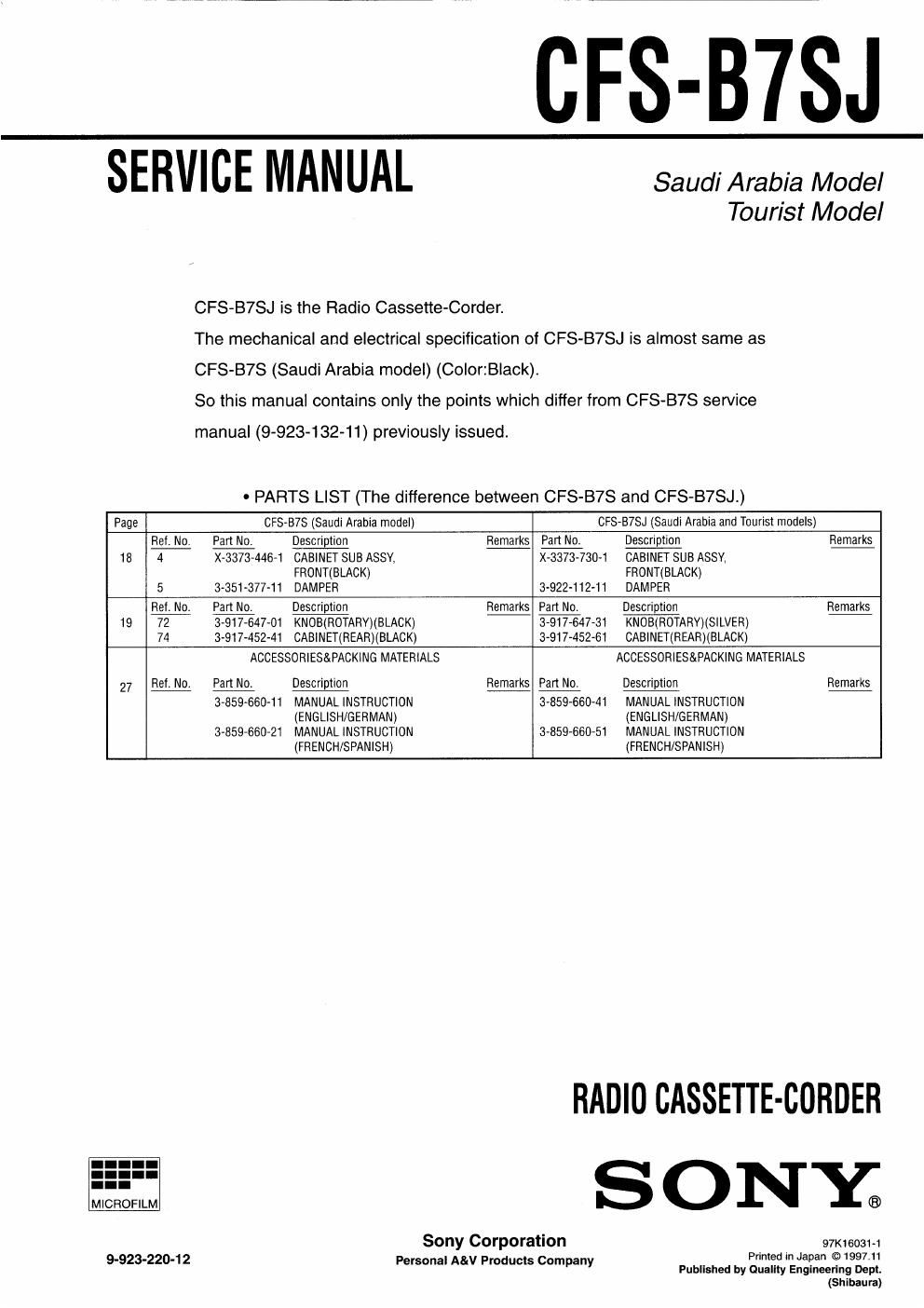

CFS-B7SJ
SERVICE MANUAL Saudi Arabia Model
Tourist Model
CFS-B7SJ is the Radio Cassette-Corder.
The mechanical and electrical specification of CFS-BYSJ is almost same as
CFS-B7S (Saudi Arabia model) (ColorsBlack).
So this manual contains only the points which differ from CFSB7S service
manual (9-923-132-11) previously issued.
- PARTS LIST (The difference between CFS-B7S and CFS-B7SJ.)
Page CPS-378 (Saudi Arabia model) CFS-B7SJ (Saudi Arabia and Tourist models)
Ref. No Part No. Descrigtion Remarks Part No. Description Remarks
18 4 X-3373-446-1 CABINET SUB ASSY, X-3373-730-1 CABINET SUB ASSY,
FRONT(BLACK) FRONTIBLACK)
5 3-351 >377-11 DAMPER 3-922-112-11 DAMPER
Ref. No. Part No. Descrigtion Remarks Part No. Description Remarks
19 72 3-917-64701 KNOB(ROTARY)(BLACK) 3-917-647-31 KNOB(ROTARY)(S|LVER)
74 3-917-452-41 CABINET(REAR)(BLACK) 3-917-452-61 CABINETIREARHBLACK)
ACCESSORIES&PACKING MATERIALS ACCESSORIES&PACKING MATERIALS
27 Ref. No. Part No, DescriQtion Remarks Part No. Description Remarks
3-859-660-11 MANUAL INSTRUCTION 3-859-660-41 MANUAL INSTRUCTION
(ENGLISH/GERMAN) (ENGLISH/GERMAN)
3-859-660-21 MANUAL INSTRUCTION 3-859-66051 MANUAL INSTRUCTION
(FRENCH/SPANISH) (FRENCH/SPANISH)
RADIO CASSETTE-CORDER
S ONY;
Sony Corporation 97K16031-1
- 2 -220-12 Printed in Japan © 1997.11
9 9 3 Personal A&V Products Company Publlshed by Quality Englneerlng Dept.
