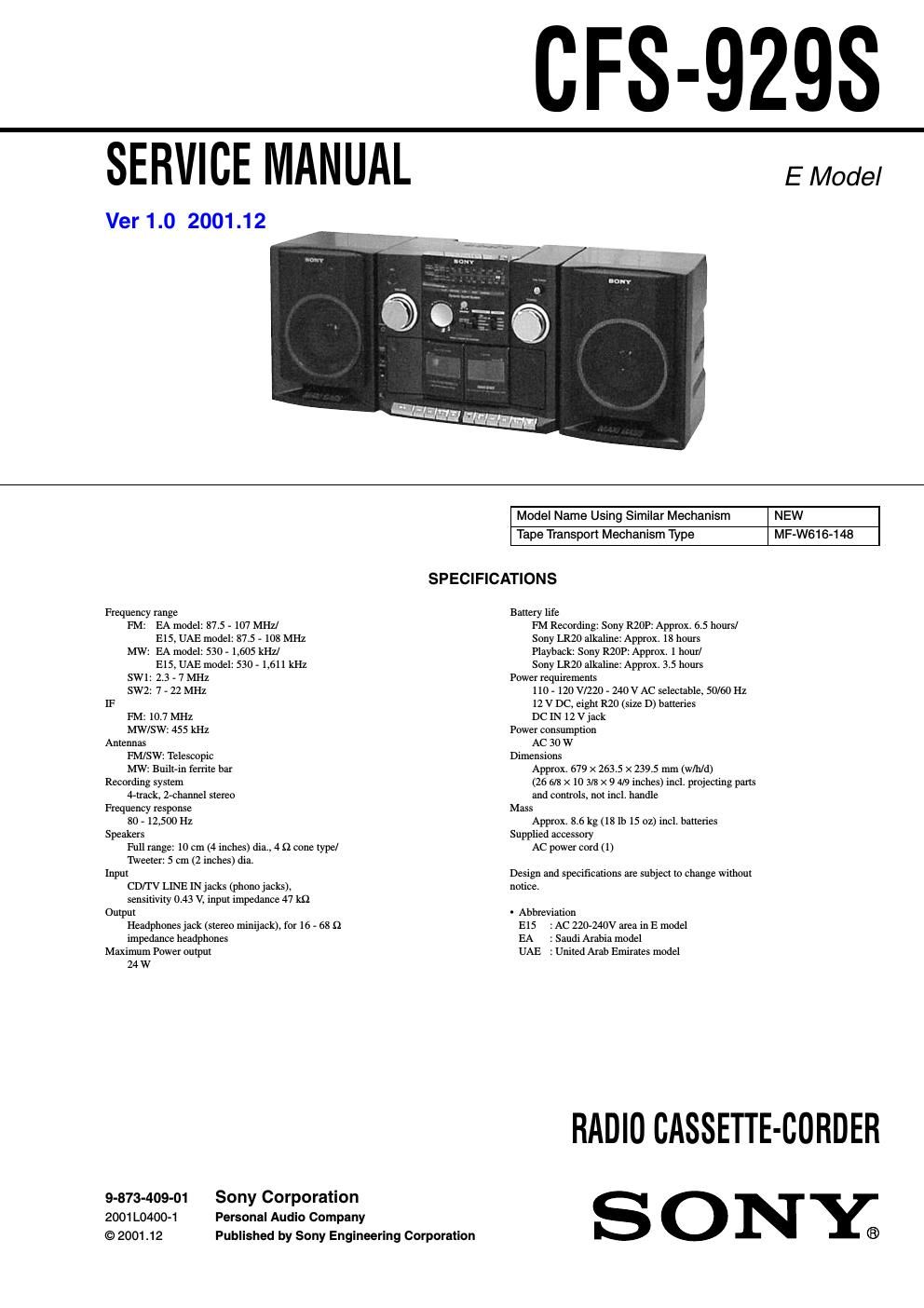

(IFS-9298

SERVICE MANUAL EModel

Ver 1.0 2001.12

Model Name Using Similar Mechanism NEW
Tape Transporl Mechanism Type MF-W616-148
SPECIFICATIONS

Frequency range Battery life

FM: EA model: $7.5 , 107 MHz] FM Recording: Sony R20P: Approx. 6.5 hours/

E15. UAE model: 87.5 , 108 MHz Sony LR20 alkaline: Approx. 18 hours
MW: EA model: 530 . 1,605 kHz] Playback: Sony R20F: Approx. 1 hour/
E15. UAE model: 530 , 1.611 kHz Sony LR20 alkaline: Approx. 3.5 hours

SW1: 2.3 . 7 MHz Power requirements

SW2: 7 , 22 MHz 110 . 120 V/220 . 240 V AC selectable. 50/60 Hz
[F 12 V DC, eight R20 (size D) batteries

FM: 10.7 MHz DCIN 12Vjack

Mw/SW: 455 kHz Power consumption
Antennas AC 30 w

FM/SW: Telescopic Dimensions

MW: Builtrin ferrite bar Approx. 579 X 263.5 X 239.5 mm (w/h/d)
Recording system (26 6/8 X 10 3/3 x 9 419 inches) incl. projecting pans

4ruack, Zechannel stereo and connols, not incl. handle
Frequency response Mass

80 . 12,500 Hz Approx. 8.6 kg (18 lb 15 oz) incl. batteries
Speakers Supplied accessory

Full range: 10 cm (4 inches) dia.. 4 s2 cone type! AC power cord (1)

Tweeter: 5 cm (2 inches) dia.
Input Design and specifications are subject to change without

CD/I'V LINE IN jacks (phono jacks), notice.

sensitivity 0.43 V. input impedance 47 k!)
Output - Abbreviatjon

Headphones jack (stereo minijack). for 16 , 68 (2 E15 - AC 2202AOV area in E model

impedance headphones EA audi Arabia model
Maximum Power output UAE : United Arab Emirates model

24 W

RADIO CASSETTE-CORDER
9-873-409-01 Sony Corporation S O N Y
2001LO400-1 Personal Audio Company
© 2001.12 Published by Sony Engineering Corporation ®
