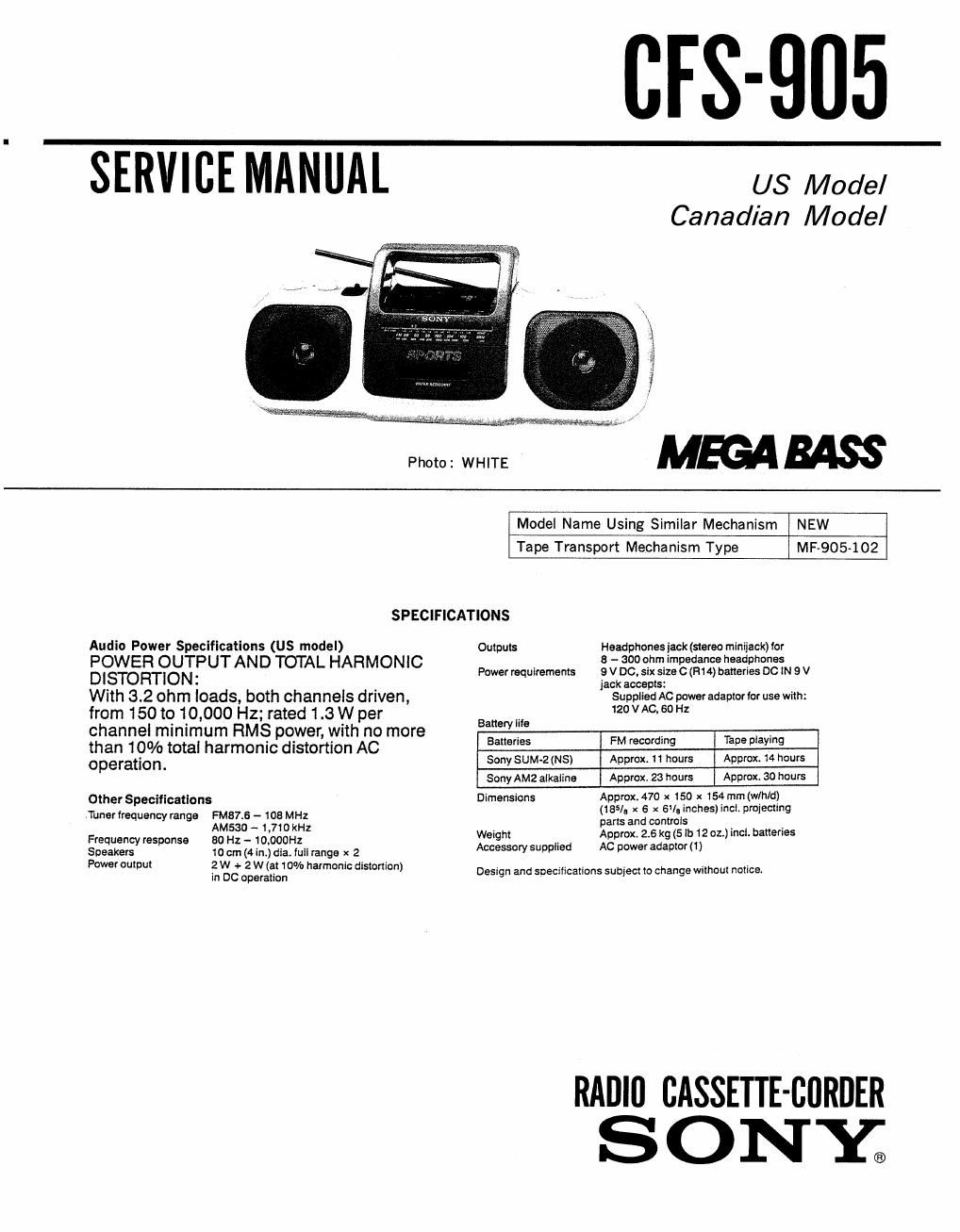

Sony cfs 905 service manual

Page 2

CF 8-905

TABLE OF CONTENTS

Section Title Page
1. GENERAL

1-1. Parts Identification .............................. 3
2. DISASSEMBLY

2-1. Removal of Cassette Lid ........................ 4
2-2. Removal of Front Cabinet ........................ 4
2-3. Dial Pointer Setting ......................... .5
3. MECHANICAL ADJUSTMENTS .................... 5
4. ELECTRICAL ADJUSTMENTS

4-1. Tape Recorder Section ........................ 6
4-2. Tuner Section ................................... 6
5. DIAGRAMS

5-1. Printed Wiring Board~Tuner Section- .......... 8
5-2. Schematic Diagram-Tuner Section- ............ 9
5-3. Printed Wiring Boards-Audio Section- ........ 11
5-4. Schematic Diagram-Audio Section- ............ 13
5-5. Semiconductor Lead Layouts .................... 15
6. EXPLODED VIEWS

6-1. Front Cabinet Section ................. 16
6-2. Rear Cabinet Section ......................... 17
6-3. Mechanism Deck Section (1) .................... 18
6-4. Mechanism Deck Section (2) .................... 20
7. ELECTRICAL PARTS LIST ...................... 21

SA FETY-RELATED COMPONENT WARNING! |

COMPONENTS IDENTIFIED BV MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ATTENTION AUCOMPO'SANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR um: MAROUE A
son LES DIAGRAMMES scnéMAnouss ET LA LISTE
DES PIECES sour CRITIQUES POUR LA sécuané
DE FONCTIONNEMENT. NE REMPLACER css COM-
POSANTS ouz PAR DES PIECES sowv nom- LES
NUMEROS sour DONNES DANS ce MANUEL ou
DANS LES SUPPLEMENTS Pusués PAR soNV.
