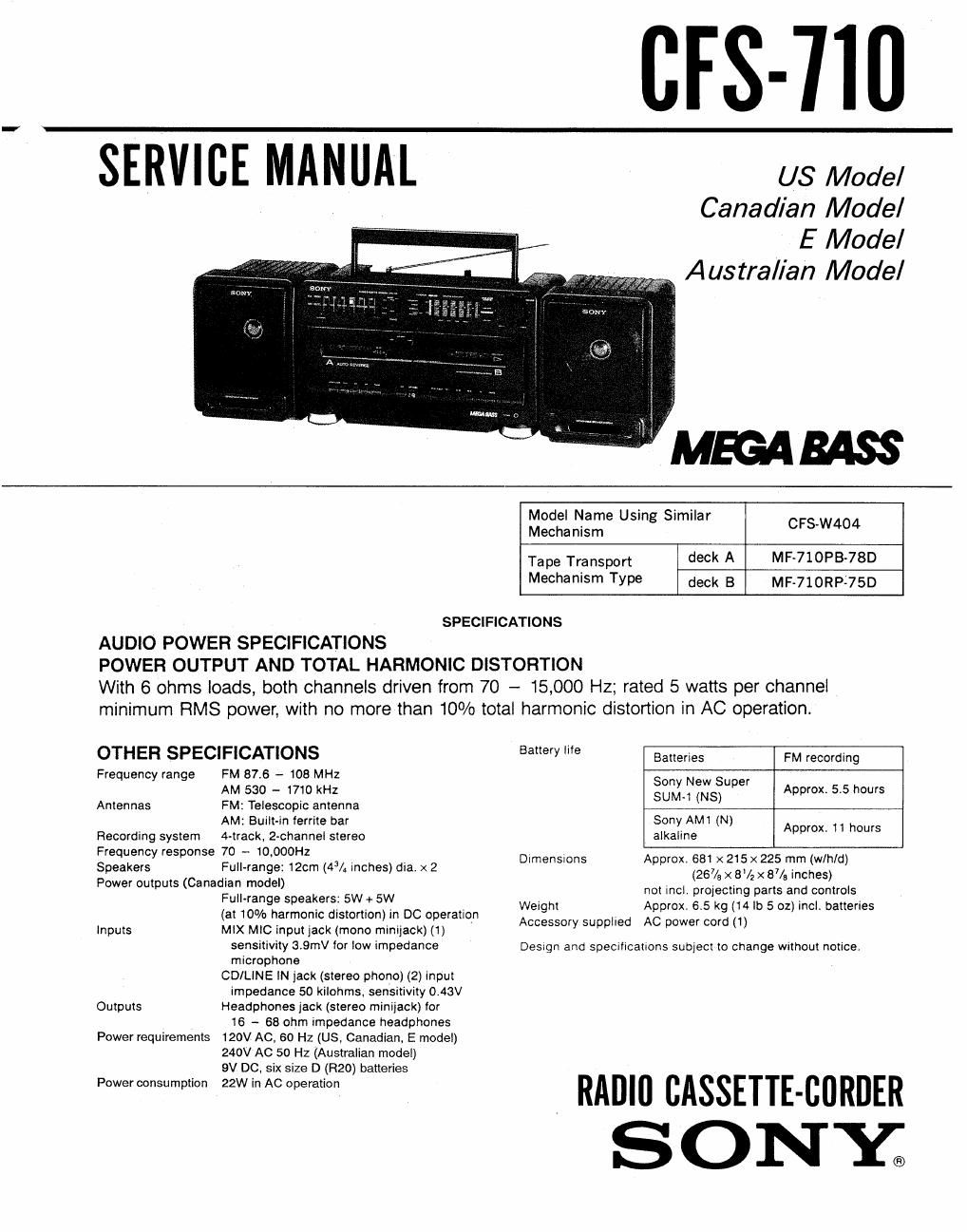

Page 1
CFS-IIII
SERVICE MANUAL
US Model
Canadian Model
E Model
Austral/an Model
MEGABASS
Model Name Using Similar
Mechanism CFS'W404
Tape Transport deck A MF-710PB-7SD
Mechanism Type deck B MF-710RPl7SD
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 6 ohms loads, both channels driven from 70 - 15,000 Hz; rated 5 watts per channel
minimum HMS power, with no more than 10% total harmonic distortion in AC operation.
OTHER SPECIFICATIONS
Frequency range FM 87,6 -- 108 MHz
AM 530 -- i710 kHz
FM: Telescopic antenna
AM: Built-in ferrite bar
Recording system 4
Speakers Full-range: 12cm (41/) inches) dia. x 2
Power outputs (Canadian model)
Full~range speakers: 5W + 5w
(at 10% harmonic distortion) in DC operation
Inputs Mix MIC input jack (mono miniiack) (1) '
sensitivity 3.9mV for low impedance
microphone
CD/LlNE lN jack (stereo phone) (2) input
impedance 50 kilohrns, sensitivity 0.43V
Headphones jack (stereo minijack) for
16 - 68 ohm impedance headphones
Power requirements 120V AC, 60 Hz (US, Canadian. E model)
240V AC 50 Hz (Australian model)
9V DC, six size D (R20) batteries
Power consumption 22W in AC operation
Antennas
Outputs
Battery lile Batteries FM recording
Sony New Super
SUM-1 INS) Approx. 5.5 hours
Sony AMt (N)
alkaline Approx 11 hours
Dimenstons Approx. 581x 215 x 225 mm (wlh/d)
(26% x 8'4 x 87/. inches)
not incl. projecting parts and controls
Weight Approx. 6.5 kg (14 lb 5 oz) incl. batteries
Accessory supplied AC power cord (1)
DeSign and specrltcattons subject to change without notice.
RADIII CASSETTE-BURDER
