sony cfs 210 s service manual

Extracted text from sony cfs 210 s service manual (Ocr-read)

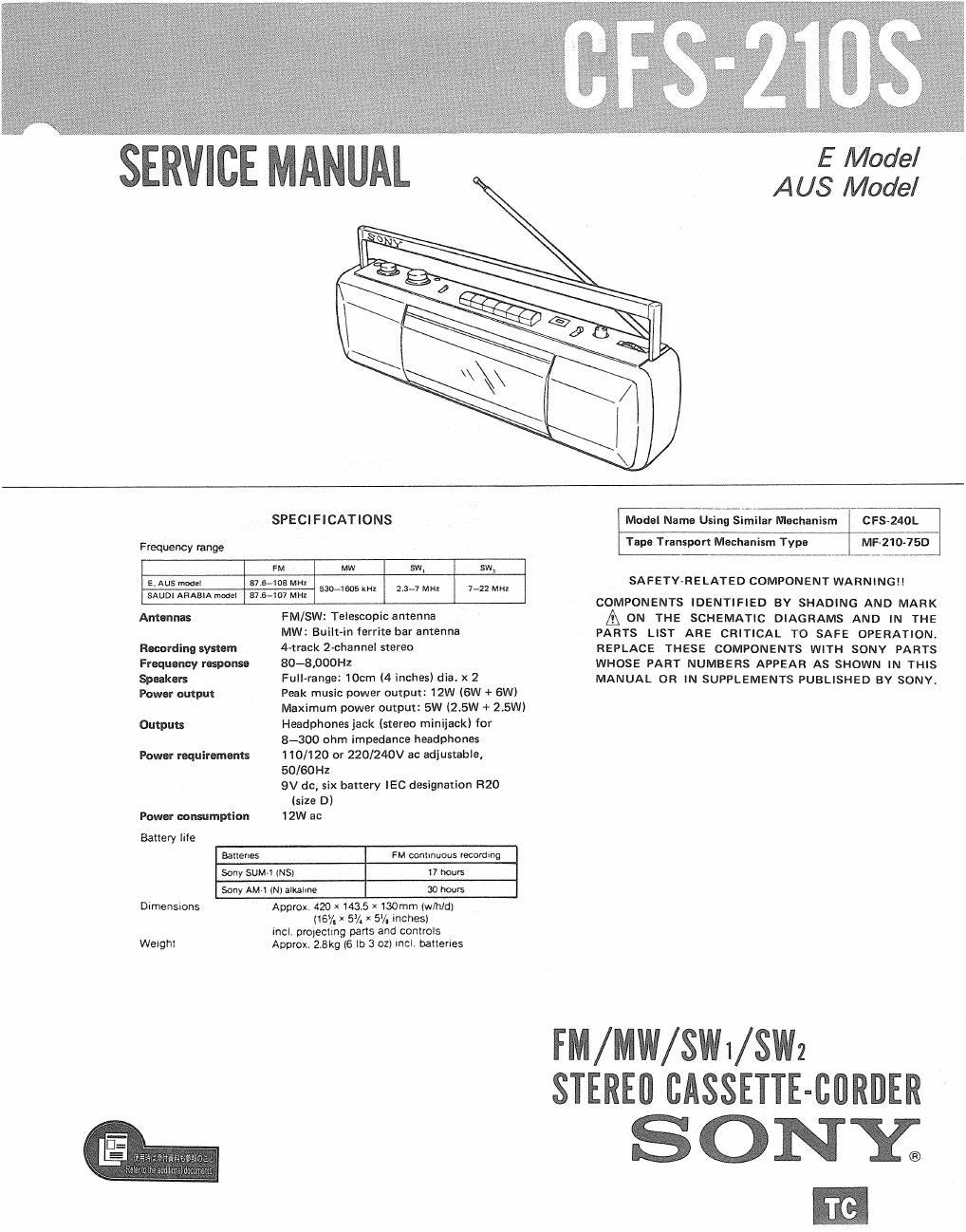

Page 1

AUS Model

Frequency range

SPECIFICATIONS

FM MW sw, sw,

E. AUS model 87.67108 MHz

SAUDI ARABIA model 575-107 MHI

530-1605 10-12 2.3-7 MHz 742 MHz

Antennas
Recording system
Frequency response
Speakers

Power output

Outputs

Power requirements

FM/SW: Telescopic antenna

MW: Built-in ferrite bar antenna

4-track Z-channel stereo

80-8,000Hz

Fullrange: 100m 14 inches) dia. x 2

Peak music power output: 12W (6W + 6W)
Maximum power output: 5W (2.5W + 2.5W)
Headphones jack (stereo minijack) for
8-300 ohm impedance headphones
110/120 or 220/240V ac adjustable,

50/60Hz
9V dc, six battery IEC designation R20
(size D)
Power consumption 12W ac
Battery lile
Banenes FM conlrnuous lecordmg
Sony SUNH (NS) 17 hours
Sony AM-I 1N) antenna 30 hours
DImeIlSIOnS Approx 420 x 143.5 x 130mm (w/hld)
(163/, 1 5% X 5/. Inches)
incl. proleclxng pans and controls
Weight Approx. 2.8kg (6 lb 3 02) Inch batteries

Model Name Using Similar Mechanism CFS-ZAOL
Tape Transport Mechanism Type MF-210»7SD

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY SHADING AND MARK

A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

FM/MW/SWl/SWZ
STEREO CASSETTE-CBRDER

SONY;
m

Page 2

CPS-210$

TABLE OF CONTENTS

flle Description M

Specifications .......................... 1

Parts Identifications ...................... 2

Section 1 Adjustments ...................... 3
Section 2. Diagrams

2-1, Mounting Diagram ................... 8

22. Schematic Diagram ................. l 1

Section 3. ' Exploded Views and Parts List .......... 14

Section 4. Electrical Parts List ................. 18

.totwooow-a-»-m- m-----n -m-.---m--o

SERVICING NOTE

ORepairing printed resistor

Cut both sides of the resistor and solder the carbon
resistor having same value in place of printed one of
the conductor side,

l/6W carbon resistor is supplied for the replacing
part of the printed resistor.

.t on-.- m ...w or-" -t.--owo-owooow-o- m -- toe- w-t--n-------w---w-

PARW

891011

[I] PHONES (headphones) jack
[ZIVOLUME control
EITONE control

EOPRIBATT (operationlbattery check) indicator
When it glows tainlly during battery operation, replace all the batteries
with new ones.

[3 FUNCTION (RADIOITAPE) selector

MIC (built-in)

.Tape opreralion buttons
ll PAUSE

« FF (fast tomardyCUE
» HEW (rewindyFlEVlEW

MONO/STEREO selector
During FM reception, normally set to STEREO
When noise makes it hard to hear the broadcast. set to MONOV

E] BAND selector
.FlNE TUNING knob
ETUNING knob
@Ac IN socket

4 PLAY (playback)
O REC (record)
I: STOP/EJECT

,- m crow o»-r- »-. on -o -m o -0- m-'ow-oo u . vow -twOw -l.-tu Ow ow oavo-A o»- mo»-w-a-w our- Om -t»-.---w---.u-mt-u

-- MODEL IDENTIFICATION ~-
(Specification Label)

SON Yo

FM/MW/SWK ISW2
STEREO CASSETTEvCORDER

MODE L NO. CFS~21OS

E, AUS model: 110-120/220-240V~50/60Hz 12W
SAUDI ARABIA model: 110-120/220-240V~60Hz 12W
