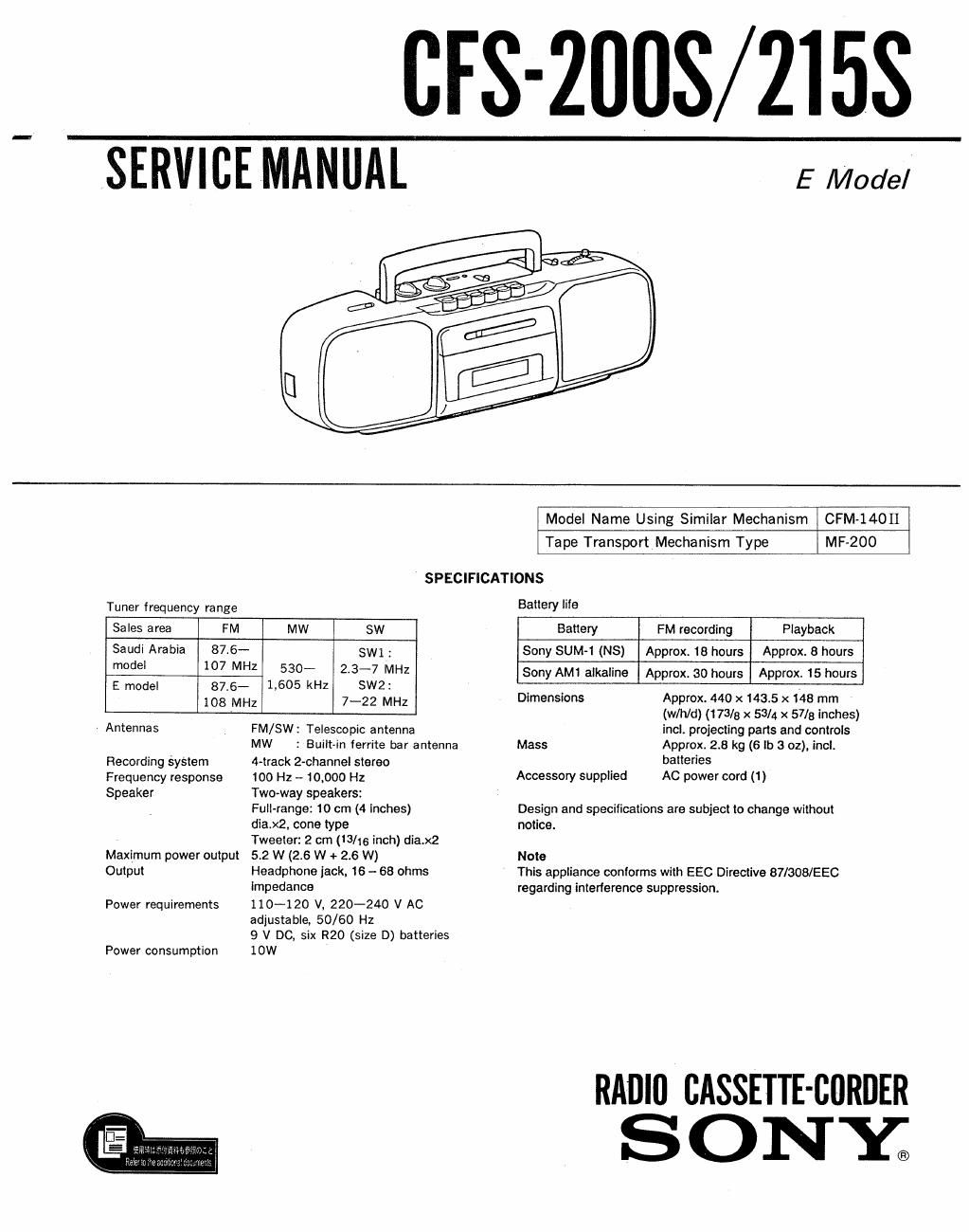

Page 1

BIS-ZDUS/ 2153

SERVICEMANUAL E Model

Model Name Using Similar Mechanism CFM-lA-OII

Tape Transport Mechanism Type MF-200
SPECIFICATIONS
Tuner frequency range Battery life
Sales area FM MW sw Battery FM recording Playback
Saudi Arabia 876- SW] ; Sony SUM-1 (NS) Approx. 18 hours Approx. 8 hours
m°del 107 MHZ 530- 23-7 MHZ Sony AM1 alkaline Approx. 30 hours Approx 15 hours
E model 87.6- 1.505 kHZ SW2:
108 MHz 7_22 MHz Dimensions Approx. 440 x 143.5 x 148 mm
' (w/h/d) (173/8 x 53/4 x 57/3 inches)
Antennas FM/SW: Telescopic antenna incl. projecting parts and controls
MW : Built-in ferrite bar antenna Mass Approx 2.8 kg (6 lb 3 oz), incl.
Recording system 4-track 2-channel stereo , batteries
Frequency response 100 Hz - 10,000 Hz Accessory supplied AC power cord (1)
Speaker Two-way speakers:
Full-range: 10 cm (4 Inches) Design and specifications are subject to change without
dia.><2, cone type notice.
Tweeter: 2 cm (3/15 inch) dia.x2
Maximum power output 52 W (2.6 W + 2.6 W) Note
Output Headphone jack. 16 -« 68 ohms This appliance conlorms with EEC Directive 87/306/EEC
Impedance regarding interference suppression.

Power requirements 110-120 V. 220-240 V AC
adjustable, 50/60 Hz
9 V DC, six R20 (size D) batteries
Power consumption 10W

RADIO CASSETTE-CBRDER
S 0 NY;

Page 2

TABLE OF CONTENTS

Section Title Page
1. DISASSEMBLY

1-1. Removal of Front Cabinet ........

1-2. Dial Pointer Setting .............

2. MECHANICAL ADJUSTMENTS .................. 4
3. ELECTRICAL ADJUSTMENTS

3-1. Tape Recorder Section

3-2. Tuner Section eeeeeeeeeeeeeeeeeee

4. DIAGRAMS

4-1. Printed Wiring Board-Tuner Sectionr ......... 7
4-2. Schematic DiagramATuner Section- ............ 8
4-3. Semiconductor Lead Layouts ................... 10
4-4. Schematic DiagramiAudio Section- ............ 11
4-5 Printed Wiring Boards-Audio Sectioh~ ........ 13
5. EXPLODED VIEWS

5-1. Front Cabinet .................................. 15
5-2. Rear Cabinet ............................... 16
5-3. Mechanism Deck Block (1) . ............ 17
5-4, Mechanism Deck Block (2) i H ................. 18
6. ELECTRICAL PARTS LIST ...................... 19

SAFETY-RELATED COMPONENT WARNINGH

_ COMPONENTS IDENTIFIED BY MARK A OR DOTTED

LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONV PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
