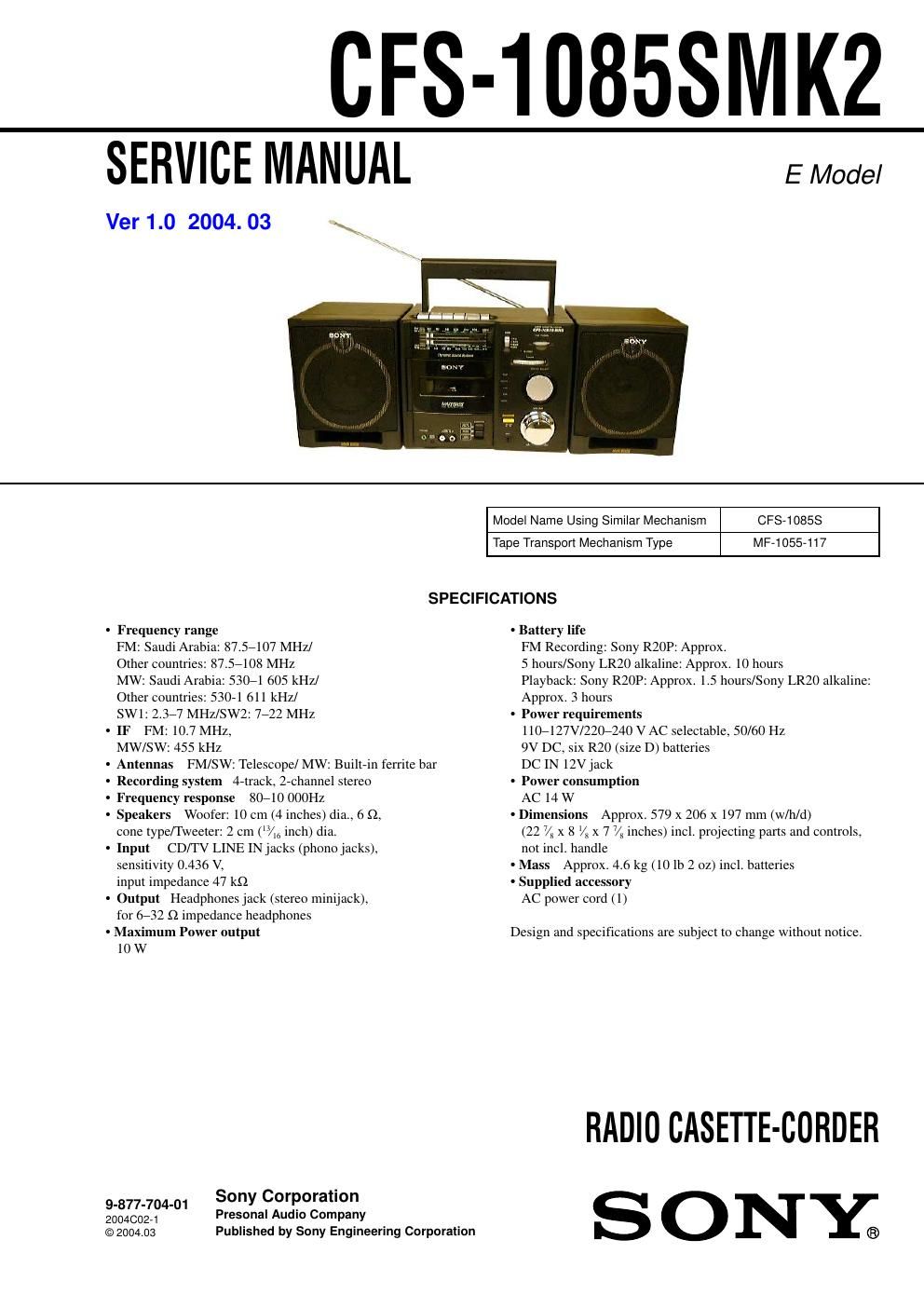

Page 1

CFS-10858MK2

SERVICE MANUAL

Ver 1.0 2004. 03 \

E Model

Model Name Using Similar Mechanism

CFS-10858

Tape Transport Mechanism Type

MF-1055-117

SPECIFICATIONS

Frequency range

FM: Saudi Arabia: 87.57107 MHz/

Other countries: 87.57108 MHZ

MW: Saudi Arabia: 53ml 605 kHz/

Other countries: 530-1 611 kHz/

SW1: 2.377 MHz/SW2: 7722 MHz

IF FM: 10.7 MHz,

MW/SW: 455 kHz

Antennas FM/SW: Telescope/ MW: Builtein ferrite bar
Recording system 47track, 2Achannel stereo
Frequency response 80710 000Hz
Speakers Woofer: 10 cm (4 inches) dia., 6 (2,
Cone type/Tweeter: 2 cm ("/H, inch) dia.

Input CD/TV LINE IN jacks (phonojacks),
sensitivity 0.436 V,

input impedance 47 kﬂ

Output Headphonesjack (stereo minijack),
for 6732 Q impedance headphones

- Maximum Power output

- Battery life
FM Recording: Sony R2OP: Approx.
5 hours/Sony LR20 alkaline: Approx. 10 hours
Playback: Sony RZOP: Approx. 1.5 hours/Sony LR20 alkaline:
Approx. 3 hours
Power requirements
11(L127V/2207240 V AC selectable, 50/60 Hz
9V DC, six R20 (size D) batteries
DC IN 12V jack
Power consumption
AC 14 W
- Dimensions Approx. 579 x 206 x 197 mm (w/h/d)
(22 7/2; x 8 VX x 7 7/2; inches) incl. projecting parts and controls,
not incl. handle
- Mass Approx. 4.6 kg (10 lb 2 oz) incl. batteries
- Supplied accessory
AC power cord (1)

Design and speciﬁcations are subject to change without notice.

RADIO CASETTE-CORDER
S ONE;
