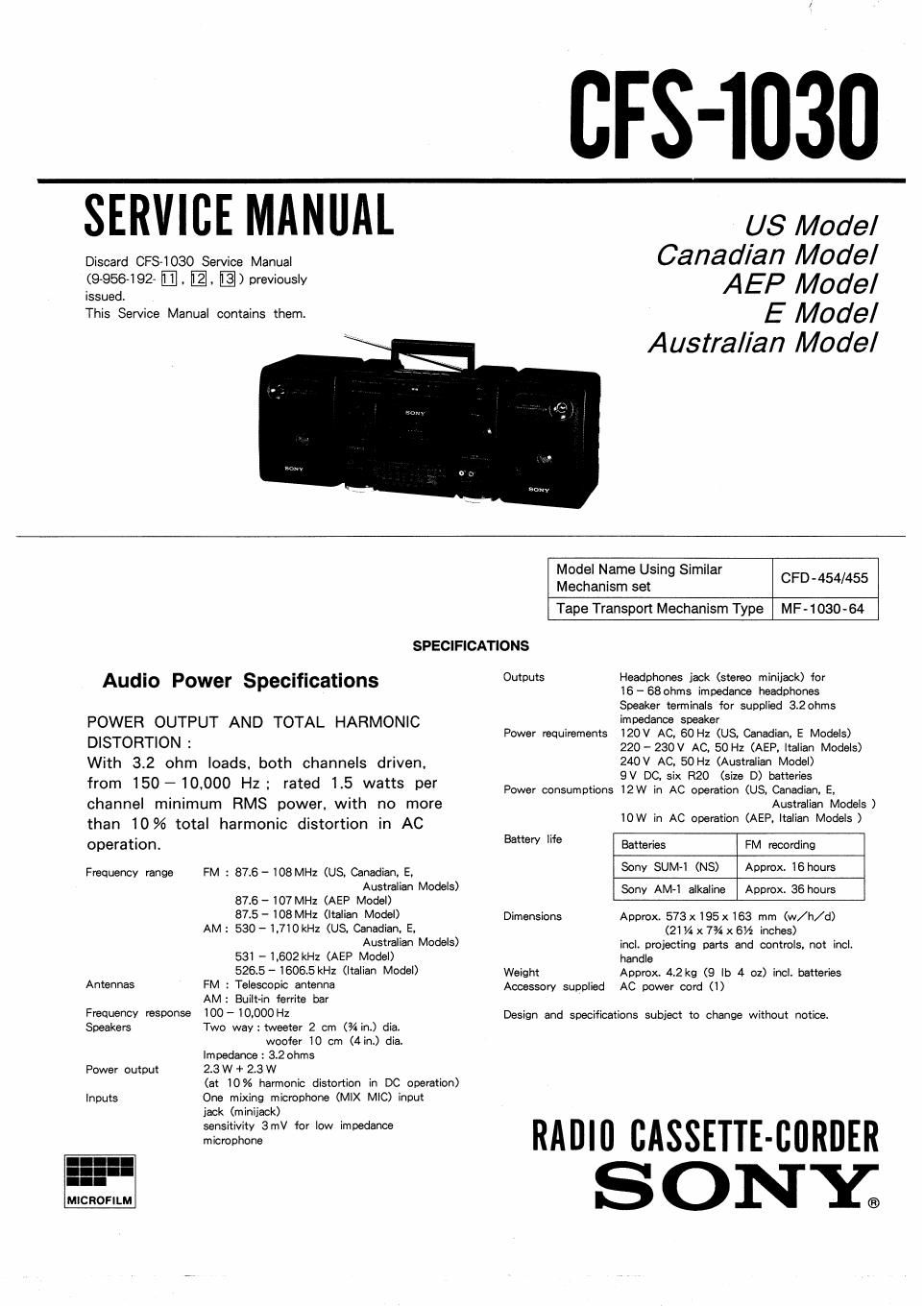

CFS-1030

SERVICE MANUAL

Discard CFS-1030 Service Manual
(9956492 , I, I) previously
issued.

This Service Manual contains them.

US Model
Canadian Model
AEP Model

E Model
Australian Model

SPECIFICATIONS

Audio Power Specifications

POWER OUTPUT AND TOTAL HARMONIC
DISTORTION :

With 3.2 ohm loads, both channels driven.
from 150-10000 Hz; rated 1.5 watts per
channel minimum RMS power, with no more
than 10% total harmonic distortion in AC

Outputs

Power requirements

Power consum ptions

Model Name Using Similar
Mechanism set

Tape Transport Mechanism Type

CFD -454/455

MF-1030~64

Headphones jack (stereo minijack) for

16 - 68 ohms impedance headphones

Speaker terminals for supplied 3.2 ohms

Impedanoe speaker

120V AC, 50 Hz (US, Canadian, E Models)

220-230V AC, 50 Hz (AEP, Italian Models)

240V AC, 50 Hz (Australian Model)

9V DC, six R20 (sixe D) batteries

12W in AC operation (US, Canadian, E,
Australian Models )

10W in AC operation (AEP, Italian Models)

operation. Ems 5 Batteries FM recording
Frequency range FM : 87.6- 108MHz (us, Canadian, E, 8° SUM'I (NS) ADM)" lemurs
Australian Models) Sony AM-I alkaline Approx. 38 hours
87.5- 107MHz (AEP Model)
87.5 - 108MHz (Italian Model) Dimensions Approx. 573x 195x 163 mm (w/h/d)
AM: 530 - 1.710 kHz (US. Canadian, E. (21 M x 7% x 6% inches)
Australian Models) incl. projecting parts and controls. not incl.
531 - 1.602 kHz (AEP Model) handle
526.5- 1606.5 kHz (Italian Model) Weight Approx. 4.2 kg (9 lb 4 oz) incl. batteries
Antennas FM : Telescopic antenna Accessory supplied AC power cord (1)
AM: Built-in ferrite bar

Frequency response
Speake rs

100 > 10,000 Hz
Two way: tweeter 2 cm (%in,) die.

woofer 10 cm (4 In.) dia,
Impedance: 3.2 ohms
2.3 W + 23 W
(at 10% harmonic distortion in DC operation)
One mixing microphone (MIX MIC) Input
jack (miniiack)
sensitivity 3mV for low impedance
microphone

Power output

Inputs

MICROFILM

Design and specifications subject to change without notice.

RADIII CASSETTE-BORDER
S ON KC,

Page 2

Ham

TABLE OF CONTENTS

Section itle Page
Specifications ........................................... 1
Safety Checkout ........................................ 2
Servicing Note .......................................... 3

SECTION 1. DISASSEMBLY AND SETTING

l-l. Casette Holder Removal and Setting ------------ 4
172. Tun Shaft Removal and Setting ---------------- 4
1_3_ Setting of Pointer ............................... 5
14. Drum, VC Removal and Setting ----------------- 5
175. Main Board Removal and Setting -------------- 5
SECTION 2. ADJUSTMENTS
Z-l. Mechanical Adjustments ------------------------- 6
2-2. Electrical Adjustments --------------------------- 6
SECTION 3. DIAGRAMS
371. Printed Wiring Boards [Pro type : Except AEF,
Italian models] ................................... 8
372. Schematic Diagram [Prc type : Except AEP,
Italian models] .................................. 11
3-3. Schematic Diagram [Discrete type (Former)
:Except AEP, Italian models] ------------------ 15
34. Printed Wiring Boards [Discrete type (Former)
: Except AEP, Italian models] ------------------- 19
3-5. Printed Wiring Boards [Discrete type (New)] 21
36. Schematic Diagram [Discrete type (Newfl ----- 23
SECTION 4. EXPLODED VIEWS ---------------------- 27
SECTION 5. ELECTRICAL PARTS LIST ------------ 31
Hardware Llst ....................................... 35

SAFETY - RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DO'ITED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ArrENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LEs COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIEcEs SONT cnrnoUEs POUR LA sEcunn-E
DE FONcTIONNEMENT. NE REMPLACER CES com-
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEnos SONT DONNES DANS CE MANUEL 0U
DANS LES SUPPLEMENTS PUBLIEs PAR SONY.

SAFETY CHECK-OUT

After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:

Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part
to earth ground and from all exposed metal parts
to any exposed metal part having a return to

achassis, must not exceed 0.5mA (500 microampers).

Leakage current can be measured by any one of

three methods.

1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-54OA. Follow the
manufacturers instructions to use these instru-
ments.

2. A batteryioperated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.

8. Measuring the voltage drop across a resistor by
means of a VOM or battery»operated AC volt-
meter. The limit indication is 0.75V, so analog
meters must have an accurate low-voltage scale.
The Simpson 250 and Sanwa SHABSTrd are
examples of a passive VOM that is suitable.
Nearly all battery operated digital multimeters
that have a 2V AC range are suitable.

(See Fig. A)

To Exposed Metal
Paris on Set

0-751: -[ $1.5m

'.__l

7- Earth Ground

A C
voltmeter
(0. 75V)

Fig, A. Using an AC voltmeter to checkAC leakage.
