Sony cfm 140 l mk2 service manual

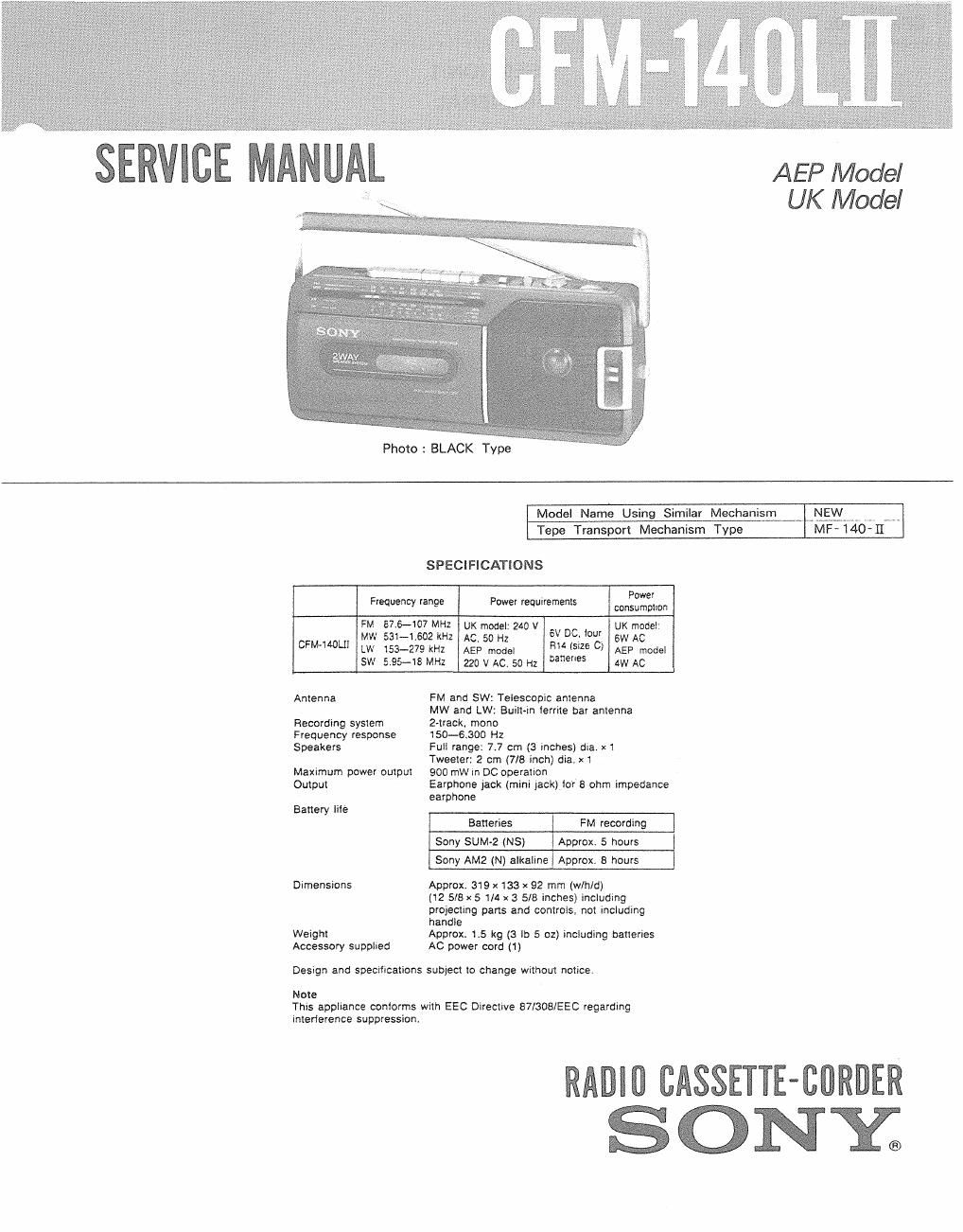

Page 1

AEP Model
UK Model

Model Name Using Similar Mechanism NEW

Tepe Transport Mechanism Type

MF-Mo-If

SPECIFICATIONS

MW 531-1602 kHz Ac, 50 H2

Frequency range Power requirements con::;:;I°n
FM 87£~i07 MHZ UK model: 240 v UK modei:

6V DC. Iour 6W AC

(WM-10] LW 153-279 kHz AEP modei 145"" C7 AEP mode'

sw 595-18 MHz 220 v AC. so Hz 9" 4w Ac

Antenna

Recording system
Frequency response
Speakers

Maximum power output
Output

Battery lite

Dimensions

Weig m
Accessory supplied

FM and SW: Telescapic antenna

MW and L . Built-in ferrite bar antenna
2

150-6300 Hz

Fuil range: 7.7 cm (3 inches) dxa. x1

Tweeler: 2 cm (7/8 inch) die, x 1

900 mW in DC operation

Earphone jack (mini Jack) for 6 ohm impedance
earphone

Batteries FM recording

Sony SUM-2 (NS) Approx. 5 hours

Sony AM2 (N) alkaline Approx, 5 hours

Approx, 319 x 133 x 92 mm (w/n/d)

(12 5/8 x 5 1/4 x 3 5/8 inches) including
projecting pans and controls, not including
handle

Approx. 1.5 kg (3 lb 5 02) including batteries
AC power cord (1)

Design and speaiications subiect to change without notice.

Note

This appliance conforms wilh EEC Directive 57/305/EEC regarding

RADIfl CASSETTE-BORDER

SONY;

interference suppression.

Page 2

CFM-14OLJI

LOCATION AND FUNCTION OF CONTROLS

SECTION 1
GENERAL

1 FUNCTION SELECTOR
(TAPE (RADIO OFF) /RADIO
. TUNING control
VOLUME control
. MIC (built-in)
I Tape operation buttons
II PAUSE
I STOP/EJECT
« FF (fast - forward)
» REW (rewind)
4 PLAY (playback)
O REC
6.®(earphone jack)
7 OPR/BATT (operation/ battery check) indicator
8. AC IN socket
9. FINE TUNING (SW band)

10. BAND switch
(FM/MW/LW/SW)

(7|wa

- MODEL IDENTIFICATION -
(Specification Label)

SONY;
MODEL NO. CFM-140L11

RADIO CASSETTE-CORDER

W AEP model: AC: 220V~50Hz 4w

DC: 6V FLASHLAIGHT BATTERY UK mode A : ~
Rl4 SIZE c><4 OR EQUIVALENT C 240V SOHZ 5W
