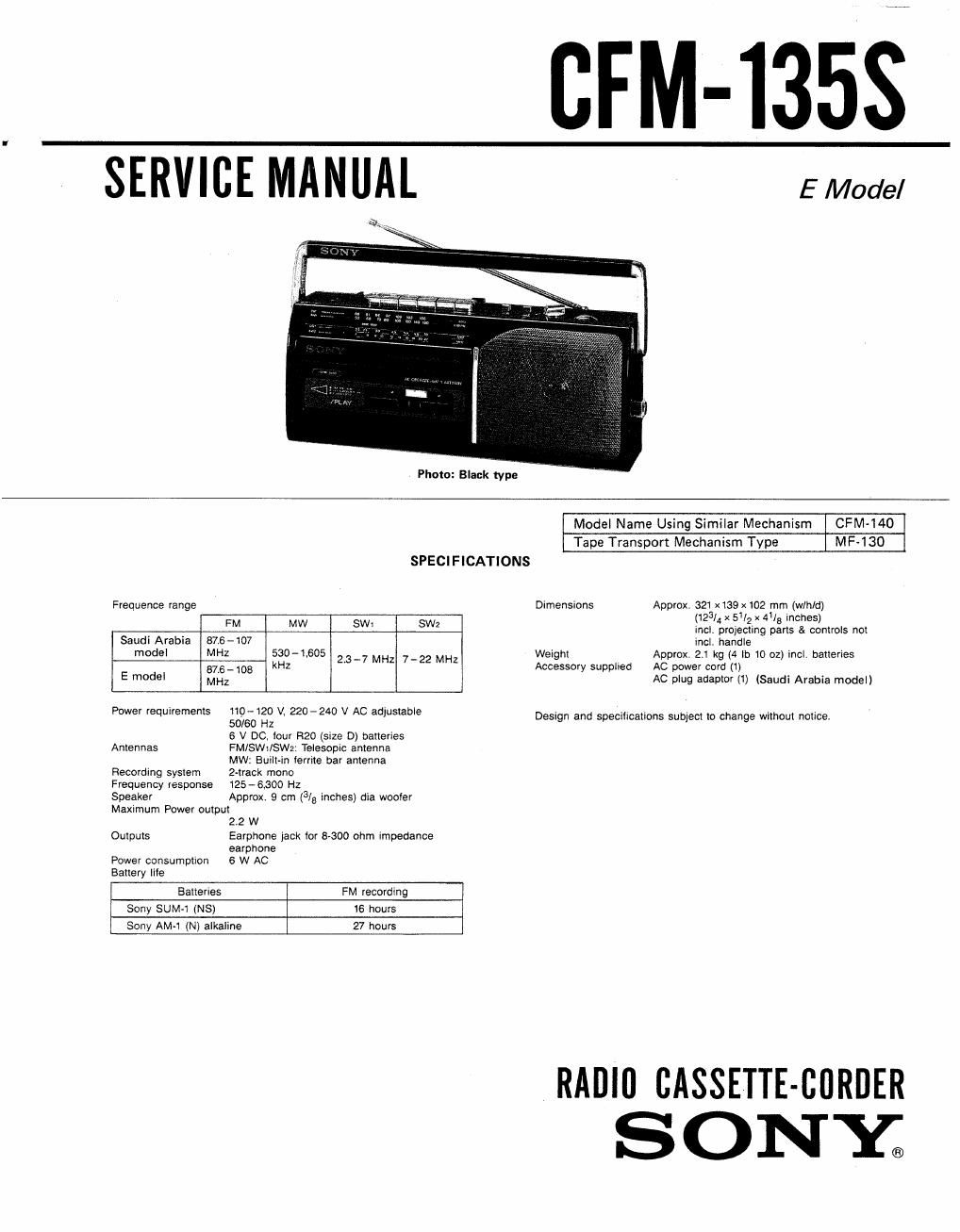

BFM-I35S

SERVICE MANUAL

s;

E Model

Photo: Black type

SPECIFICATIONS

Frequence range
FM MW SW1 SW2
Saudi Arabia 87.6-107
model MHz Sim-1,605 23.7 MHz 722 MHz
575- 103 "1
E model
MHz

Power requirements 110-120 V. 220-240 V AC adjustable

Antennas

Recording system

50/60 HZ

6 V DC. tour H20 (size D) batteries
FM/SWt/SWz' Telesopic antenna
MW: Built~in territe bar antenna
2~traci< mono

Frequency response 125-6300 Hz

Speaker Approx, 9 cm (3/8 inches) dia woofer
Maximum Power output
22 W
Outputs Earphone jack tor 8-300 ohm Impedance
earphone
Power consumption 6 W AC
Battery me
Batteries FM recording
Sony SUM-1 (NS) 16 hours
Sony AMA (N) alkaline 27 hours

Model Name Using Similar Mechanism CFM-MO
Tape Transport Mechanism Type MF130

Drmensmns Approx 32$ x139 x102 mrn (win/d)
(123A1 x 51/2 x 41/8 inches)
inci projecting parts & controis not
incl handie
Weight Approx 21 kg (4 lb 10 oz) inci. batteries
Accessory supplied AC power cord (1)
AC plug adaptor (1) (Saudi Arabia model)

Design and specifications subrect to change wiihout notice.

RADIO CASSE E-BDRDER
SONY;

Page 2

CFM-1358

SECTION 1
GENERAL
LOCATION OF CONTROLS
1 2 3 4 5 6 7 1. EARPHONE
\ \ / 2. Tape operation buttons
in u PAUSE

I STOP/EJECT
<4 FF (fast-forward)
>> REW (rewind)
4 PLAY (playback)
. REC (record)

3 MIC (built-in)

4. FUNCTION SELECTOR
(RADIO/TAPE)

5. BAND SELECTOR
(FM/MW/SW1/SW2)

6. VOLUME control

7. TUNING control

8 OPR/BATT (Operation/battery check) indicator

9

0

1

. ISS (interface suppress switch)

. AC IN socket
. SW FINE TUNING

SA FETY-R E LATED COMPONENT WARNING! !

COMPONENTS IDENTIFIED BV MARK A 0R DOTTED
LINE WITH MARK & ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
