Sony CFD zw 755 service manual

This is the 44 pages manual for sony CFD zw 755 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 44
sony CFD zw 755 service manual

Extracted text from sony CFD zw 755 service manual (Ocr-read)

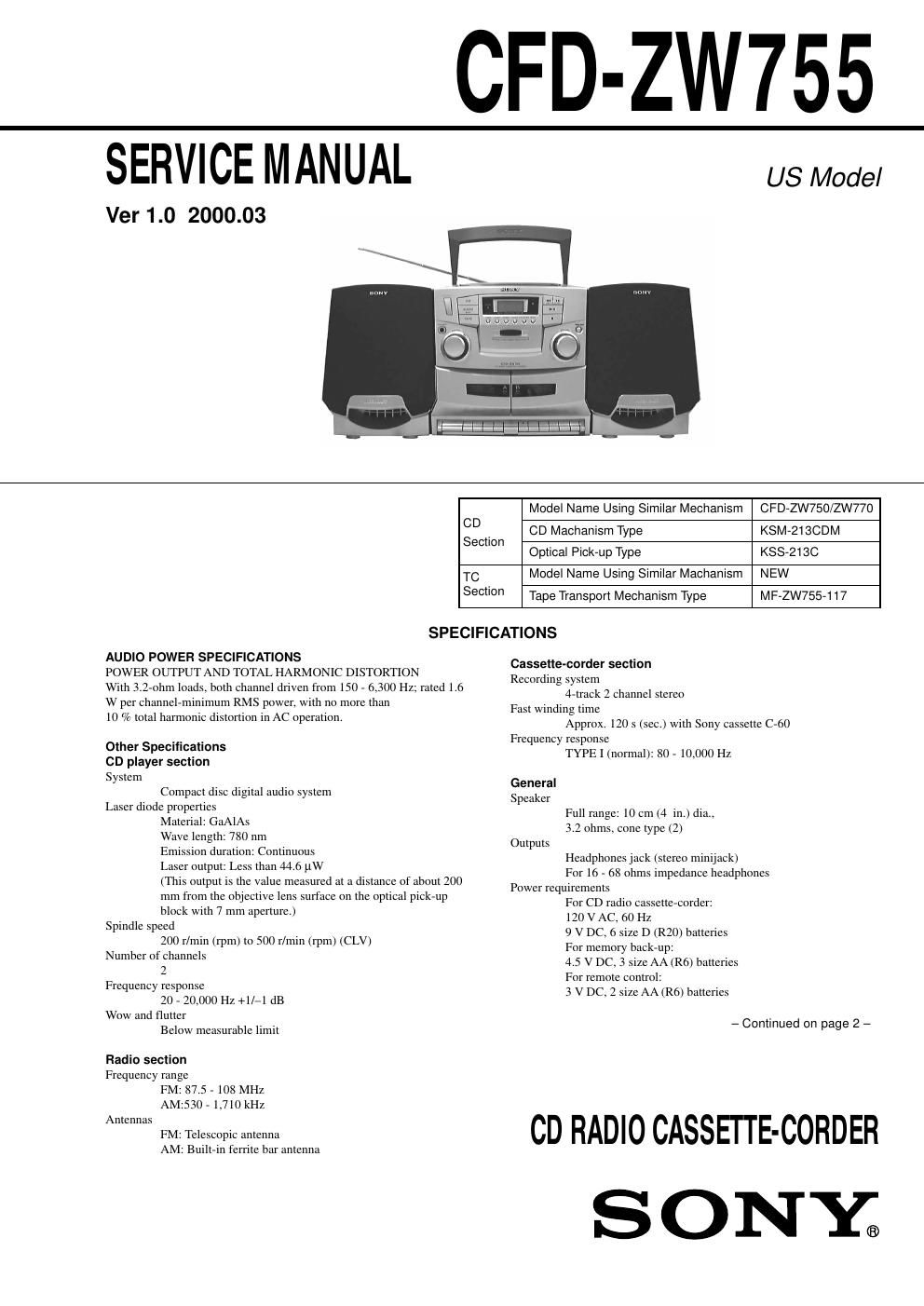

Page 1

– 2 – SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS Specifications ........................................................................... 1 1. SERVICING NOTES .................................................... 3 2. GENERAL ....................................................................... 4 3. DISASSEMBLY 3-1. Cabinet (Rear) .......................................................... 6 3-2. Power Board, Back up Board, Battery Board ........... 6 3-3. CD Block ASSY ....................................................... 7 3-4. Control Board ........................................................... 7 3-5. Power Key Board, Mega Bass Board, Preset Board, Volume Board ..................................... 8 3-6. Key Board ................................................................. 8 3-7. Headphone Board ..................................................... 8 3-8. REC SW Board, PB Board ....................................... 9 3-9. Mechanism Deck ...................................................... 9 3-10. Capstan/reel Motor (M301), Belt ........................... 10 3-11. Main Board ............................................................. 10 3-12. CD Board ................................................................. 11 3-13. Optical pick-up Block ............................................. 11 4. ADJUSTMENTS 4-1. Mechanical Adjustments ........................................... 12 4-2. Electrical Adjustments .............................................. 12 5. DIAGRAMS 5-1. Explanation of IC Terminals ..................................... 15 5-2. Block Diagrams ........................................................ 17 5-3. Schematic Diagram (Main Section) ......................... 21 5-4. Printed Wiring Boards (Main Section) ..................... 25 5-5. Printed Wiring Boards (Control Section) ................. 28 5-6. Schematic Diagram (Control Section) ...................... 31 5-7. Printed Wiring Boards (CD Section) ........................ 34 5-8. Schematic Diagram (CD Section) ............................ 37 6. EXPLODED VIEWS 6-1. Rear Cabinet Section ............................................... 44 6-2. Front Cabinet Section .............................................. 45 6-3. CD Section .............................................................. 46 6-4. Tape Mechanism Section-1 (MF-ZW755-117) ....... 47 6-5. Tape Mechanism Section-2 (DECK A) (MF-ZW755-117) ................................................... 48 6-6. Tape Mechanism Section-3 (DECK A) (MF-ZW755-117) ................................................... 49 6-7. Tape Mechanism Section-4 (DECK B) (MF-ZW755-117) ................................................... 50 6-8. Tape Mechanism Section-5 (DECK B) (MF-ZW755-117) ................................................... 51 6-9. Optical pick-up Section (KSM-213CDM) .............. 52 6-10. Speaker Section ....................................................... 53 7. ELECTRICAL PARTS LIST .................................... 54 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Power consumption AC 15 W Battery life For CD radio cassette-corder: FM recording Sony R20P: approx. 7.5 h Sony alkaline LR20: approx. 22 h Tape playback Sony R20P: approx. 7 h Sony alkaline LR20: approx. 20 h CD playback Sony R20P: approx. 3 h Sony alkaline LR20: approx. 10 h For memory back-up: approx. 1 year Dimensions Approx. 650 x 265 x 256 mm (w/h/d) (25 5⁄8 x 10 1⁄2 x 10 1⁄8 inches) (incl. projecting parts) Mass Approx. 6.7 kg (14 lb. 12 oz) (incl. batteries) Supplied accessory AC power cord (1) Remote control (1) Design and specifications are subject to change without notice. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe more than 30 cm away from the objective lens. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270°C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat.

Page 2
