Sony cfd z 110 service manual

This is the 33 pages manual for sony cfd z 110 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 33

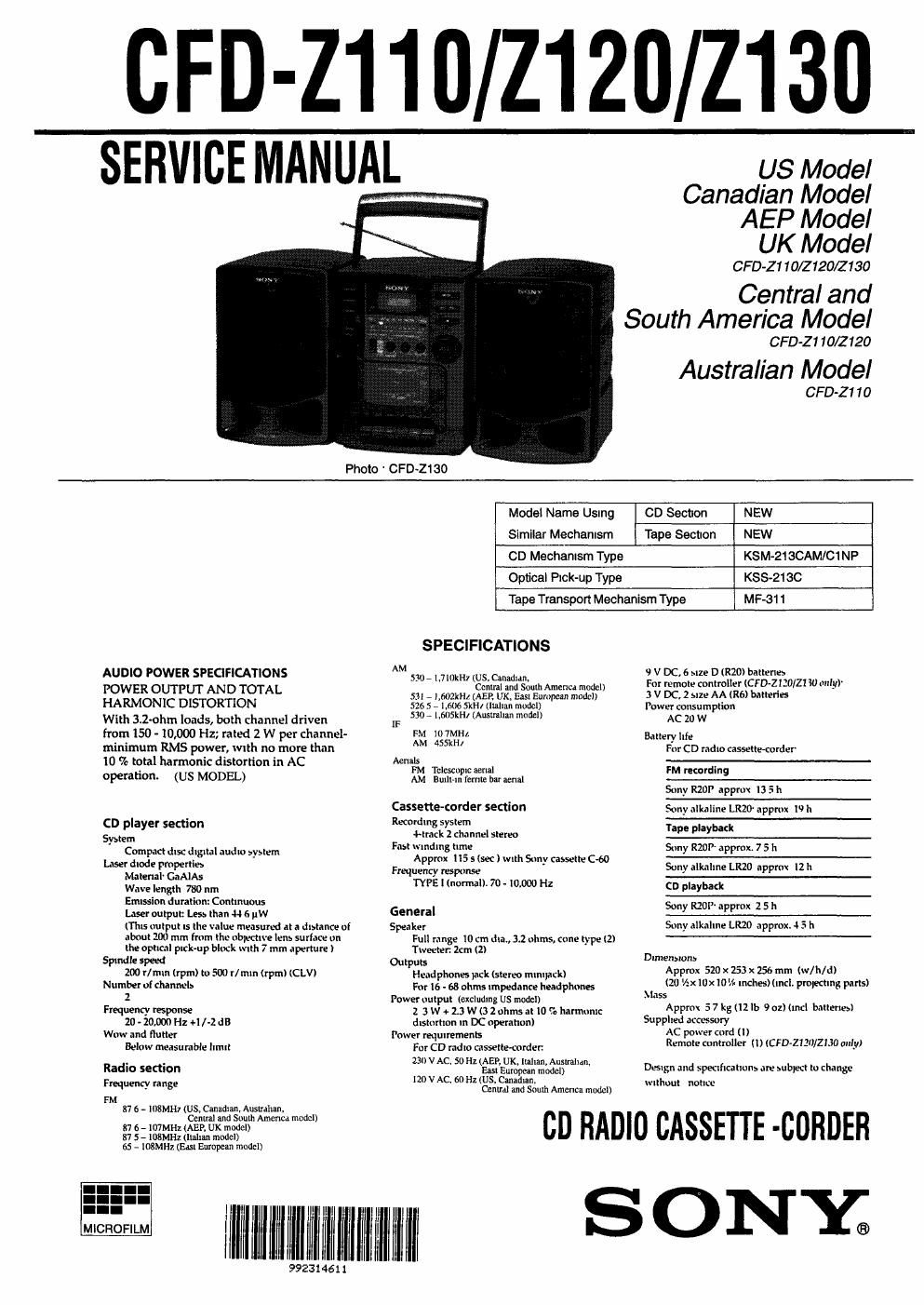

sony cfd z 110 service manual

Extracted text from sony cfd z 110 service manual (Ocr-read)


Page 2

CLASS 1 LASER PRODUCT
LUOKAN I LASERLAITE

KLASS I LASERAPPARKF

This Compact Disc player is clasSified as a
CLASS I LASER product.

The CLASS I LASER PRODUCT label is
located on the rear extenor.

CAUTION

Use of controls or adjustments or perfonnance
of procedures other than those speCified herein
may result in hazardous radiation exposure.

MODEL IDENTIFICATION
- Model Number Label -
CFD-Zi 1 o

CFO-Z120
CFD-Zi 30

SON!
MODEL NO. mm

CD RADIO CASSETTE-CORDER

////////////////////////

US. Canadian.Centrai St South America modal : AC 120V~60Hz
AEP. UK. Italian. Australian,Easl European model :AC 230V~50Hz

SAFETY-RELATED COMPONENT WARNING"

COMPONENTSIDENTIFIED BY MARK AOR DO'IT ED UNEWITH
MARK AON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.

TABLE OF CONTENTS
1. SERVICING NOTES ...........................

2. GENERAL
Location and Function of Controls .

3. DISASSEMBLY

3-1. Rear Cabinet Assy Removal
3-2. Power Board Removal .....
3~3. Main Board. Surround SW Board Removal ..
34. Mechanism Deck Removal ....................
3-5. Cassette Holder Assy Removal ..................
3-6. Control Board, Lamp Board,

CD Main Board Removal .....................................
3-7. Optical Pick-up Block CD Motor Board Removal


4. DIAL POINTER INSTALLATION ............................... 10

5. ADJUSTMENTS
5-1 . Mechanical Adjustments ..
5-2. Electrical Adjustments .

6. EXPLANATION OF ICTERMINALS ......................... 18

7. DIAGRAMS
7-]. Block Diagram ...................................
7-2. Printed Wiring Boards - CD Section
7-3. Schematic Diagram ~ CD Section -
7-4. Schematic Diagram - Main Section - .
7-5. Printed Wiring Boards - Main Section -


8. EXPLODED VIEWS
8-l. Cabinet Section ........


8-2. Front Cabinet Section .. .
8-3. Mechanism Deck Section -1 (MF-311) . 40
8-4. Mechanism Deck Section -2 (MF-Bll) . 41

8-5. CD Block Section ..............................
8-6. Optical Pick-up Section (KSM-213CAMIC1NP) 43
8-7. Speaker Section ........................................................ 44

ELECTRICAL PARTS LIST ........................................ 45

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITEI

LES COMPOSANTS IDEN'I1FIES PAR UNE MAROUE ASUR LES
DIAGRAMMES SCHEMATIQUES ET LA LISTE DES PIECES
SONT CRITIQUES POUR LA SECURITE DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS DUE PAR DES PIECES
SONY DONT LE5 NUMEROS SONT DONNES DANS CE MANUEL
0U DANS LES SUPPLEMENTS PUBLIES PAR SONY.
