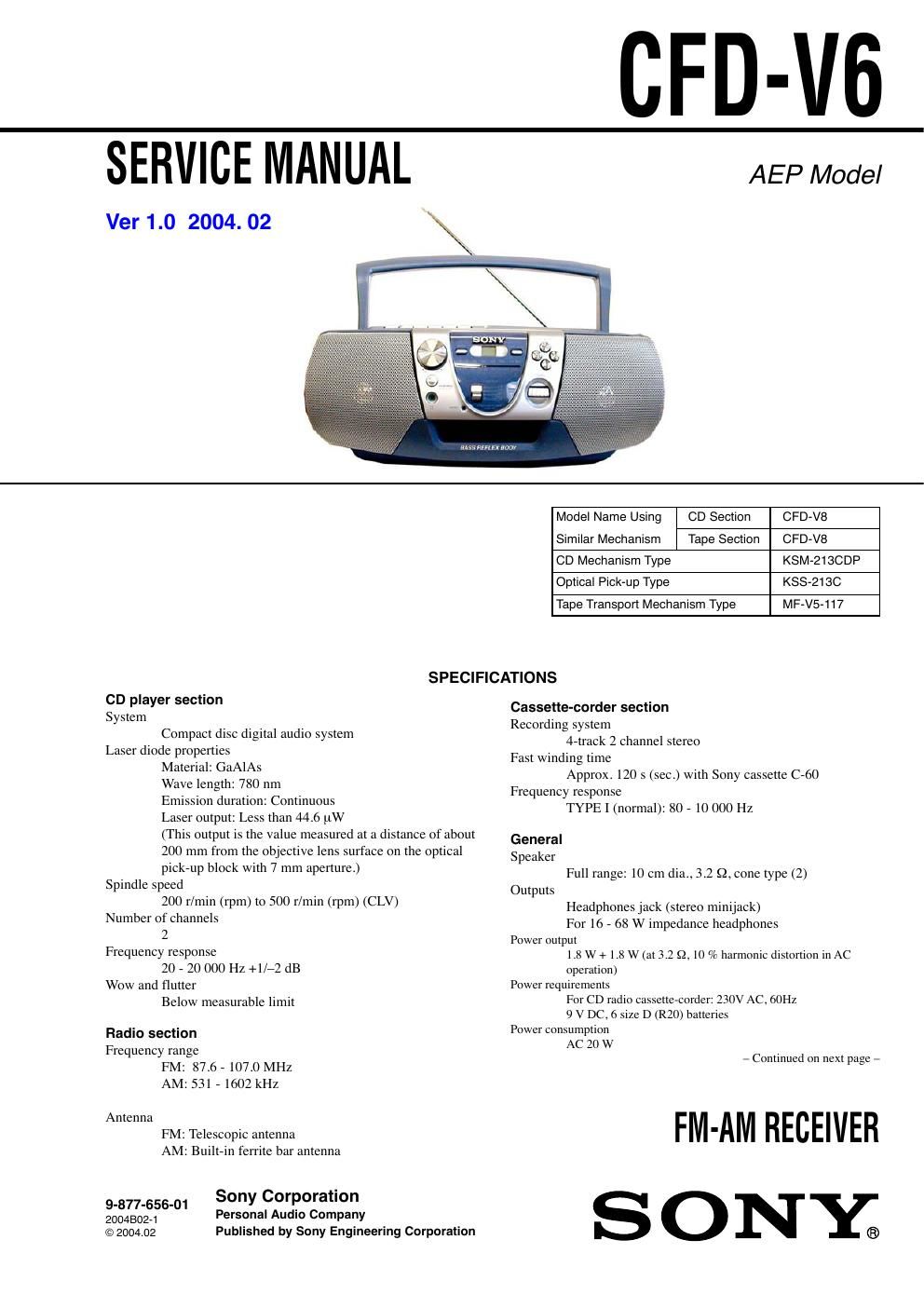

2 CFD-V6 TABLE OF CONTENTS Battery life For CD radio cassette-corder: FM recording Sony R20P: approx. 13.5 h Sony alkaline LR20: approx. 20 h Tape playback Sony R20P: approx. 7.5 h Sony alkaline LR20: approx. 15 h CD playback Sony R20P: approx. 2.5 h Sony alkaline LR20: approx. 7 h Dimensions Approx. 420 x 165 x 256 mm (w/h/d) (16 5⁄8 x 6 1⁄2 x 10 1⁄8 inches) (incl. projecting parts) Mass Approx. 4.1 kg (9 lb. 1 oz) (incl. batteries) Supplied accessory AC power cord (1) Design and specifications are subject to change without notice. -AbbreviationCET : East European & Russian SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.REPLACE THESE COMPONENTS WITH SONY PARTS WHOSEPA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located at the bottom of the player. Information For customers in Europe CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Specifications ............................................................................ 1 1. SERVICING NOTES ................................................ 3 2. GENERAL Location and Function of Controls .................................. 4 3. DISASSEMBLY 3-1. Cabinet (Front) Sub ASSY, Cabinet (Rear) ........... 5 3-2. Control Board ......................................................... 5 3-3. Cabinet (upper) ...................................................... 6 3-4. Power Board, Inlet Board, BATT (R) Board, BATT (L) Board ..................................................... 6 3-5. Volume Board, FM SW Board, Main Board .......... 7 3-6. PRE Board, Mechanism Deck, Optical Pick-up Section, CD Board ....................... 7 3-7. Belt, M601 (Capstan / Reel Motor), HRP901 Head, Magnetic (Record/Playback), HE901 Head (Erase) ............................................... 8 3-8. Optical Pick-up (KSS-213C) ................................. 8 4. DIAL POINTER INSTALLATION ......................... 9 5. ADJUSTMENTS 5-1. Mechanical Adjustments ........................................ 10 5-2. Electrical Adjustments ........................................... 10 6. DIAGRAMS 6-1. IC Pin Function Descrintion .................................. 13 6-2. Block Diagrams – Tuner/TC Section – .................. 15 6-3. Block Diagrams – Main Section – ......................... 16 6-4. Block Diagrams – CD Section – ............................ 17 6-5. Printed Wiring Boards – Main Section – ............... 18 6-6. Schematic Diagrams – Main Section (1/3) – ......... 19 6-7. Schematic Diagrams – Main Section (2/3) – ......... 20 6-8. Schematic Diagrams – Main Section (3/3) – ......... 21 6-9. Printed Wiring Boards – Control/Power Section – .. 22 6-10. Printed Wiring Boards – Control/Power Section – 23 6-11. Schematic Diagrams – CD Section – ..................... 24 6-12. Printed Wiring Boards – CD Section – .................. 25 7. EXPLODED VIEWS 7-1. Front Cabinet Section ............................................. 30 7-2. Rear Cabinet Section .............................................. 31 7-3. Upper Cabinet Section ........................................... 32 7-4. Mechanism Deck Section (1) ................................. 33 7-5. Mechanism Deck Section (2) ................................. 34 7-6. CD Block Section ................................................... 35 8. ELECTRICAL PARTS LIST .................................. 36
Page 2
3 CFD-V6 NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe more than 30 cm away from the objective lens. CHUCK PLATE JIG ON REPAIRING On repairing CD section, playing a disc without the CD lid, use Chuck Plate Jig. - Code number of Chuck Plate Jig : X-4918-255-1 SECTION 1 SERVICING NOTES LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Press CD open knob. 2. Open the lid for CD. 3. Push on SWITCH (S801) as following figure. 4. Confirm the laser diode emission while observing the objecting lens. When there is no emission, Auto Power Control circuit or Optical Pick-up is broken. Objective lens moves up and down once for the focus search. r UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead-free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Insert a precision screw driver and push SWITCH (S801)
