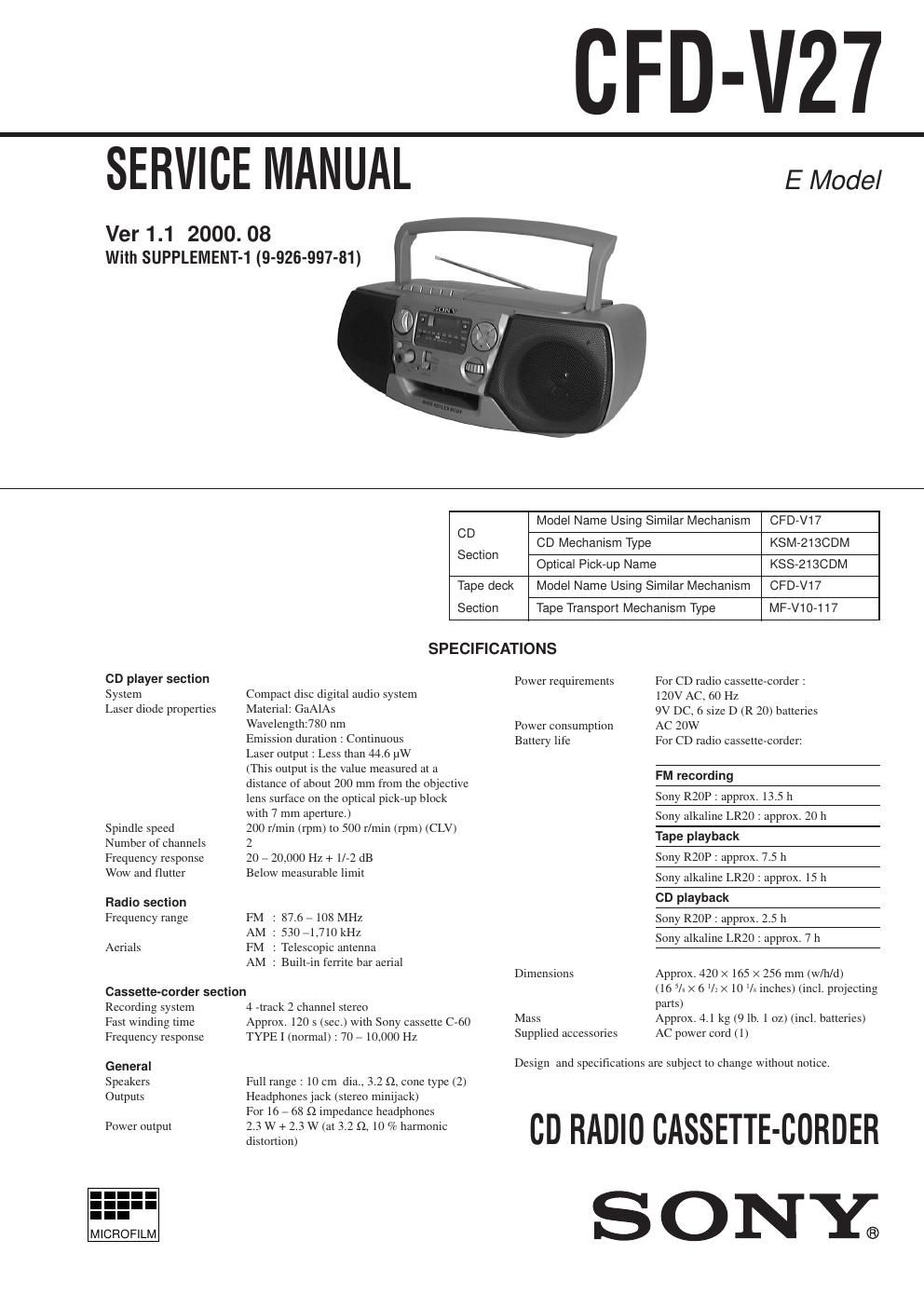

sony cfd v 27 service manual

Extracted text from sony cfd v 27 service manual (Ocr-read)


Page 1

Ñ 2 Ñ TABLE OF CONTENTS 1. SERVICE NOTES ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááá 3 2. GENERAL ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááááááááááááááá 4 3. DISASSEMBLY 3-1. Front Cabinet Assy ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááá 5 3-2. Control Board ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááááááá 6 3-3. Cabinet (upper) Assy ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááá 6 3-4. Inlet, Power, Battery, Half Battery Board ááááááááááááááááááááááááááá 7 3-5. Main Board ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááááááááááá 7 3-6. Mechanism Deck, Optical Pick-up Section áááááááááááááááááááááááá 8 4. DIAL POINTER INSTALLATION ááááááááááááááááááááááááááááááá 9 5. ADJUSTMENT 5-1. Mechanical Adjustment ááááááááááááááááááááááááááááááááááááááááááááááááááá\ á 10 5-2. Electrical Adjustment ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááá 10 5-3. Tuner Section ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááááááááá 11 5-4. Reference ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááááááááááááááá 15 6. DIAGRAM 6-1. Circuit Board Location ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áá 17 6-2. Block Diagram ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááá 18 6-3. Printed Wiring Board ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááá 21 6-4. Schematic Diagram Ð Main Section(1/2) Ð áááááááááááááááááááááá 25 6-5. Schematic Diagram Ð Main Section(2/2) Ð áááááááááááááááááááááá 30 6-6. Explanation of IC Terminals áááááááááááááááááááááááááááááááááááááááááááá 33 7. EXPLODED VIEWSááááááááááááááááááááááááááááááááááááááááááááááááá 38 8. ELECTRICAL PARTS LISTááááááááááááááááááááááááááááááááááá 44 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

Page 2

Ñ 3 Ñ SECTION 1 SERVICE NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc., on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. CHUCK PLATE JIG ON REPAIRING On repairing CD section, playing a disc without the CD lid, use Chuck Plate Jig. · Code number of Chuck Plate Jig : X-4918-255-1 LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Press CD open knob. 2. Open the lid for CD. 3. Push on SWITCH (S801) as following figure. 4. Confirm the laser diode emission while observing the objecting lens. When there is no emission, Auto Power Control circuit or Optical Pick-up is broken. Objective lens moves up and down once for the focus search. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. The following caution label is located inside the unit. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Insert a precision screw driver and push SWITCH(S801)
