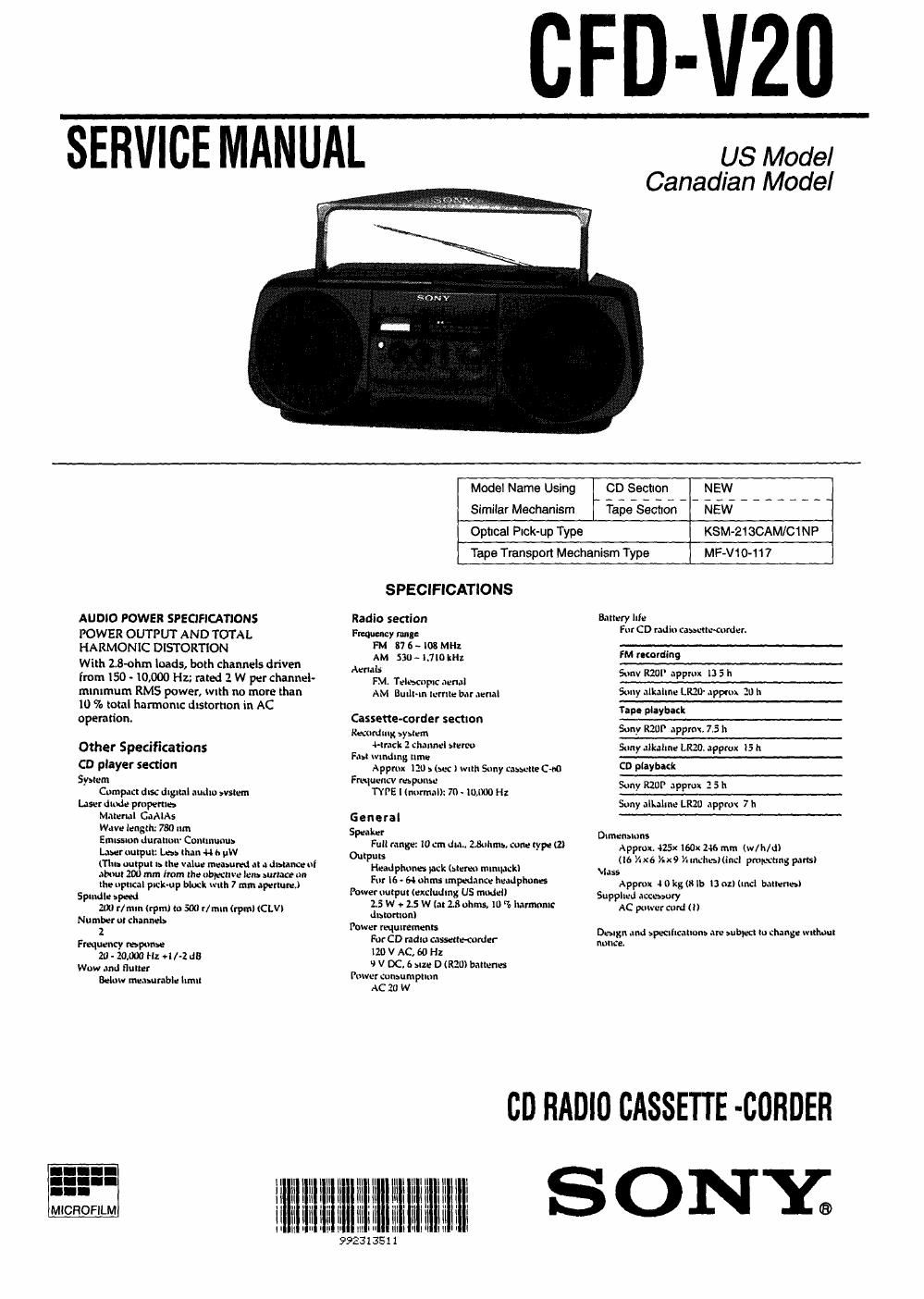

Page: 1 / 26
sony cfd v 20 service manual

Extracted text from sony cfd v 20 service manual (Ocr-read)


Page 2

Spectfications ......
Safety Check-out .

1.

2.

TABLE OF CONTENTS

SERVICING NOTES ................................................. 3

GENERAL
Location and Function of Controls . .

DISASSEMBLY
3-1. Front Cabinet, W8 SW Board,

SW Board Removal ................................................ 5
3-2. Maga Bass Board, Power Board,

AC Inlet Board, BATT Board Removal. 5
3-3. Upper Cabinet Removal ..... . .................... .
3-4. Optical pick-up Section,

Mechanism deck, Main Board Removal .................... 6

DIAL POINTER INSTALLATION .................................. 7

ADJUSTMENTS
5-1. Mechanical Adjustments
5-2 Electrical Adjustments

EXPLANATION OF IC TERMINALS ...................... 14

DIAGRAMS

7-1. Block Diagram .. .
7-2. Prmted Wiring Boards
7-3. Schematic Diagram - Main Section
7-4. Schematic Diagram - CD Section -

EXPLODED VIEWS

8- 1. Front Cabinet Section .
8-2. Upper Cabinet Section
8-3. Rear Cabinet Section ..... . ..
8-4. Mechanism Deck Section (1) (MF-VlO-ll7) .........
8-5, Mechanism Deck Section (2) (MF-VlO-117) ........... 37
86, Optical Pick-up Section (KSM-213CAM/C1NP) 38

ELECTRICAL PARTS LIST . . 39

CAUTION

Use of controls or adjustments or performance
of procedures other than those specrfied herein
may result in hazardous radiation exposure.

Laser component in this product is capable of emitting
radiation exceeding the limit for Class 1.

SAFETY-RELATED COMPONENTWARNINGII

COMPONENTS IDENTIFIED BY MARK AOR DOTI'ED LINE WITH
MARK AON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL T0 SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION Au COMPOSANT AVANT RAPPORT
A LA sEcuniTE!

LEs COMPOSANTS iDENTiFiEs PAR UNE MAROUE asun LES
DIAGRAMMES SCHEMATIOU Es ET LA LISTE DES PIECES
SONT CRITIQUES noun LA sEcuniTE DE FONCTIONNEMENT.
NE REMPLAOER cEs COMPOSANTS QUE PAR DES PIECES
souv DONT LEs NUMEnos sour DONNES DANS cE MANUEL
ou DANS LEs SUPPLEMENTS PUBLIES PAR SONY.
