Sony cfd v 17
This is the 58 pages manual for sony cfd v 17.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cfd v 17 (Ocr-read)

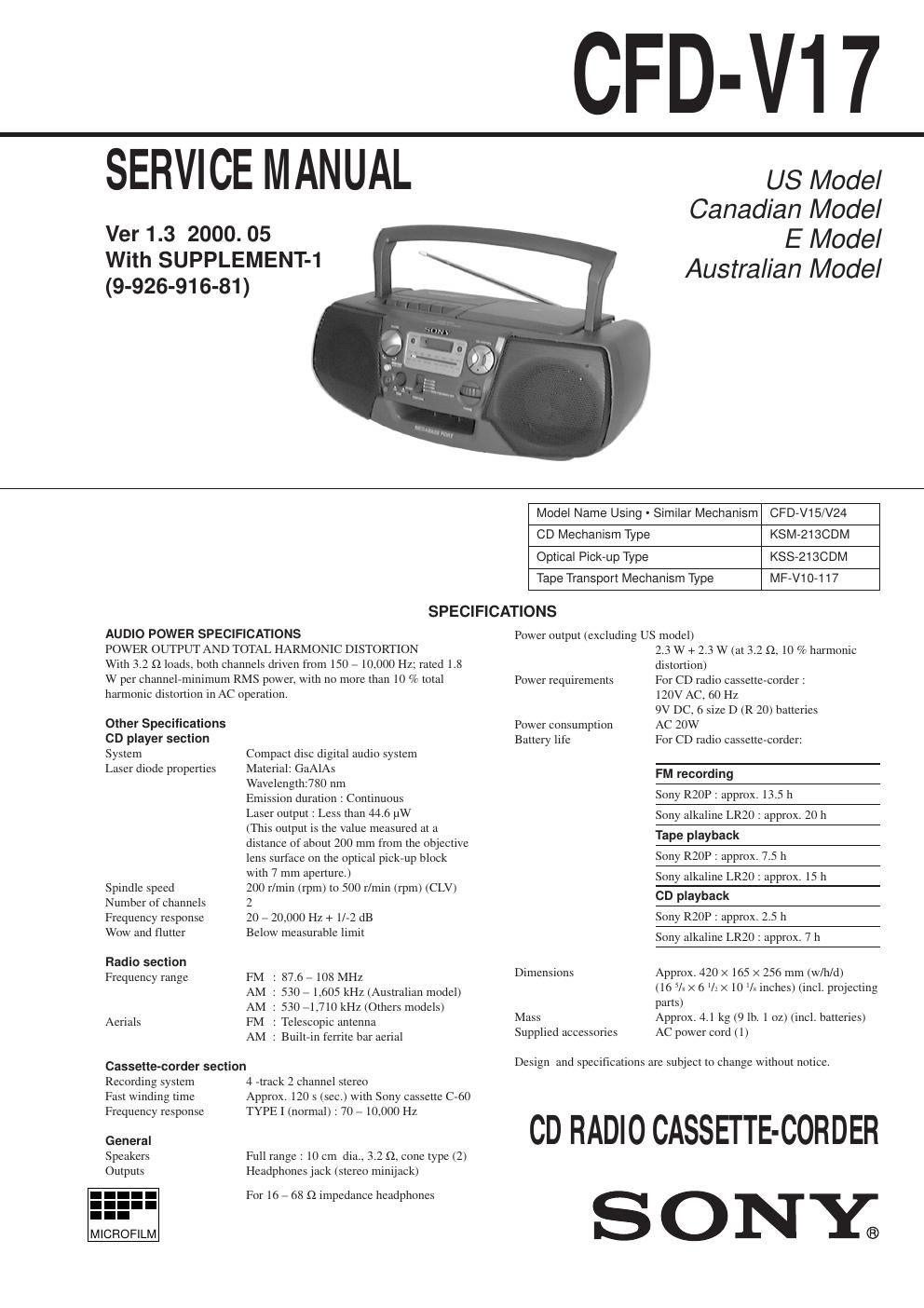

Page 1
Ñ 2 Ñ TABLE OF CONTENTS 1. SERVICE NOTES ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááá 3 2. GENERAL ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááááááááááááááá 4 3. DISASSEMBLY 3-1. Front Cabinet Assy ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááá 5 3-2. Control Board ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááááááá 6 3-3. Cabinet (upper) Assy ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááá 6 3-4. Inlet, Power, Battery, Half Battery Board ááááááááááááááááááááááááááá 7 3-5. Main Board ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááááááááááá 7 3-6. Mechanism Deck, Optical Pick-up Section áááááááááááááááááááááááá 8 4. DIAL POINTER INSTALLATION ááááááááááááááááááááááááááááááá 9 5. ADJUSTMENT 5-1. Mechanical Adjustment ááááááááááááááááááááááááááááááááááááááááááááááááááá\ á 10 5-2. Electrical Adjustment ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááá 10 5-3. Tuner Section ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááááááááá 11 5-4. Reference ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááááááááááááááá 15 6. DIAGRAM 6-1. Circuit Board Location ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áá 17 6-2. Block Diagram ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááá 18 6-3. Printed Wiring Board ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááá 21 6-4. Schematic Diagram Ð Main Section(1/2) Ð áááááááááááááááááááááá 25 6-5. Schematic Diagram Ð Main Section(2/2) Ð áááááááááááááááááááááá 30 6-6. Explanation of IC Terminals áááááááááááááááááááááááááááááááááááááááááááá 33 7. EXPLODED VIEWSááááááááááááááááááááááááááááááááááááááááááááááááá 38 8. ELECTRICAL PARTS LISTááááááááááááááááááááááááááááááááááá 44 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéSES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPƒMENTS PUBLIƒS PAR SONY. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15 µF 1.5 k ½ AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage.
