Sony cfd v 15 service manual

This is the 33 pages manual for sony cfd v 15 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 33
sony cfd v 15 service manual

Extracted text from sony cfd v 15 service manual (Ocr-read)

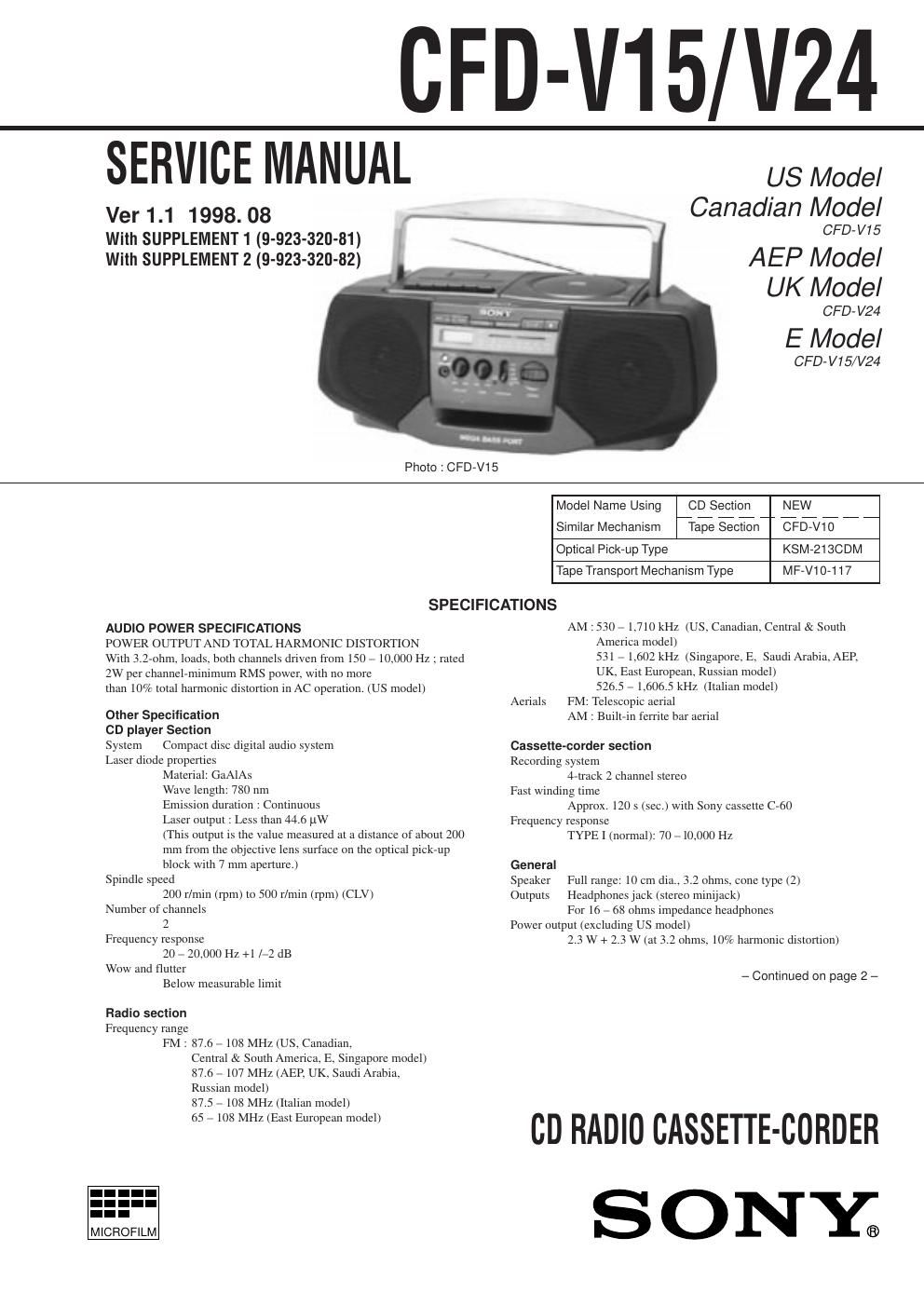

Page 1

Ð 2 Ð ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY.SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS Power requirements For CD radio cassette-corder 120V AC, 60Hz (US, Canadian, Central & South America model) 230V AC, 50Hz (AEP, UK, Italian, East European, Russian, Singapore model) 110 Ð 120V, 220 Ð 240V AC selectable 50/60Hz (E, Saudi Arabia model) 9V DC, 6 size D (R20) batteries Power consumption AC 20 W Battery life For CD radio cassette-corder : FM recording Sony R20P : approx. 13.5 h Sony alkaline LR20 : approx. 20 h Tape playback Sony R20P : approx. 7.5 h Sony alkaline LR20 : approx. 15 h CD playback Sony R20P : approx. 2.5 h Sony alkaline LR20 : approx. 7 h Dimensions Approx. 425 x 160 x 246 mm (w/h/d) (16 3/4 x 6 3/8 x 9 3/4 inches) (incl. projecting parts) Mass Approx. 4.0 kg (8 lb. 13 oz) (incl. batteries) Supplied accessories AC power cord (1 ) Design and specifications are subject to change without notice. Specifications ........................................................................... 1 1. SERVICING NOTES .................................................... 3 2. GENERAL Location and Function of Controls .................................... 4 3. DISASSEMBLY 3-1. Front Cabinet, Contorl Board Removal ...................... 5 3-2. Power Board, AC Inlet Board, BATT Board, VOL SEL Board Removal ................... 5 3-3. Upper Cabinet Removal ............................................. 6 3-4. Optical pick-up Section, Mechanism Deck, Main Board, REC SW Board, CD Motor Board, MONO/ST SW Board Removal ................................ 6 4. DIAL POINTER INSTALLATION ............................ 7 5. ADJUSTMENTS 5-1. Mechanical Adjustments ............................................ 8 5-2. Electrical Adjustments ................................................ 8 6. DIAGRAMS 6-1. Explanation of IC Terminals ...................................... 11 6-2. Block Diagrams ........................................................ 13 6-3. Printed Wiring Boards .............................................. 17 6-4. Schematic Diagram (Main Section) ......................... 21 6-5. Schematic Diagram (CD Section) ............................ 25 7. EXPLODED VIEWS 7-1. Front Cabinet Section ............................................... 32 7-2. Upper Cabinet Section .............................................. 33 7-3. Rear Cabinet Section ................................................ 34 7-4. Mechanism Deck Section (1) ................................... 35 7-5. Mechanism Deck Section (2) ................................... 36 7-6. Optical pick-up Section ............................................ 37 8. ELECTRICAL PARTS LIST................................ 38 This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. MODEL NO. MODEL IDENTIFICATION – Model Number Label – CD RADIO CASSETTE-CORDERCFD-V15 CFD-V24 US, Canadian, Central & South America model : AC120V Ú60Hz AEP, UK, Italian, East European, Russian, Singapore model : AC230V Ú50Hz E, Saudi Arabia model : AC110 Ð 120V , 220 Ð 240V selectable. Ú 50/60Hz

Page 2

Ð 3 Ð NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe more than 30 cm away from the objective lens. CHUCK PLATE JIG ON REPAIRING On repairing CD section, playing a disc without the CD lid, use Chuck Plate Jig. ¥ Code number of Chuck Plate Jig : X-4918-255-1 SECTION 1 SERVICING NOTES LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Press CD open knob. 2. Open the lid for CD. 3. Push on SWITCH (S801) as following figure. 4. Confirm the laser diode emission while observing the objecting lens. When there is no emission, Auto Power Control circuit or Optical Pick-up is broken. Objective lens moves up and down once for the focus search. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer : Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) AC voltmeter (0.75V) To Exposed Metal Parts on Set Earth Ground 0.15 mF 1.5k W Fig. A. Using an AC voltmeter to check AC leakage. Insert a precision screw driver and push SWITCH (S801)
