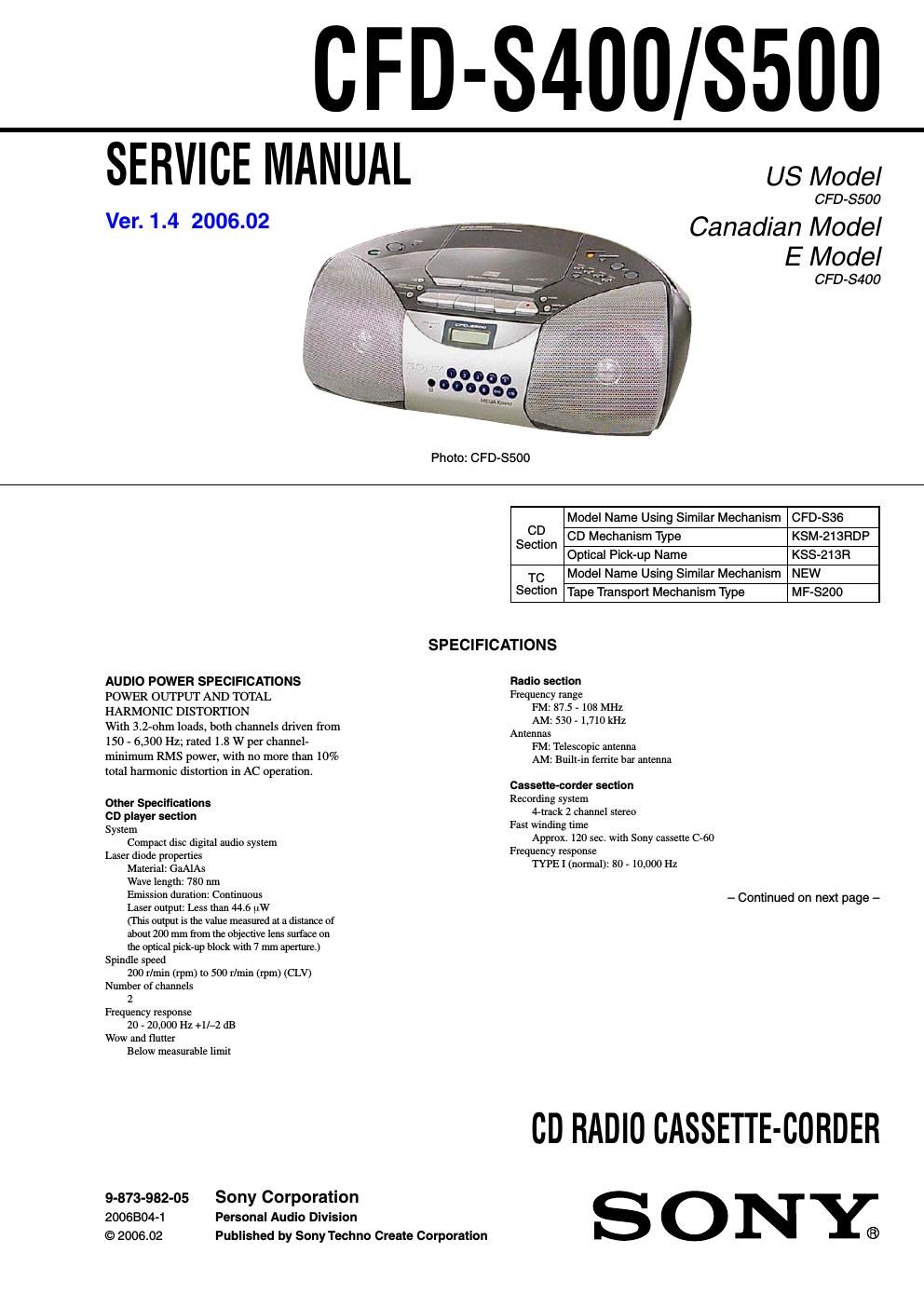

CFD-S400/8500
SERVICE MANUAL
Ver. 1.4 2006.02
US Model
CPD-$500
Canadian Model
E Model
CFD-S400
Photo: CPD-$500
Model Name Using Similar Mechanism CPD-s36
CD CD Mechanism Type KSM-213RDP
Section _ _
Optical Pick-up Name KSS-213R
TC Model Name Using Similar Mechanism NEW
390W?" Tape Transport Mechanism Type MF-S200
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION
With 3.2-ohm loads, both channels driven from
150 - 6,300 Hz; rated 1.8 W per channel-
m.inimum RMS power, with no more than 10%
total harmonic distortion in AC operation.
other Specifications
CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 nW
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the optical picleup block with 7 mm aperture.)
Spindle speed
200 rlmiu (rpm) to 500 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20 , 20,000 Hz +1/72 dB
Wow and flutter
Below measurable limit
9-873-982-05 Sony Corporation
20068044 Personal Audio Division
© 2006.02 Published by Sony Techno Create Corporation
Radio section
Frequency range
FM: 87.5 , 108 MHz
AM: 530 , 1,710 kHz
Antennas
FM: Telescopic antenna
AM: Builtrin ferrite bar antenna
Cassette-corder section
Recording system
4rtrack 2 channel stereo
Fast winding Lime
Approx. 120 sec. with Sony cassette C760
Frequency response
TYPE I (normal): 80 . 10,000 Hz
- Continued on next page -
