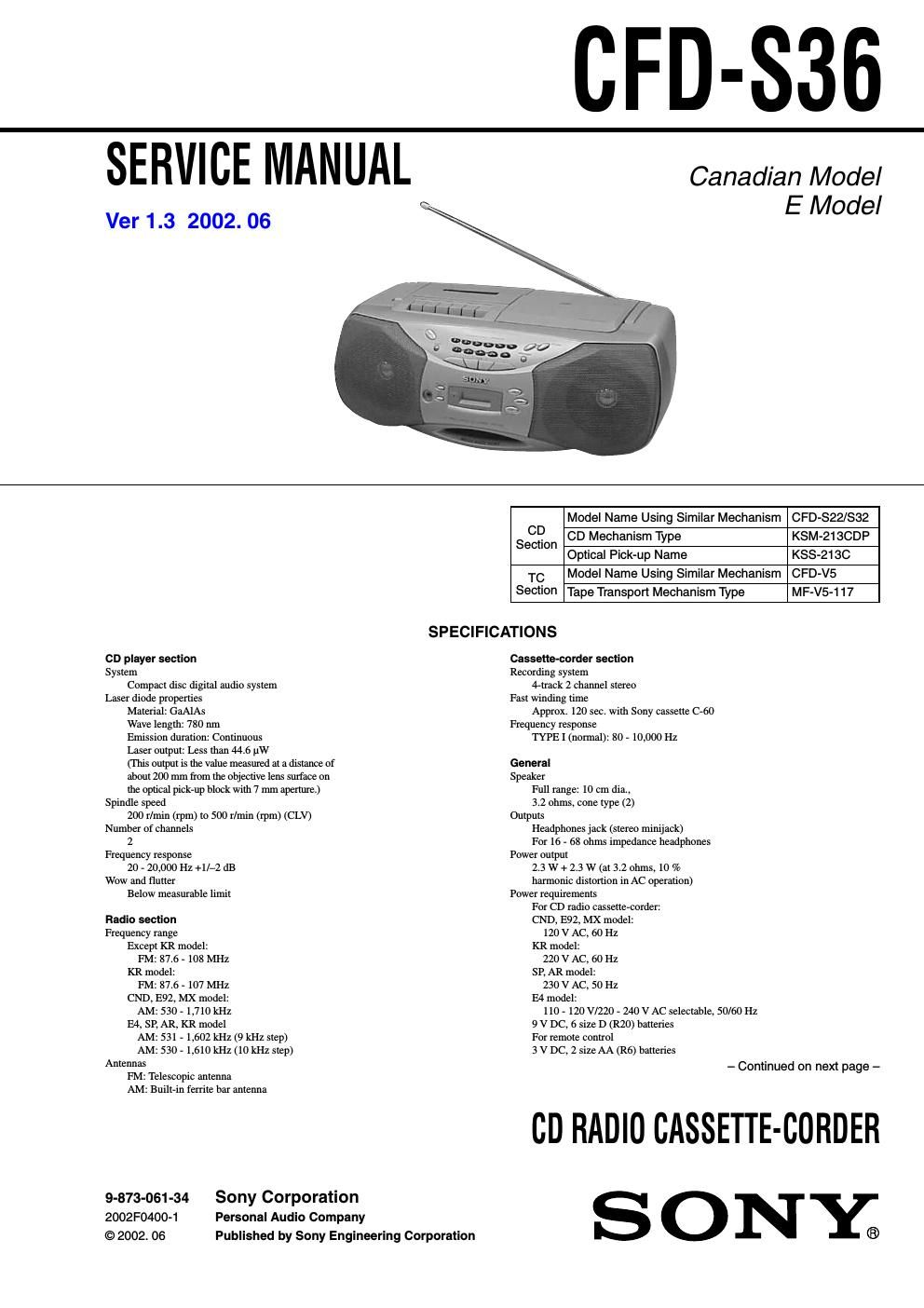

Sony cfd s 36 service manual
This is the 54 pages manual for sony cfd s 36 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cfd s 36 service manual (Ocr-read)
Page 1
2 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Power consumption AC 20 W Battery life For CD radio cassette-corder:FM recordingSony R20P: approx. 13.5 hSony alkaline LR20: approx. 20 hTape playbackSony R20P: approx. 7.5 hSony alkaline LR20: approx. 15 hCD playbackSony R20P: approx. 2.5 hSony alkaline LR20: approx. 7 h Dimensions Approx. 420 × 159 × 284 mm (w/h/d) (16 5/8 × 6 3/8 × 11 1/4 inches) (incl. projecting parts) Mass Approx. 3.8 kg (8 lb. 6 oz.) (incl. batteries) Supplied accessories AC power cord (1) Remote control RMT-CS36A (1) Design and specifications are subject to change without notice. -Abbreviation CND : Canadian model E92 : AC 120V area in E model MX : Mexican model E4 : AC 110-120V/220-240V area in E model SP : Singapore model AR : Argentina model KR : Korean model CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herein may result in haz- ardous radiation exposure. Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be dam- aged by heat. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. CFD-S36 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Page 2
3 TABLE OF CONTENTS 1. SERVICING NOTES ......................................................... 4 2. GENERAL ............................................................................ 5 3. DISASSEMBLY 3-1. Cabinet (Front) Sub Assy .................................................... 6 3-2. Wires ................................................................................... 7 3-3. Power (1) Board, Power (2) Board ...................................... 7 3-4. Voltage Select Board ........................................................... 8 3-5. Cabinet (Upper) Assy .......................................................... 8 3-6. Main Board ......................................................................... 9 3-7. CD Mechanism Block ......................................................... 9 3-8. Tape Mechanism Block ..................................................... 10 3-9. Holder Assy, Cassette ........................................................ 10 3-10. PRE Board ......................................................................... 11 3-11. Belt, M801 (Capstan/Reel Motor), HRP301 (Head, Magnetic) ................................................ 11 3-12. Optical Pick-up ................................................................. 12 4. MECHANICAL ADJUSTMENTS ............................... 13 5. ELECTRICAL ADJUSTMENTS Tape Section .......................................................................... 13 Tuner Section ......................................................................... 14 CD Section ............................................................................ 15 6. DIAGRAMS 6-1. IC Pin Description ............................................................. 16 6-2. Circuit Boards Location .................................................... 17 6-3. Block Diagram – CD Section – ......................................... 18 6-4. Block Diagram – Main Section – ...................................... 19 6-5. Printed Wiring Board – CD Section – ............................... 20 6-6. Schematic Diagram – CD Section – .................................. 21 6-7. Printed Wiring Boards – Main Section – .......................... 22 6-8. Schematic Diagram – Main Section (1/4) – ...................... 23 6-9. Schematic Diagram – Main Section (2/4) – ...................... 24 6-10. Schematic Diagram – Main Section (3/4) – ...................... 25 6-11. Schematic Diagram – Main Section (4/4) – ...................... 26 6-12. Printed Wiring Boards – Control Section – ....................... 27 6-13. Schematic Diagrams – Control Section – ......................... 28 6-14. Printed Wiring Boards – Power Supply Section – ............ 29 6-15. Schematic Diagrams – Power Supply Section – ............... 30 7. EXPLODED VIEWS 7-1. Cabinet (Front) Section ..................................................... 34 7-2. Cabinet (Rear) Section ...................................................... 35 7-3. Cabinet (Upper) Section .................................................... 36 7-4. Tape Mechanism Section-1 ............................................... 38 7-5. Tape Mechanism Section-2 ............................................... 39 7-6. Optical Pick-up Section .................................................... 40 8. ELECTRICAL PARTS LIST ......................................... 41 CFD-S36
