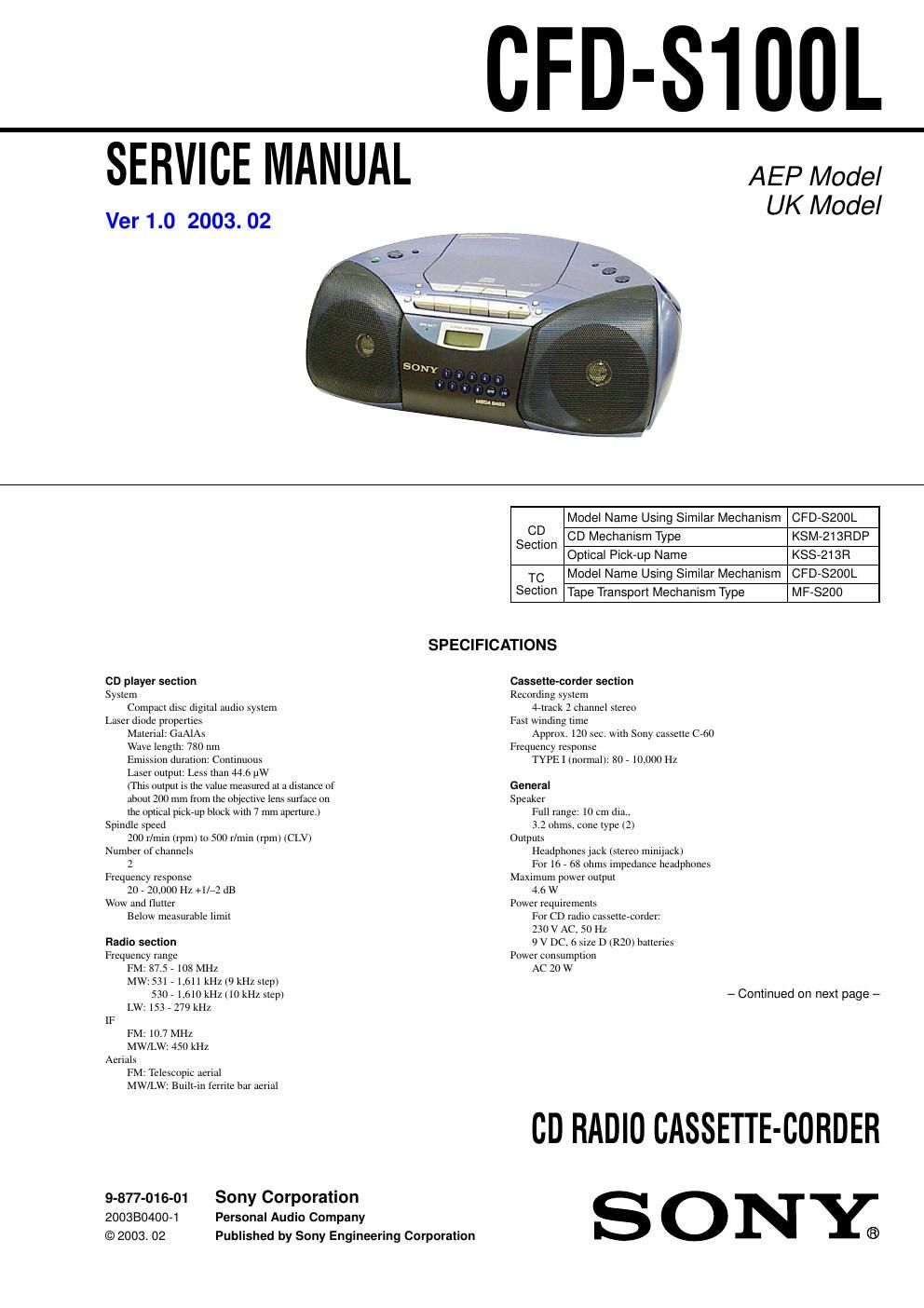

CFD-SIUUL
SERVICE MANUAL
Ver 1.0 2003. 02
AEP Model
UK Model
Model Name Using Similar Mechanism CFD-SZOOL
CD Mechanism Type KSM-213FIDP
Optical Pick-up Name KSS-213Fl
TC Model Name Using Similar Mechanism CFD-SZOOL
Section Tape Transport Mechanism Type MF-SZOO
CD
Section
SPECIFICATIONS
CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 uw
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the optical pickrup block with 7 mm aperture.)
spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20 , 20.000 Hz tel/72 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM: 87.5 , 108 MHz
MW: 531 , 1.611 kHz (9 kHz step)
530 71.610 kHz (10 kHz step)
LW: 153 , 279 kHz
1F
FM: 10.7 Ml-lz
MW/LW: 450 kHz
Aerials
FM: Telescopic aerial
MW/LW: Bulltein ferrite bar aerial
9-877-016-01 Sony Corporation
2003B0400-1 Personal Audio Company
© 2003. ()2 Published by Sony Engineering Corporation
cassette-corder section
Recording system
4etrack 2 channel stereo
Fast winding lime
Approx. 120 sec. with Sony cassette CV60
Frequency response
TYPE I (normal): 80 , 10000 Hz
General
Speaker
Full range: 10 cm dia..
3.2 ohms. cone type (2)
Outputs
l-leadphones jack (stereo minuack)
For 16 , 63 ohms impedance headphones
Maximum power output
4.6 W
Power requirements
For CD radio cassetteecorder:
230 V AC . 50 Hz
9 V DC. 6 size D (R20) batteries
Power consumption
AC 20 W
- Continued on next page -
