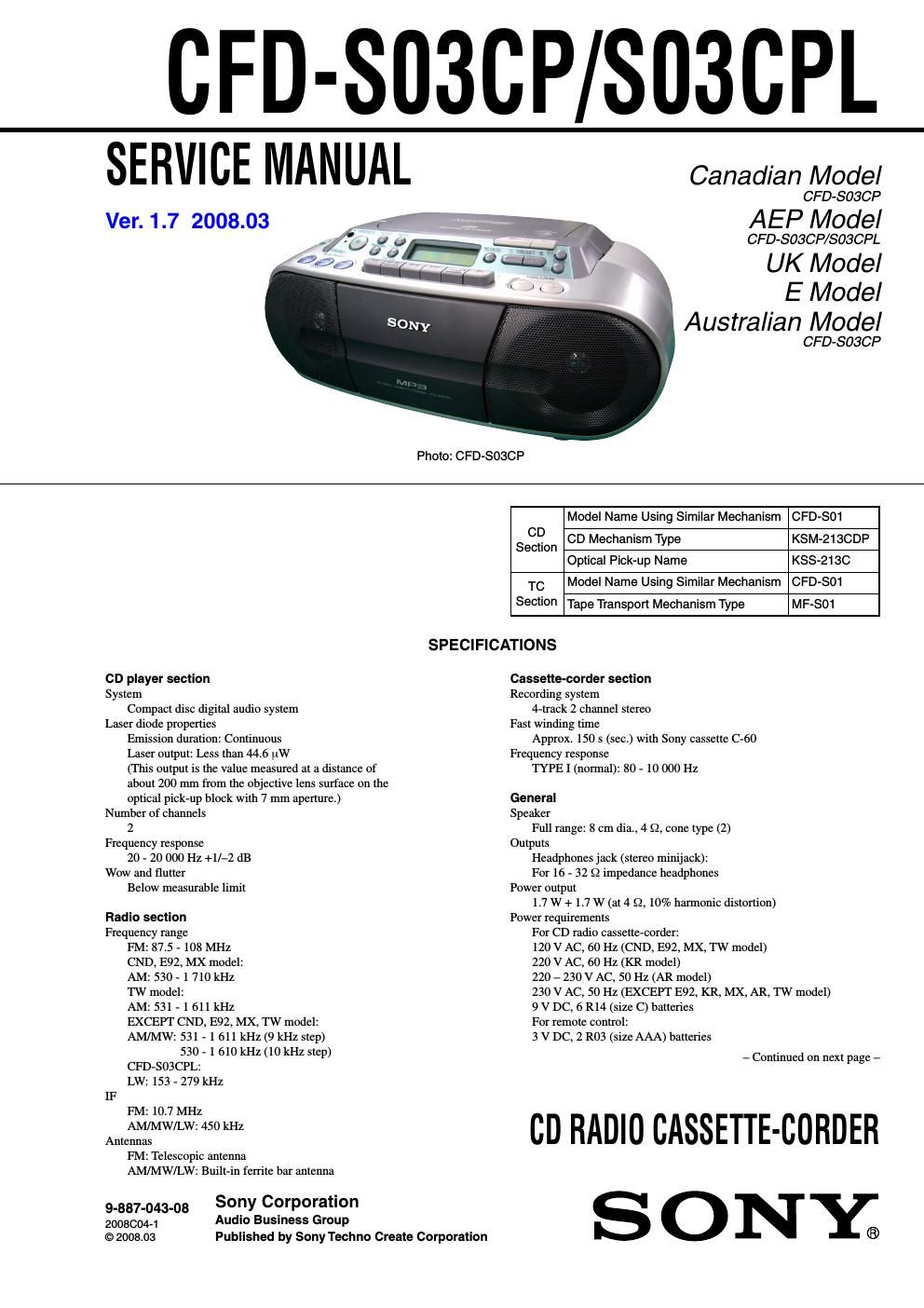

Sony cfd s 03 cp service manual
This is the 98 pages manual for sony cfd s 03 cp service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cfd s 03 cp service manual (Ocr-read)
Page 1
2 CFD-S03CP/S03CPL CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Flexible Circuit Board Repairing - Ke ep the temperature of the soldering iron around 270˚C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. Notes on DualDiscs A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed. Power consumption AC 13 W (CND, E92, MX model) AC 12 W (EXCEPT CND, E92, MX model) Battery life For CD radio cassette-corder: FM recording Sony R14P: approx. 6 h Sony alkaline LR14: approx. 20 h T ape playback Sony R14P: approx. 3 h Sony alkaline LR14: approx. 12 h CD playback Sony R14P: approx. 1.5 h Sony alkaline LR14: approx. 4.5 h Dimensions Approx. 360 × 141 × 235 mm (w/h/d) (incl. projecting parts) Mass Approx. 2.6 kg (incl. batteries) Supplied accessory AC pow er cord (1) Remote control (1) Design and specifications are subject to change without notice. -A bbreviation CND : Canadian model E92 : AC 120V area in E model KR : Korea model MX : Mexican model AR : Argentina model TW : Taiwan model Ve r. 1.2 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE P ART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. A TTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
