Extracted text from sony cfd rg 880cp (Ocr-read)

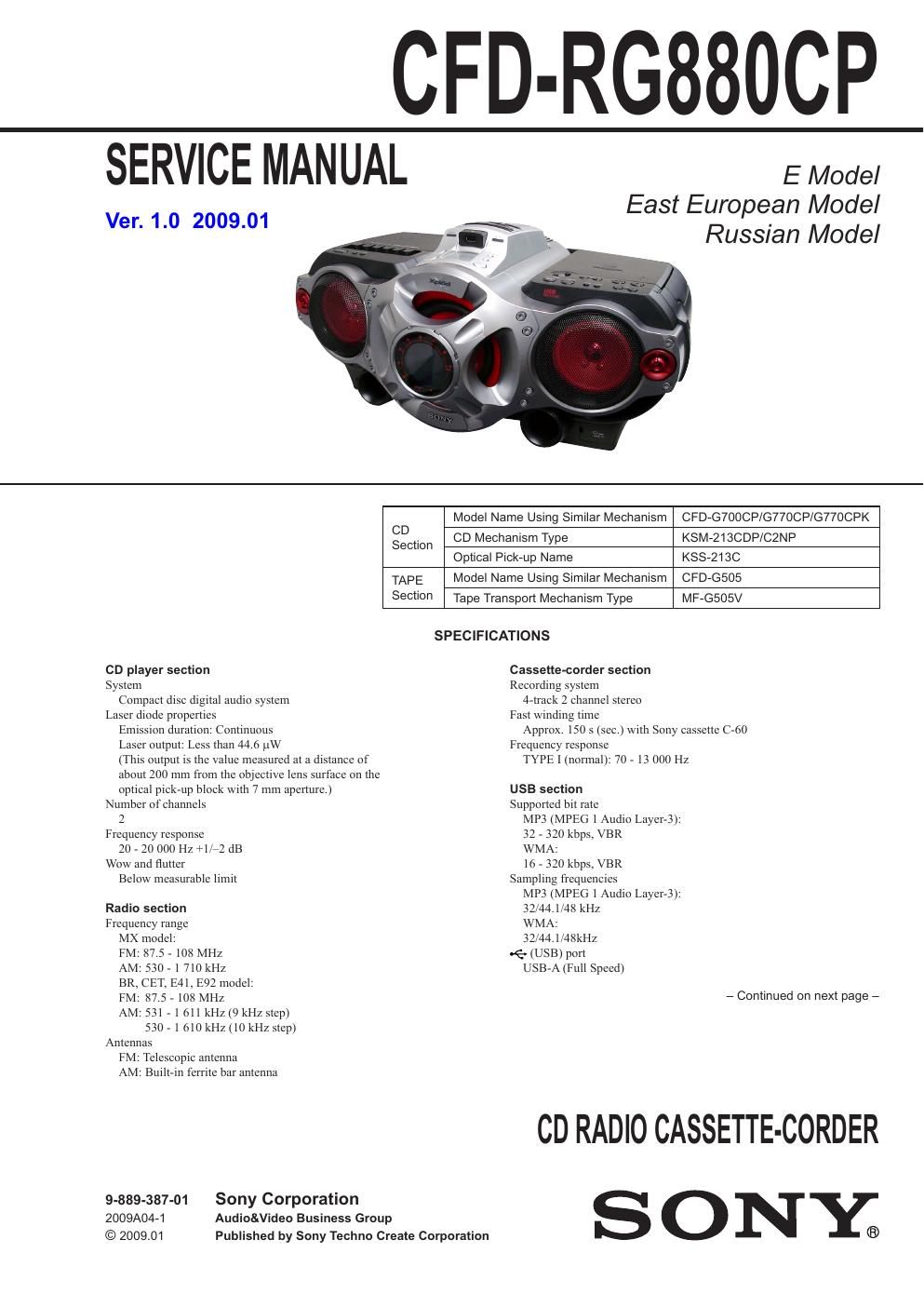

Page 1
CFD-RG880CP 2 UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to fl ow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. NOTES ON CHIP COMPONENT REPLACEMENT - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. FLEXIBLE CIRCUIT BOARD REPAIRING - Keep the temperature of soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONET WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. General Speaker Full range: 10 cm (4 in.) dia., 3.2 Ω, cone type (2) Woofer: 13 cm (5 1/8 in.) dia., 4 Ω, cone type (1) Tweeter: 2 cm ( 13/16 in.) dia. (2) Input Built-in audio cable with stereo-mini plug: Minimum input level 245 mV AUDIO IN Jack (stereo minijack): Minimum input level 245 mV (USB) port: Type A, maximum current 500 mA Outputs Headphones jack (stereo minijack) For 16 - 68 Ω impedance headphones Power output 4 W + 4 W (at 3.2 Ω, 10% harmonic distortion) Woofer: 12 W (at 4 Ω, 10% harmonic distortion) Power requirements For CD radio cassette-corder: E91, MX model: 120 V AC, 60 Hz BR model: 120 – 127/220 – 230 V AC, 50/60 Hz CET, E41 model: 230 V AC, 50 Hz 12 V DC, 8 R20 (size D) batteries For remote control: 3 V DC, 2 R6 (size AA) batteries Power consumption AC 28 W Battery life For CD radio cassette-corder: FM recording Sony R20P: approx. 6 h Sony alkaline LR20: approx. 18 h Tape playback Sony R20P: approx. 1.5 h Sony alkaline LR20: approx. 6 h CD playback Sony R20P: approx. 1 h Sony alkaline LR20: approx. 5 h Dimensions Approx. 551 × 263 × 380 mm (w/h/d) (incl. projecting parts) Mass Approx. 8.5 kg (incl. batteries) Supplied accessories AC power cord (1) Remote control (1) Design and speci fi cations are subject to change without notice. - Abbreviation BR : Brazilian model CET : East European & Russian model E41 : 230V AC area in E model E92 : 120V AC area in E model MX : Mexican model
Page 2
CFD-RG880CP 3 1. SERVICING NOTES ............................................. 4 2. GENERAL .................................................................. 5 3. DISASSEMBLY 3-1. Cabinet (Upper) Section-1 .............................................. 9 3-2. Cabinet (Upper) Section-2 .............................................. 9 3-3. Cabinet (Front) Section ................................................... 10 3-4. POWER KEY Board, HEADPHONE Board, VOLUME KEY Board, AUDIO IN Board ..................... 10 3-5. Front Panel ...................................................................... 11 3-6. LCD Board ...................................................................... 11 3-7. LED Boards .................................................................... 12 3-8. Speaker (13 cm) .............................................................. 12 3-9. Speaker (10 cm) .............................................................. 13 3-10. POWER Board ................................................................ 13 3-11. TUNER Board ................................................................ 14 3-12. MAIN Board ................................................................... 14 3-13. FUNCTION KEY Board, CD KEY Board ..................... 15 3-14. SOUND KEY Board, USB Board .................................. 15 3-15. CD Block Section ........................................................... 16 3-16. Optical Pick-up ............................................................... 16 3-17. Tape Mechanism Deck .................................................... 17 3-18. Belt (Main), Belt (RF) .................................................... 17 3-19. TC Board ........................................................................\ . 18 4. TEST MODE ............................................................ 19 5. MECHANICAL ADJUSTMENTS ...................... 20 6. ELECTRICAL ADJUSTMENTS ........................ 21 TABLE OF CONTENTS 7. DIAGRAMS 7-1. Block Diagram –CD Section– ........................................ 25 7-2. Block Diagram –TUNER Section– ................................. 26 7-3. Block Diagram –MAIN Section– ................................... 27 7-4. Block Diagram –POWER Section– ................................ 28 7-5. Printed Wiring Board –CD Section– .............................. 31 7-6. Schematic Diagram –CD Section– ................................. 32 7-7. Printed Wiring Board –TUNER Section– ....................... 33 7-8. Schematic Diagram –TUNER Section– ......................... 34 7-9. Printed Wiring Board –TC Section– ............................... 35 7-10. Schematic Diagram –TC Section– .................................. 36 7-11. Printed Wiring Board –MAIN Section– ......................... 37 7-12. Printed Wiring Boards –JACK Section– ........................ 38 7-13. Schematic Diagram –MAIN Section (1/3)– ................... 39 7-14. Schematic Diagram –MAIN Section (2/3)– ................... 40 7-15. Schematic Diagram –MAIN Section (3/3)– ................... 41 7-16. Printed Wiring Board –LCD Section– ............................ 42 7-17. Schematic Diagram –LCD Section– ............................... 43 7-18. Printed Wiring Boards –KEY Section– .......................... 44 7-19. Schematic Diagram –KEY Section– ............................... 45 7-20. Printed Wiring Boards –POWER Section– .................... 46 7-21. Schematic Diagram –POWER Section– ......................... 47 8. EXPLODED VIEWS 8-1. Overall Section ............................................................... 56 8-2. Cabinet (Front) Section ................................................... 57 8-3. Cabinet (Rear) Section .................................................... 58 8-4. Cabinet (Upper) Section-1 .............................................. 59 8-5. Cabinet (Upper) Section-2 .............................................. 60 8-6. Tape Mechanism Deck Section ....................................... 61 9. ELECTRICAL PARTS LIST .............................. 62
