Sony cfd f 10 owners manual

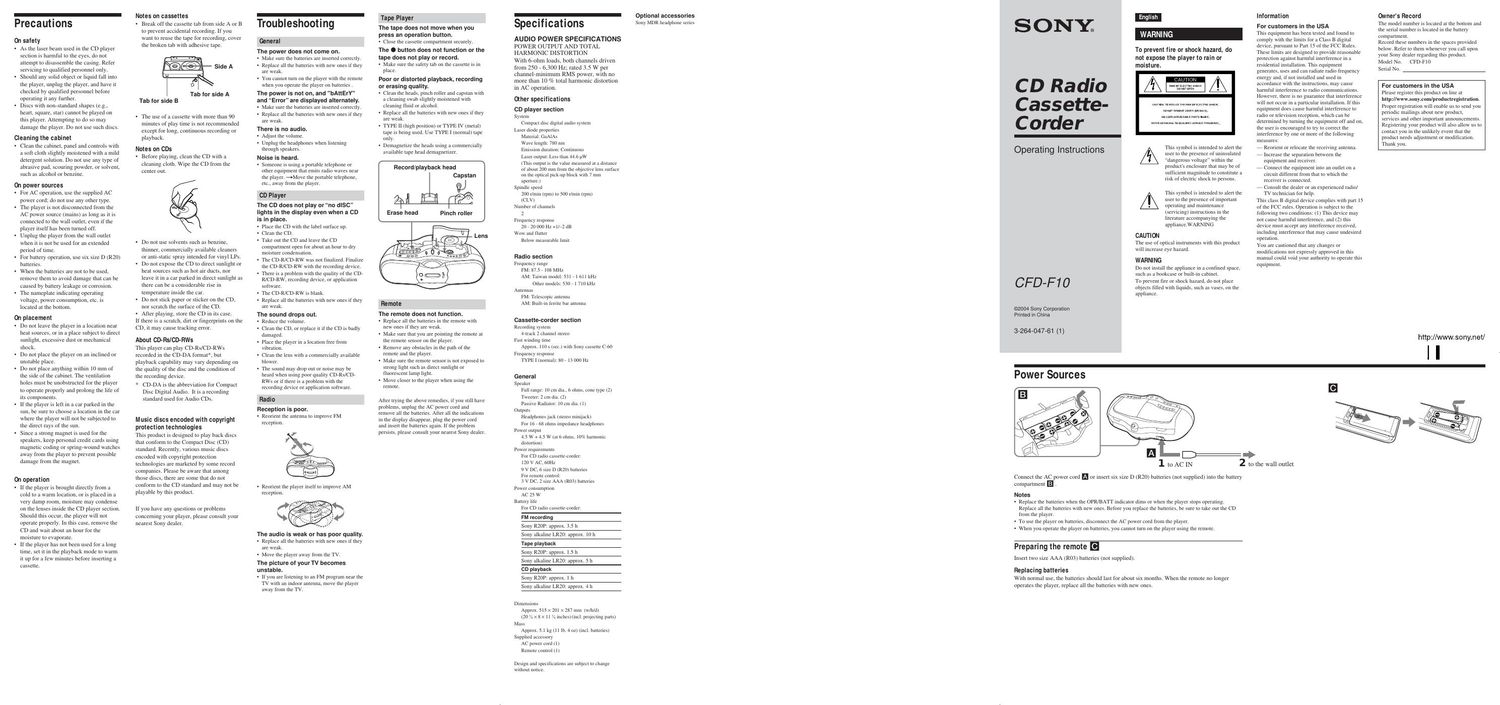

Page 1

Remote Control Location of controls To turn on/off the powerPress POWER. To adjust the volumePress VOLUME +, – (VOL +, – on the remote). To listen through headphonesConnect the headphones to the i (headphones) jack. Adjusting the sound emphasis To reinforce the bass soundPress MEGA BASS. MEGA BASS appears in the display. To return to normal sound, press the button again. To get the MEGA Xpand effectPress MEGA Xpand. "MEGA Xpand" appears in the display. You can get the effect of expansion of the sound field. To return to normal sound, press the button again. Falling asleep to music 1Play the music source you want. 2Press SLEEP to display SLEEP. 3Press SLEEP to select the minutes until the player goes off automatically. Each time you press the button, the indication changes as follows: 60 t 90 t 120 t "OFF" t 10 t 20 t 30. To cancel the sleep functionPress POWER to turn off the power. Note When you are playing a tape using this function: If the tape length of one side is longer than the set time, the player will not go off until the tape reaches the end. SLEEP FUNCTION Number buttons MODE TUNE +,–BAND MEGA XpandNPOWER VOL +*, – x X .,>MEGA BASS Total track number Programmed trackPlaying order DE Total playing time Display MEGA BASS Z PUSH OPEN/CLOSE VOLUME +*, – DSPL/ENT/MEMMODE i x POWER SLEEP OPR/BATT Loading a CD With the labeled side up Inserting a cassette CD RADIO BAND-AUTO PRESETTAPEMEGA Xpand Display Remote sensor Listening to the radio 1 Press RADIO BAND-AUTO PRESET until the band you want appears in the display (direct power-on). Each time you press the button, the indication changes as follows: FM t AM. 2 Hold down TUNE + or – until the frequency digits begin to change in the display. The player automatically scans the radio frequencies and stops when it finds a clear station. If you can't tune in a station, press the button repeatedly to change the frequency step by step. TipIf the FM broadcast is noisy, press MODE repeatedly until "Mono" appears in the display and the radio will play in monaural. Presetting radio stations You can store radio stations into the players memory. You can preset up to 30 radio stations , 20 for FM and 10 for AM in any order. 1 Press RADIO BAND-AUTO PRESET to select the band. 2 Hold down RADIO BAND-AUTO PRESET for 2 seconds until AUTO flashes in the display. 3 Press DSPL/ENT/MEM. The stations are stored in memory from the lower frequencies to the higher ones. If a station cannot be preset automatically You need to preset a station with a weak signal manually. 1Press RADIO BAND-AUTO PRESET to select the band. 2Tune in a station you want. 3Hold down DSPL/ENT/MEM for 2 seconds until the preset number flashes in the display. 4Press PRESET + or – until the preset number you want for the station flashes in the display. 5Press DSPL/ENT/MEM. The new station replaces the old one. On the remote1Press BAND until the band you want appears in the display. 2Tune in a station you want. 3Hold down the number buttons that you want to preset the new station on for about 2 seconds. To select the preset number over 10, press >10 first, then the corresponding number buttons. You need to hold down the last number button to enter for about 2 seconds. (Example: To select 12, press >10 and 1 first, then hold down 2 for about 2 seconds.) Tip The preset radio stations remain in memory even if you unplug the AC power cord or remove the batteries. Playing preset radio stations 1 Press RADIO BAND-AUTO PRESET to select the band. 2 Press PRESET + or – to tune in the stored station. On the remote 1Press BAND. 2Press the number buttons to tune in the stored station. To tune in a preset station over 10, press >10 first, then corresponding number buttons. (Example: To tune in a preset station 12, press >10 and 1 first, and then press 2.) Playing a tape 1 Press TAPE (direct power-on). (On the remote, press POWER and then press FUNCTION repeatedly until "TAPE" appears in the display.) 2 Press xZ to open the tape compartment and insert a recorded tape. Close the compartment. Use TYPE I (normal) tape only. 3 Press N. Tostop playback fast-forward or rewind the tape pause playback eject the cassette Recording 1 Press xZ to open the tape compartment and insert a blank tape. Use TYPE I (normal) tape only. 2 Select the program source you want to record. To record from the CD player Press CD and insert a CD (See Playing a CD). To record from the radio Press RADIO BAND-AUTO PRESET and tune in the station you want (See Listening to the radio). 3 Press z to start recording. (N is depressed automatically.) To Pressstop recordingxZ pause recordingX Press the button again to resume recording. Tips -Adjusting the volume or the audio emphasis will not affect the recording level. -For the best results, use the AC power as a power source for recording. -To erase a recording, proceed as follows: 1Insert a tape with the recording you want to erase. 2Press TAPE. 3Press z. Press xZ M or m X Press the button again to resume play after pause. xZ Then do this Press . or > to select the track that you want to repeat, then press u. Press u. Press u. Press u. Press . or > then press DSPL/ENT/MEM for the tracks you want to program in the order you want up to 20 tracks (see fig. E). Then press u. Press . or > then press DSPL/ENT/MEM for the tracks you want to program in the order you want up to 20 tracks. Then Press u. TUNE –, + m,M PRESET –, + .,> u* With the side you want to play facing upward * *The button has a tactile dot. Playing a CD 1 Press CD (direct power-on). (On the remote, press POWER and then press FUNCTION repeatedly until "Cd" appears in the display.) 2 Load a CD in the CD compartment. 3 Press Z PUSH OPEN/CLOSE to close the CD compartment. 4 Press u (N on the remote). The player plays all the tracks once. Tostop playback pause playback go to the next track go back to the previous track remove the CD locate a point while listening to the sound locate a point while observing the display locate a specific track directly* *You cannot locate a specific track if "SHUF" or "PGM" is lit in the display. Turn off the indication by pressing x. TipTo locate a track numbered over 10, press >10 first, then the corresponding number buttons on the remote. Example:To play track number 23, press >10 first, then 2 and 3. Using the display To check the total track number and playing timePress DSPL/ENT/MEM in stop mode (see fig. D). To check the remaining timePress DSPL/ENT/MEM repeatedly while playing a CD. The display changes as follows: tthe current track number and playing time r the current track number and the remaining time on the current track* r the number of tracks left and remaining time on the CD *For a track whose number is more than 20, the remaining time appears as - -:- - in the display. Selecting the play mode Press MODE until REP 1 REP ALL SHUF SHUF REP PGM PGM REP appears in the display. Then proceed as follows: To Select repeat a single track REP 1 repeat all the track REP ALL shuffle play SHUF repeat tracks SHUF REP in random order program play PGM repeat programmed tracks PGM REP On the remoteWhen youve selected PGM or PGM REP, press the number buttons for the track you want up to 20 tracks, then press N. To cancel selected play modePress MODE repeatedly until the selected mode disappears from the display. To check the programmed track and playing order in the displayTo check the order of tracks before play, press DSPL/ENT/MEM. Every time you press the button, the track number appears in the programmed order. To change the current programPress x once if the CD is stopped and twice if the CD is playing. The current program will be erased. Then create a new program following the programming procedure. Tips -You can play the same program again, since the program is saved until you open the CD compartment. -You can record your own program. After youve created the program, insert a blank tape and press z to start recording. Press x u (X on the remote) Press the button again to resume play after pause. > . Z PUSH OPEN/CLOSE M (forward) or m (backward) while playing until you find the point (> or . on the remote) M (forward) or m (backward) in pause until you find the point (> or . on the remote) a number button of the track on the remote
