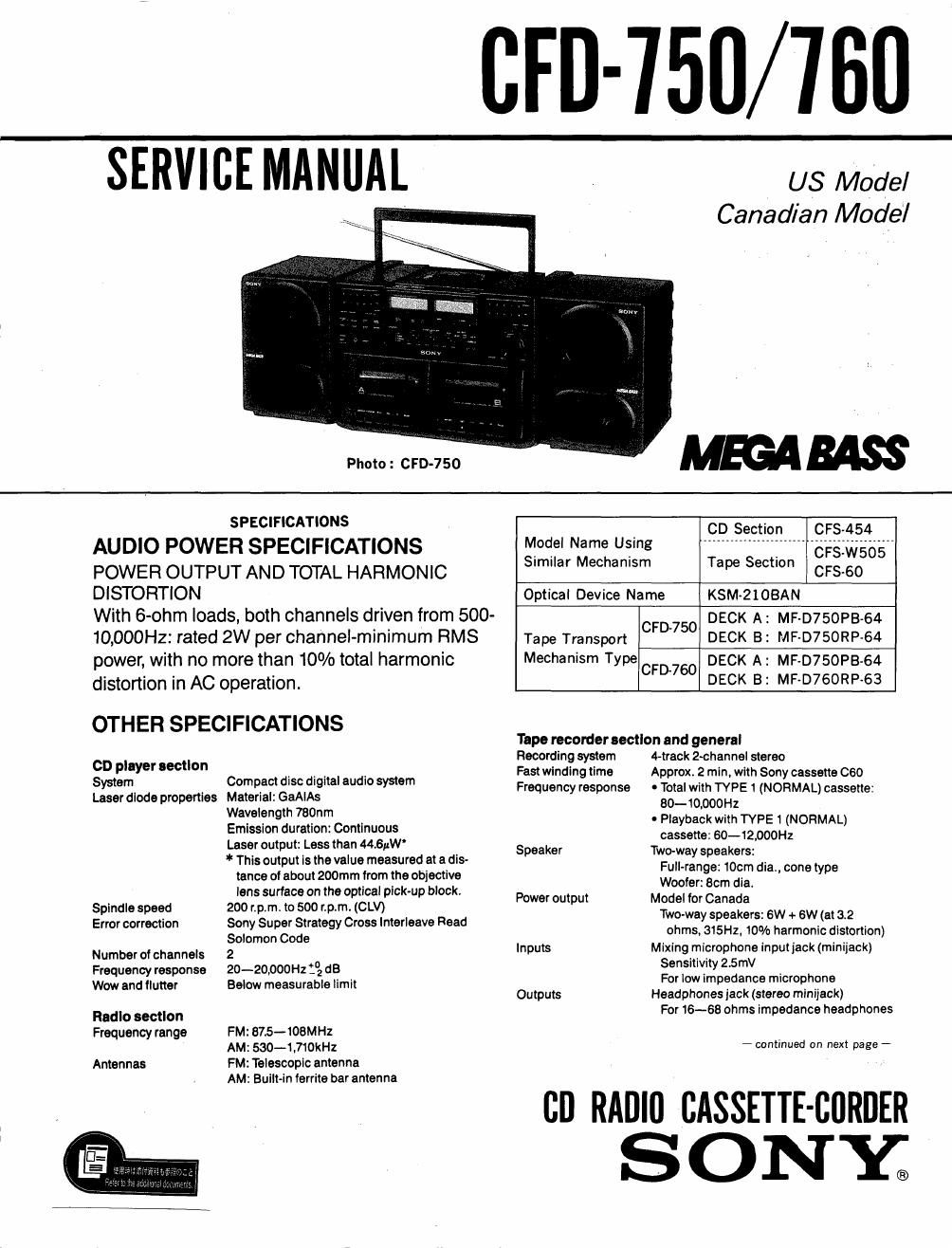

Page 1
CFD-I5II/IBII
SERVICE MANUAL
Photo: CPD-750
US Model
Canadian Model
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DIST ORTION
With G-ohm loads, both channels driven from 500-
10,000Hz: rated 2W per channel-minimum RMS
power, with no more than 10% total harmonic
distortion in AC operation.
OTHER SPECIFICATIONS
CD player section
System Compact disc digital audio system
Laser diode properties Material: GaAlAs
Wavelength 780nm
Emission duration: Continuous
Laser output: Less than 44i6uW'
* This output is the value measured at a dis-
tance of about 200mm from the objective
lens surface on the optical pick-up block.
Spindle speed 200 rpm. to 500 rpm (CLV)
Error correction Sony Super Strategy Cross Interieave Reed
Solomon Code
Numberolchannels 2
Frequency response 20-20,000Hz 1°; as
We»: and flutter Below measurable limit
Radio section
Frequency range FM: 87.5-1OBMHz
AM: 530-1.710ki-lz
Antennas FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Model Name Using """""""""""""""""""""""
Similar Mechanism Tape Section
CD Section CPS-454
CFS-W505
CFS-60
Optical Device Name KSM-ZIOBAN
Tape Transport
Mechanism Type
DECK A : MFD750PB-64
CFD750 DECK B: MF-D750RP-64
DECK A: MF-D750PB-64
CFD760 DECK B: MF-D760RP-63
Tape recorder section and general
Recording system
Fast winding time
Frequency response
Speaker
Power output
Inputs
Outputs
A-track Zchannel stereo
Approx. 2 min, with Sony cassette 060
- Total with TYPE 1 (NORMAL) cassette:
80~10,000Hz
- Playback with TYPE 1 (NORMAL)
cassette: 60-12,000Hz
Twosway speakers:
Full-range: 10cm dia.. cone type
Woofer: 8cm die.
Model for Canada
Twoway speakers: 6W + SW (at 3.2
ohms, 315Hz, 10% harmonic distortion)
Mixing microphone input jack (minijack)
Sensitivity 2.5mv
For low impedance microphone
Headphones jack (stereo minijack)
For 16~68 ohms impedance headphones
7 continued on next page -
cn RADIII CASSETTE-BORDER
S ON Y;
Page 2
' CFD-750/760
Power requirements 120V AC, 60HZ
DC15V. 10 size D (R20) batteries for CD
radio cassette-comer
DC 4.5V, 3 size AA (FIB) batteries for
clock/timer/memory
Power consumption 25W
Battery lite Batteries for CD radio cassette-comer
7 Recording Playback CD playing
Sony SUM-1 (NS) approx. 9H approx. 4H approx. 1.5H
Sony Alkaline AM 1 (N) approx. 16H approx. 8H approx 4H
Dimensions 896 x 255 x 235mm (wlhld)
(27'l2 x IOIa x 93/; inches)
not incl. projecting parts and controls
Weight Approx. 9.4kg, inclt batteries
(Approx. 20 lb 12 02)
AC power cord (1)
Remote commander (1) (for CPD-760 oniy)
Supplied accessory
Design and specifications subject to change without notice.
SAFETY-RELATED COMPONENT WARN INGI!
COMPONENTS IDENTIFIED BV MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONV PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
TABLE OF CONTENTS
Section Title Page
1. SERVICING NOTES ............................................. 3
2. GENERAL
2.1 Parts Indel-ltification ............................................ 5
3. DIS ASSEMBLY
3-1. Cabinet (Front) 'Assy
3-2. Cabinet (Upper) Assy~~~~
3-3t MD Assy (DECK A)
3-4. MD Assy (DECK B)
4. MECHANICAL ADJUSTMENTS ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 9
5. ELECTRICAL ADJUSTMENTS
5-1. Tape Recorder Section
5-2. Radio Section ~~~~~~~~~~~~~
5_3. CD Section ......................................................... 13
6. DIAGRAMS
6-1. Circuit Board Location
6-2. Block Diagram -Main Section-
6-3t Block Diagram -CD Section- ~~~~~~~~~~~~~~~
6-4. Printed Wiring Board -Main Section-
6-5. Schematic Diagram -Main Section-
6-6. Schematic Diagram -Power Section-
6-7. Schematic Diagram -CD Section-
68. Pristed Wiring Board -CD Section-u
6-9. Schematic Diagram -Tuner Section-
6-10. Semiconductor Lead Layout ~~~~~~~~~~~~~
7. EXPLODED VIEWS
7-1. Cabinet Section ~
7-2. CD Block Assy ~
7-3. Rear Cabinet Section
741. Speaker Box Section
7-5. Optical Block --------------
7-6. Mechanism Section (1)
7-7. Mechanism Section (2)
7-8. Mechanism Section (3)
7_9. Mechanism Section (4) ........... 53
8. ELECTRICAL PARTS LIST ................................. 54
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA secumrer
Les COMPOSANTS IDENTIFIES PAH une MAROUE A
sun Les DIAGRAMMES scHeMArIoues er LA LISTE
Des Pieces sour CHITIQUES POUR LA sécumre
DE FONCTIONNEMENT. NE REMPLACER ces com.
POSANTS oue PAR Des PIECES souv DONT Les
Numenos sonr DONNES DANS ce MANUEL ou
DANS Les SUPPLEMENTS PueLies PAH souv.
