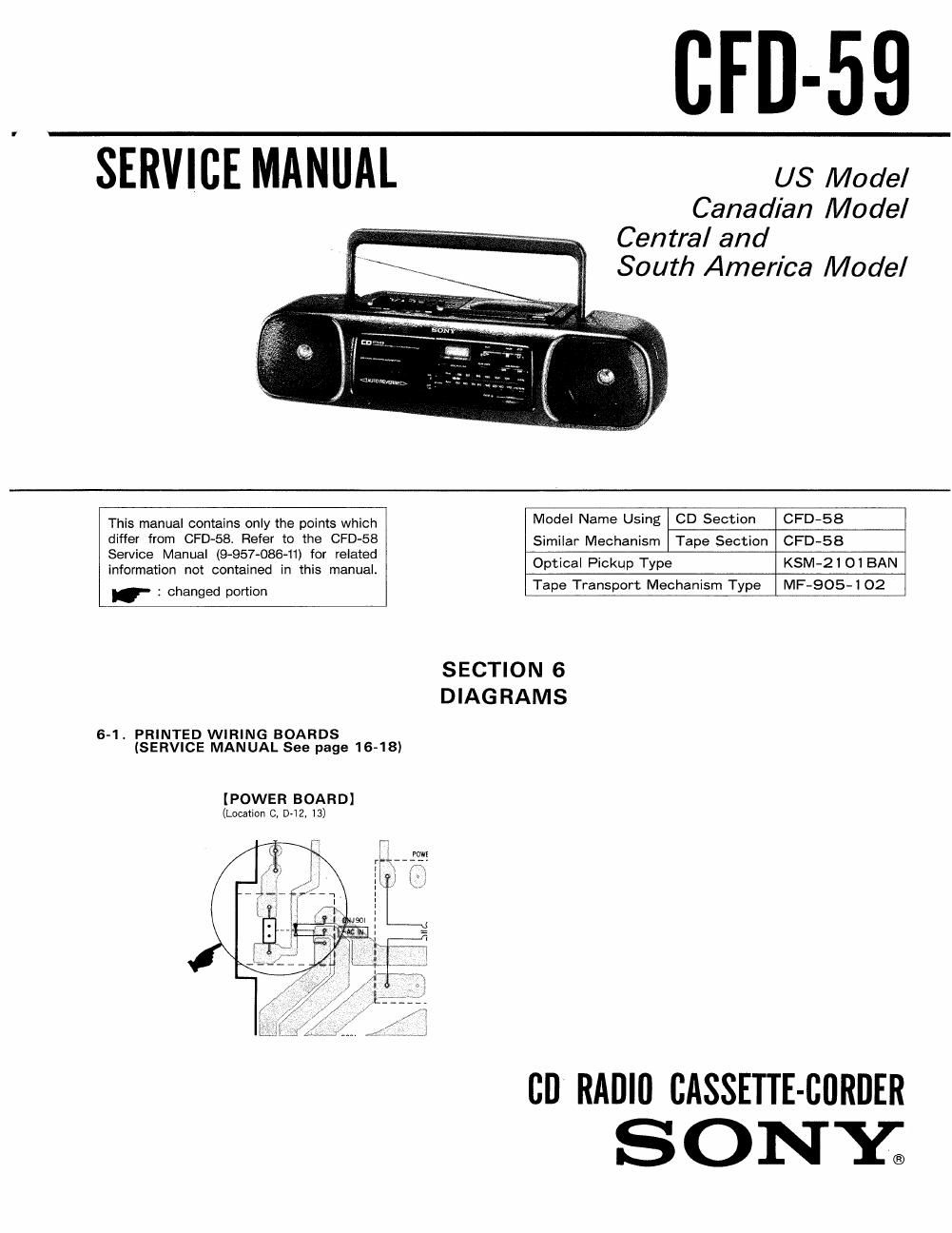

CFD-59

SERVICE MANUAL us Model

Canadian Model
Central and
South America Model

This manual contains only the points which Model Name Using CD Section CFD'SS
differ from CPD-58 Refer to the CPD-58 Similar Mechanism Tape Section CFO-58
SerVIce Manual (Ea-95708641) for related Optical Pickup Type KSM-21 OIBAN

information not contained in this manual.
'- : changed portion Tape Transport Mechanism Type MF-905-l 02

SECTION 6
DIAGRAMS

6-1. PRINTED WIRING BOARDS
(SERVICE MANUAL See page 16-18)

[POWER BOARD]
(Location C, D-IZ, 13)

CD RADIO CASSETTE-BORDER
