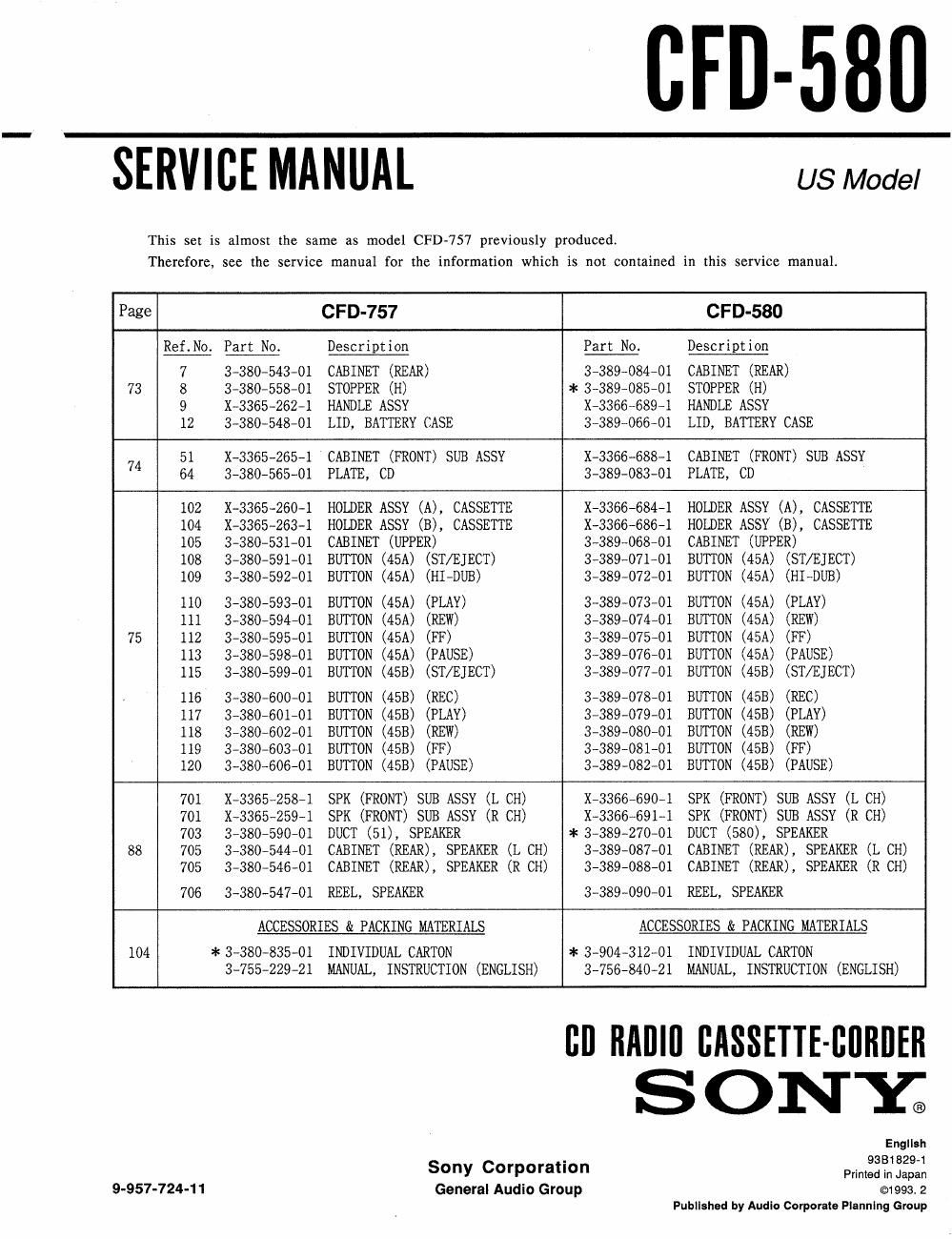

RFD-580

SERVICE MANUAL

This set is almost the same as model CPD-757 previously produced.

US Model

Therefore, see the service manual for the information which is not contained in this service manual.

Page CFD-757 CFO-580
Ref.No. Part No. Description Part No. Description
7 3-380-543-01 CABINET (REAR) 3-389-084-01 CABINET (REAR)
73 8 3-380-558-01 STOPPER (H) :1: 3-389-085-01 STOPPER (H)
9 X-3365-262-l HANDLE ASSY X-3366-689-l HANDLE ASSY
12 3-380-548-01 LID, BATTERY CASE 3-389-066-01 LID, BATTERY CASE
74 51 X-3365-265-1 CABINET (FRONT) SUB ASSY X-3366-688-l CABINET (FRONT) SUB ASSY
64 3-380-565-01 PLATE, CD 3-389-083-01 PLATE, CD
102 X-3365-260-l HOLDER ASSY (A), CASSETTE X-3366-684-1 HOLDER ASSY (A), CASSETTE
104 X-3365-263-l HOLDER ASSY (B), CASSETTE X3366-686-1 HOLDER ASSY (B), CASSETTE
105 3-380-531-01 CABINET (UPPER) 3-389-068-01 CABINET (UPPER)
108 3-380-591-01 BUTTON (45A) (ST/EJECT) 3-389~07l~01 BUTTON (45A) (ST/EJECT)
109 3-3804592-01 BUTTON (45A) (HI-DUB) 3-389-072-01 BUTTON (45A) (HLDUB)
110 3-380-593-01 BUTTON (45A) (PLAY) 3-389-073-01 BUTTON (45A) (PLAY)
111 3-380«594-01 BUTTON (45A) (REW) 3-389-074-01 BUTTON (45A) (NEW)
75 112 3-380-595-01 BUTTON (45A) (FF) 3-389-075-01 BUTTON (45A) (FF)
113 3~380-598-01 BUTTON (45A) (PAUSE) 3~389-076-Ol BUTTON (45A) (PAUSE)
115 3-380-599~01 BUTTON (458) (ST/EJECT) 3-389-077-01 BUTTON (45B) (ST/EJECT)
116 3-380-600-01 BUTTON (45B) (REC) 3-389-078-01 BUTTON (45B) (REC)
117 3-380A601-01 BUTTON (4513) (PLAY) 3389-079-01 BUTTON (45B) (PLAY)
118 3-380-602-01 BUTTON (45B) (REW) 3-389-080-01 BUTTON (45B) (REW)
119 3-380-603-01 BUTTON (45B) (FF) 3-389-081-01 BUTTON (453) (PP)
120 3-380w606-01 BUTTON (4513) (PAUSE) 3-389-082-01 BUTTON (45B) (PAUSE)
701 X-3365-258-1 SPK (FRONT) SUB ASSY (L CH) X-3366-690-l SPK (FRONT) SUB ASSY (L CH)
701 X~3365-259-l SPK (FRONT) SUB ASSY (R CH) X~3366-69l~l SPK (FRONT) SUB ASSY (R CH)
703 3-380-590-01 DUCT (51), SPEAKER =1: 34389-270-01 DUCT (580), SPEAKER
88 705 3-380-544-01 CABINET (REAR), SPEAKER (L CH) 3-389-087-01 CABINET (REAR), SPEAKER (L CH)
705 3-380-546-01 CABINET (REAR), SPEAKER (R CH) 3-389-088-01 CABINET (REAR), SPEAKER (R CH)
706 3~380-547-Ol REEL, SPEAKER 3-389~090-01 REEL, SPEAKER
ACCESSORIES & PACKING MATERIALS ACCESSORIES & PACKING MATERIALS
104 =1: 3-380-835-01 INDIVIDUAL CARTON * 3-904-312-01 INDIVIDUAL CARTON
34755-229-21 MANUAL, INSTRUCTION (ENGLISH) 3-756-840-21 MANUAL, INSTRUCTION (ENGLISH)
S ONY;
English
. 93818294
Sony Corporation Primedindapan
9-957-724-11 General Audio Group ©1993. 2

Published by Audio Corporate Planning Group
